Einleitung
If you need to access your laptops touchpad please refer to this guide. This guide does not require any difficult or complicated steps. Do exercise caution before beginning this guide by ensuring that the laptop is unplugged and turned off. To complete the replacement of your touchpad, you will need a plastic opening tool, a Phillips #0 screwdriver, a pair of tweezers, and a plastic scalpel.
-
-
Flip your laptop over and place on a flat surface so you can access the screws on the base cover.
-
Using a Phillips #0 screwdriver, unscrew the five screws on the base cover.
-
-
-

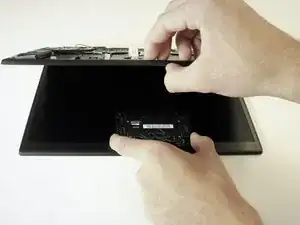

Remove the base cover by inserting a plastic opening tool in between the cover and the rest of the laptop.
-
Once the tool is inserted, slide the tool along the edges of the case and push down on the opening tool to detach the case.
-
-
-
Using tweezers, unplug the battery from the laptops motherboard by pulling on the cable that attaches it.
-
-
-
Using a Phillips #0 screwdriver, remove the four 5.2 mm screws holding the battery in place.
-
-
-

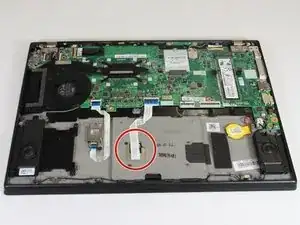

After removing the battery, disconnect the trackpad from the laptop's motherboard
-

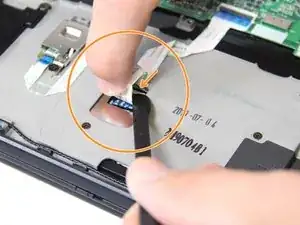

Using a plastic spudger, flip up the black plastic cover to release the cable.
-
-
-

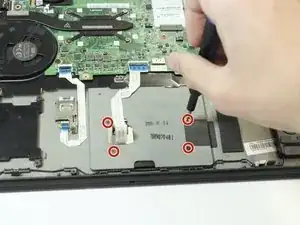

Using a Phillips #0 screwdriver, unscrew the four 2.0 mm screws securing the touchpad to the device.
-
To reassemble your device, follow these instructions in reverse order.
