Lenovo ThinkPad X390 Yoga Display Replacement

Geschrieben von: Andrew Elijah Dezelle
  • Kommentare: 0
Lenovo ThinkPad X390 Yoga Display Replacement

Schwierigkeitsgrad

Moderate

Schritte

5

Zeitaufwand

15 Minuten

Einleitung

This guide will show how to remove the display from the Lenovo ThinkPad X390 Yoga. This can be mildly difficult when using the opening tool and spudger.

  1. xnwhamDkGlyKXQjy

    • Use a Phillips #1 screwdriver to unscrew the eight captive screws from the back of the device.

    • The screws should not be removed from the back panel, so don't try to force them out.

  2. FeHKPMYaSseYOWcS

    • Use the iFixit opening tool to remove the back case by entering the tip of the tool into the seam and prying up.

    • This can be tough so take your time to undo the clips around the perimeter before removing the back cover.

  3. JwMukBgcZP3GOiOd

    • Once the back cover is no longer attached carefully remove it by lifting straight up.

  4. mZEbVXeqi4AUDmYm
    mZEbVXeqi4AUDmYm

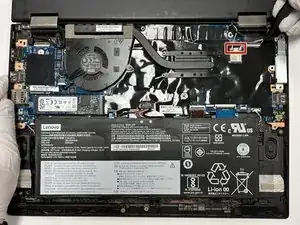

    U6ekfMaIAEAQmkNi

    • Disconnect the display connectors with a spudger or opening tool.

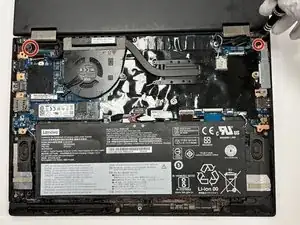

  5. SvsYQY4kmpEcOBjm

    • Loosen the two 5.5mm screws using the Phillips #1 screwdriver.

Abschluss

To reassemble your device, follow these instructions in reverse order.
