Lenovo ThinkPad X390 Yoga SSD Replacement

Geschrieben von: Scott Merchant
  • Kommentare: 0
Lenovo ThinkPad X390 Yoga SSD Replacement

Schwierigkeitsgrad

Moderate

Schritte

5

Zeitaufwand

15 - 30 Minuten

Einleitung

This guide will demonstrate how to remove and replace the SSD in a Lenovo ThinkPad X390 Yoga. The solid-state drive (SSD for short) acts as the main storage for the device. If the SSD is faulty, the device may not boot up, and must be replaced. Also, replacement is needed in order to upgrade an existing SSD to an SSD with more storage capacity. SSD’s may run slower with age, so a replacement can be done to achieve a faster boot time.

Before you begin the guide, be sure to power off your device and unplug it from an external charger.

  1. xnwhamDkGlyKXQjy

    • Use a Phillips #1 screwdriver to unscrew the eight captive screws from the back of the device.

    • The screws should not be removed from the back panel, so don't try to force them out.

  2. FeHKPMYaSseYOWcS

    • Use the iFixit opening tool to remove the back case by entering the tip of the tool into the seam and prying up.

    • This can be tough so take your time to undo the clips around the perimeter before removing the back cover.

  3. JwMukBgcZP3GOiOd

    • Once the back cover is no longer attached carefully remove it by lifting straight up.

  4. ucjLWFDdsvJhTDyv

    • Use the Phillips #1 screwdriver to remove the 4 mm screw holding the SSD in place .

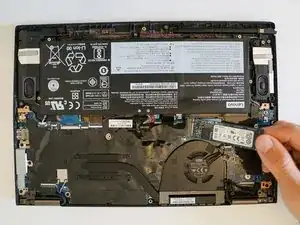

  5. fPo2YQPEUGrLtQXY

    • Pull the SSD out from the connection to remove it.

Abschluss

To reassemble your device, follow these instructions in reverse order.
