Lenovo ThinkPad X390 Yoga Touchpad Replacement

Geschrieben von: Tanner Baine
  • Kommentare: 0
Lenovo ThinkPad X390 Yoga Touchpad Replacement

Schwierigkeitsgrad

Moderate

Schritte

9

Zeitaufwand

40 Minuten - 1 Stunde

Einleitung

This guide will show you how to replace the touchpad of your Lenovo ThinkPad X390 Yoga.

  1. xnwhamDkGlyKXQjy

    • Use a Phillips #1 screwdriver to unscrew the eight captive screws from the back of the device.

    • The screws should not be removed from the back panel, so don't try to force them out.

  2. FeHKPMYaSseYOWcS

    • Use the iFixit opening tool to remove the back case by entering the tip of the tool into the seam and prying up.

    • This can be tough so take your time to undo the clips around the perimeter before removing the back cover.

  3. JwMukBgcZP3GOiOd

    • Once the back cover is no longer attached carefully remove it by lifting straight up.

  4. GwbXLBBR2CKvRkQK

    • Use the spudger to disconnect the battery from the motherboard at the connector socket.

  5. JUEEQT25pyYKwnLQ

    • Use the Phillips #1 screwdriver to remove five 4 mm screws around the battery.

  6. kUtZ2LTAE4NZKtET

    • Lift the battery out of the laptop by lifting up.

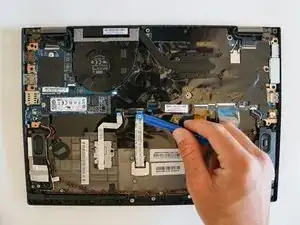

  7. RjT5vSdiIhLB5jNG

    • Disconnect the touchpad ribbon connector from the motherboard using the opening tool.

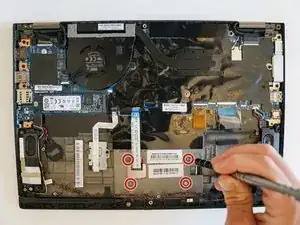

  8. UAItQgMtBnmPksWF

    • Remove the four 4 mm screws using the Phillips #1 screwdriver.

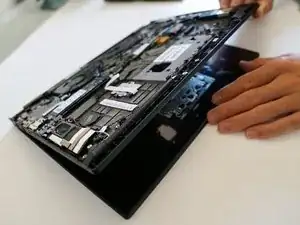

  9. pchW1RZBNIASKLgb

    • Carefully open the laptop and remove the touchpad.

Abschluss

To reassemble your device, follow these instructions in reverse order.
