Lenovo ThinkPad Yoga 14 20FY Keyboard Replacement

Schwierigkeitsgrad

Easy

Schritte

4

Zeitaufwand

5 Minuten

Einleitung

Is your keyboard old, unusuable, or literally unhinged? Try replacing your keyboard by following these steps.

  1. VDuGXKjVkwPeVafq

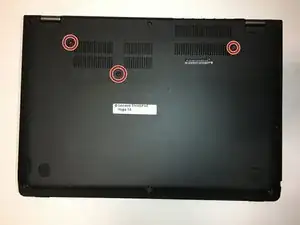

    • Unplug and completely shut down your computer beforehand to reduce the risk of electric shock.

    • Flip the laptop over so you can see the bottom panel.

    • Unscrew the circled screws to detach the keyboard.

  2. ceSFleGCXhTQPtCV
    ceSFleGCXhTQPtCV
    rEQZrCEMrScFXXjK
    MYfDEpPkmRdEP1RU

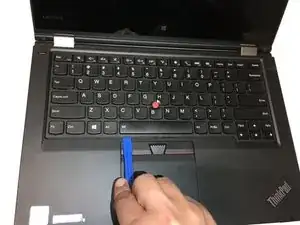

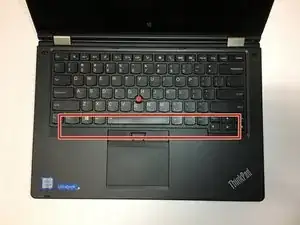

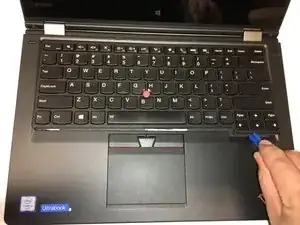

    • Flip the laptop back over and open it normally.

    • Use a plastic opening tool to lift up the keyboard along the bottom edge until it is detached.

  3. DXIbQgBJIoS1YZwG
    DXIbQgBJIoS1YZwG
    XIGSVqOIGCDDWTta

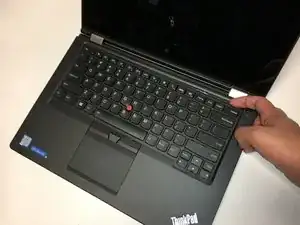

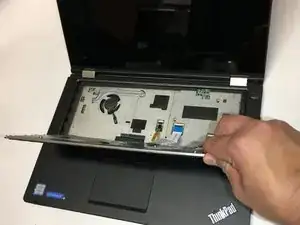

    • Using a finger, push the top of the keyboard out of its holder to completely detach it.

    • Move the keyboard out of the way by rotating the far side of the keyboard towards you.

  4. RjR5dPk3IYMKVU4r
    RjR5dPk3IYMKVU4r
    DKCHvNxXUMWIb2RT

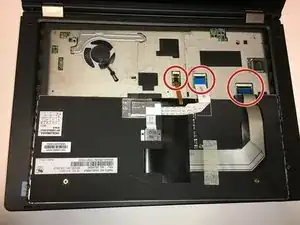

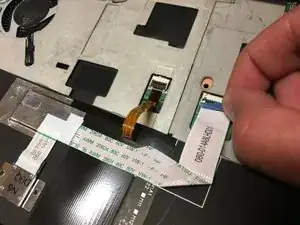

    • Be gentle! These connectors are very small and can easily break off.

    • Lay the keyboard on its front.

    • Disconnect the 3 cables by pulling on the attached tabs.

Abschluss

To reassemble your device, follow these instructions in reverse order.
