Lenovo ThinkPad Yoga 14 20FY RAM Replacement

Geschrieben von: jose aguirre
  • Kommentare: 2
Lenovo ThinkPad Yoga 14 20FY RAM Replacement

Schwierigkeitsgrad

Moderate

Schritte

5

Zeitaufwand

10 Minuten

Einleitung

Has your computer performance diminished? Try replacing the RAM card.

  1. mjDHGxLMWwca32Ir
    mjDHGxLMWwca32Ir
    JDH6PANDqVw6K2ZI

    • Remove the indicated nine M2 x 6 mm nylon-coated screws using a Phillips head screwdriver.

    • The screws do not come all the way out. Do not force them out.

    I must have a similar but different model. 11 screws on this type 20FY.

    curmudgeon44 -

  2. KZcQ3KjocWjJ5roe
    KZcQ3KjocWjJ5roe
    tvtiKqORBAJRoLvP

    • After removing all of the screws, gently lift up on all covers to remove the back plate and reveal the interior of the device.

    The stylus blocks removal, just pull it out. In my case something in vicinity of power plug kept case from opening, have not solved that problem as yet.

    curmudgeon44 -

  3. TxNVNZTXbRWa1atu
    TxNVNZTXbRWa1atu
    Zs2JDQsTvVLUcSna

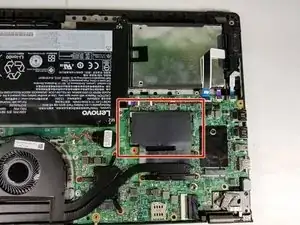

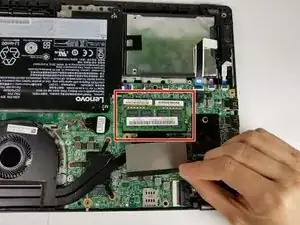

    • The RAM is hidden behind the black piece of plastic. Pull the plastic back.

  4. QHeNsXGBvxNotsgG
    QHeNsXGBvxNotsgG
    4heYBsjSL2u5gJFw
    YZ6aUhPqQWMXSRM3

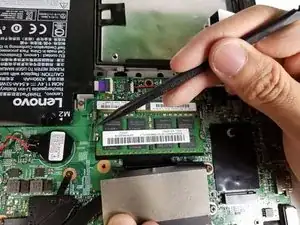

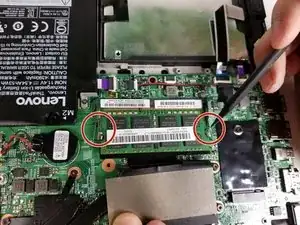

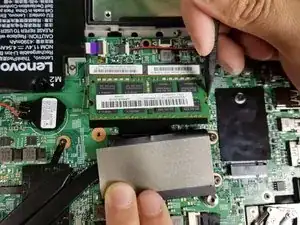

    • The RAM is held in place by two metal pieces on both sides.

    • Use the spudger to push off both metal pieces to release the RAM.

  5. v3hglfaIhkFRn1P2

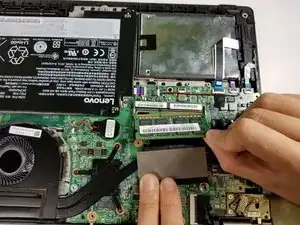

    • Take the ram card out of its slot.

Abschluss

To reassemble your device, follow these instructions in reverse order.
