Lenovo ThinkPad Yoga 370 Screen Replacement

Geschrieben von: Chenoa Begaye
  • Kommentare: 0
Lenovo ThinkPad Yoga 370 Screen Replacement

Schwierigkeitsgrad

Moderate

Schritte

5

Zeitaufwand

20 - 40 Minuten

Einleitung

The screen is a crucial part of a laptop. A screen that is damaged and broken can cause many problems in the display of information. Follow this guide to learn how to replace the screen on a Lenovo Thinkpad Yoga 370.

Before beginning this repair, power off your device and unplug from your power adapter.

  1. ZdgRmVF1Vl4RZ3uX

    • Remove the cover at the bottom of the screen using the Jimmy.

  2. LvdyDg1IJB4iqqmN
    LvdyDg1IJB4iqqmN
    iIreyNVyAEPAktrr

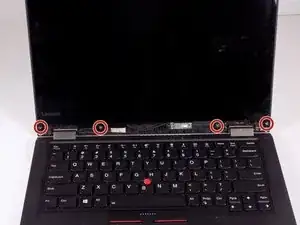

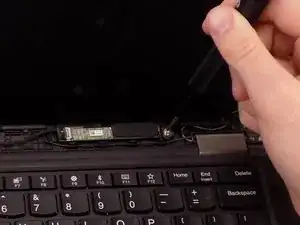

    • Remove the four 4 mm screws along the bottom of the display.

  3. OMnlD5mUVxFkfeqj

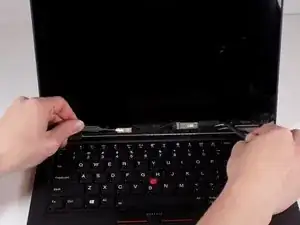

    • Using tweezers, remove the tape from the display cable below the screen.

  4. FfdfgtvEjDEmepUn

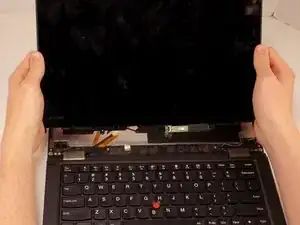

    • Slide the screen downwards towards the keyboard.

    • Lift the screen slowly from the frame when the screen is slid down completely.

    • The screen is still attached to the computer, do not pull away from the laptop frame until a later step.

    • Flip the screen over and lay face down on the keyboard.

  5. oawAGVcyLUkopBtn
    oawAGVcyLUkopBtn
    xN2vyQYWdPU6KhtI
    dZRTZZtPbKFtchUx

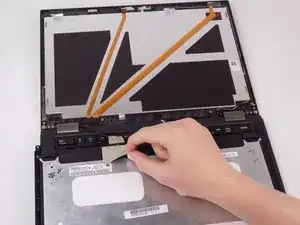

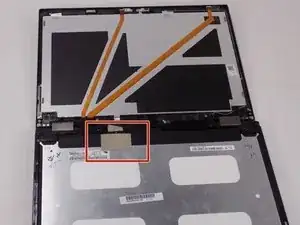

    • Peel the tape off from the back of the screen, connecting the display to the device.

    • Remove the screen.

Abschluss

To reassemble your device, follow these instructions in reverse order.
