How to replace the keyboard in a Lenovo ThinkPad Yoga 2013. This guide will help you to successfully replace your keyboard.
-
-

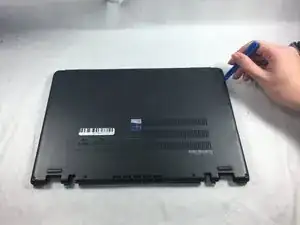

Flip the laptop over so the bottom is facing you.
-

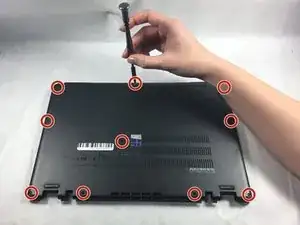

Remove the ten screws using a Phillips #1 screwdriver.
-

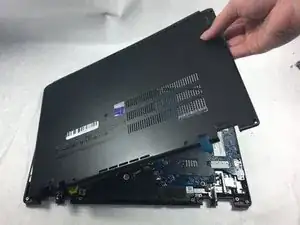

Using the plastic opening tool, pry the bottom cover off the laptop.
-
-
-

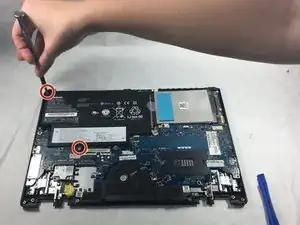

Remove two screws from the battery using a Phillips #1 screwdriver.
-

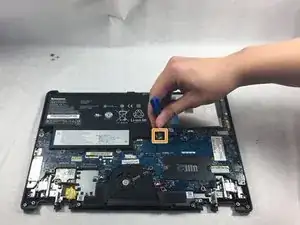

Disconnect the battery connector from the motherboard.
-

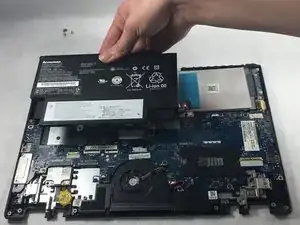

Remove the battery from the laptop.
-
-
-

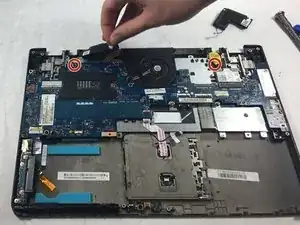

Remove the two screws from the retainer for the ports using a Phillips #1 screwdriver.
-

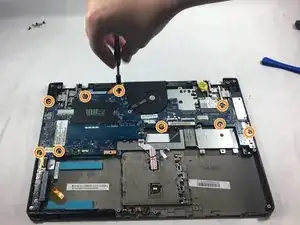

Remove the nine screws from the motherboard using a Phillips #1 screwdriver.
-
Remove the four screws from the fan under the motherboard using a Phillips #1 screwdriver.
-

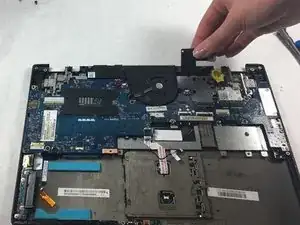

Remove the fan from the motherboard.
-
-
-

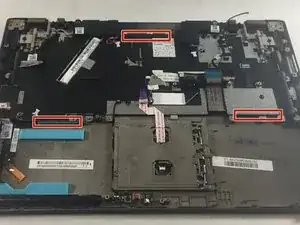

Use a spudger to pry open the keyboard panel.
-
Continue to pry until the panel is loose enough to take off.
-
To reassemble your device, follow these instructions in reverse order.
