Einleitung

  1. cMaaJFEUyysNiTia
    cMaaJFEUyysNiTia
    tXKS5fkdGPEmFJOP
    BgPvxfiDERJcH1ie
    • Flip the laptop over so the bottom is facing you.

    • Remove the ten screws using a Phillips #1 screwdriver.

    • Using the plastic opening tool, pry the bottom cover off the laptop.

  2. YUOuJY3ieEMPCnBL
    YUOuJY3ieEMPCnBL
    NZlmxM4OwapglaMV
    Z1J3peJPQw65oytt
    • Remove two screws from the battery using a Phillips #1 screwdriver.

    • Disconnect the battery connector from the motherboard.

    • Remove the battery from the laptop.

  3. JLNdUIJbE2Wg4SuW
    JLNdUIJbE2Wg4SuW
    bPIPAsZRi2Is2SGS
    tOhP1PEFRoJrYbMJ

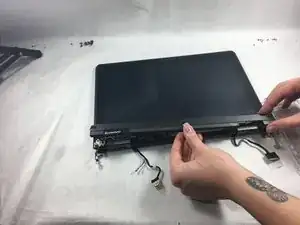

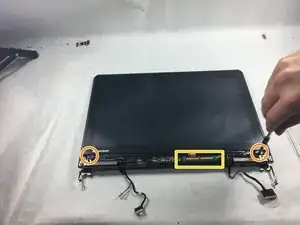

    • Remove two screws under the plastic covers on the front of the screen using a Phillips #0 screwdriver.

    • Pry the plastic cover off with a spudger.

    • Remove the two screws from underneath the cover using a Phillips #0 screwdriver.

    • Detach the screen connector from the rest of the laptop.

  4. VcxysNOQP1AqnZdW

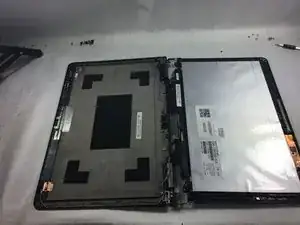

    • Remove the screen from the rest of the laptop.

Abschluss

To reassemble your device, follow these instructions in reverse order.
