Einleitung
Use this guide if your touchpad is unresponsive.
A touchpad is a motion-detecting feature that traces a user’s fingers to match the motion of the cursor on the display screen. In this device, the touchpad is connected to the palm rest, so it can’t be removed seperately.
There are ways to solve this through programs in Windows, use this guide before considering replacement: Touchpad or trackpad is not working - ThinkPad - Lenovo Support US
There is also an option to disable your touchpad as a way to bypass your issue: How to enable or disable ThinkPad Touchpad - Windows 7, 10 - Lenovo Support US
-
-
Flip the laptop upside down and locate the battery latches under the battery.
-
Place your thumbs on both latches and push the latch inwards.
-
With your thumbs still on the latches, slide the battery out of the laptop.
-
-
-
Using the Phillips #0 screwdriver, remove the three 4 mm screws that are securing the bottom cover.
-
Remove the backplate carefully, making sure not to bend the cover.
-
-
-

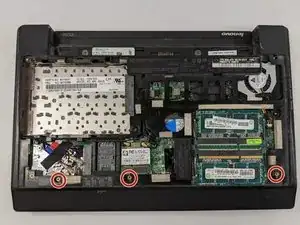

Using the Phillips #0 screwdriver, remove the two 4 mm retaining screws located on the battery slot.
-
-
-
Flip the laptop back over, showing the keyboard.
-

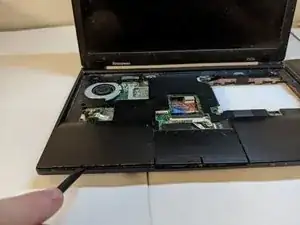

Using an opening tool, pry open the keyboard starting from the top left. Work your way around until you are able to loosely lift the keyboard.
-
-
-

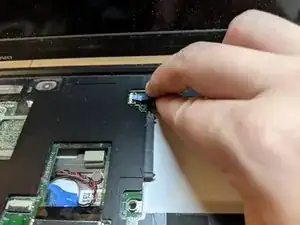

Pull on the black tabs above both ribbon wires using tweezers upwards.
-
Remove both ribbon wires.
-
Remove the keyboard from the laptop.
-
-
-
Flip the laptop over to the front.
-

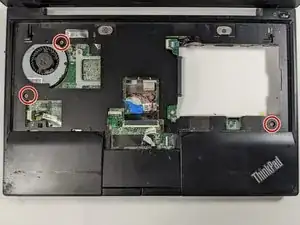

Using the same Phillips #1 screwdriver, remove three 4 mm screws.
-
-
-

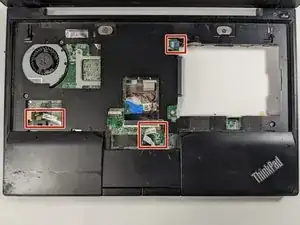

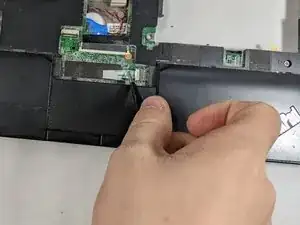

Pull up on the small black tabs using precision tweezers for the two ribbon wires.
-

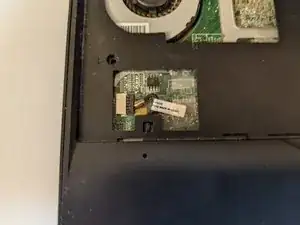

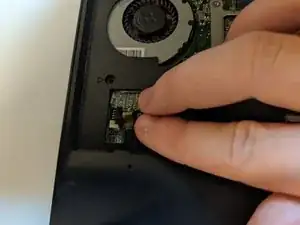

Disconnect the two ribbon wires.
-
To reassemble your device, follow these instructions in reverse order.
