Lenovo Thinkpad E540 Display Screen Replacement

Geschrieben von: Timothy Sumner
  • Kommentare: 0
Lenovo Thinkpad E540 Display Screen Replacement

Schwierigkeitsgrad

Easy

Schritte

7

Zeitaufwand

10 - 20 Minuten

Einleitung

A guide on how to replace the scree on a Lenovo ThinkPad E540 laptop.

  1. Evmt1fQyhGGdWmfb
    Evmt1fQyhGGdWmfb
    DMANpbSJVTKEjgdQ

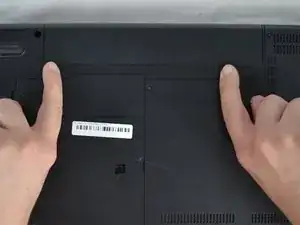

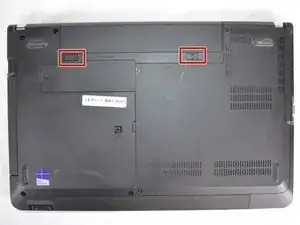

    • Push the battery release switches away from each other.

  2. 2dNQoAkYEOKy43pf

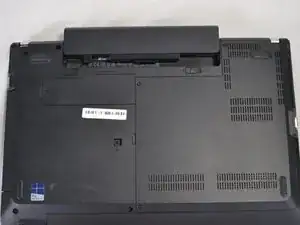

    • Remove the battery.

  3. FkFHRDHnSLbRTU5T

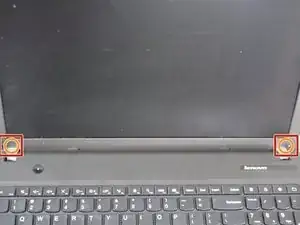

    • Remove the two stickers at the bottom corners for the screen to reveal the screws.

    • Remove the two 1mm Phillips #00 screws from underneath the stickers.

  4. PgXjmBI3IiojQnIP

    • Slide your finger underneath the plastic and pry gently to release the clips around the display bezel.

  5. IRXdopZQKW2YPuRp

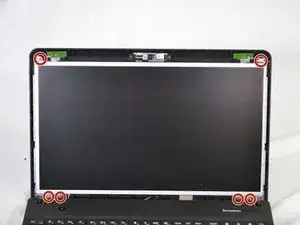

    • Remove the six 1.3mm Phillips #00 screws from around the display.

  6. vqDkbiPjjcuqVYlr

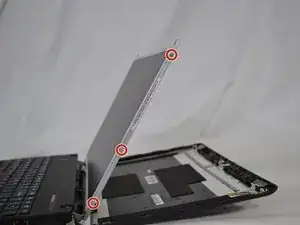

    • Remove the plastic covering and six 1.3mm Phillips #00 screws from both sides of the display.

  7. cNhqhOQLe4tOcJ4P
    cNhqhOQLe4tOcJ4P
    bhbyeauDlXQtMQ3V
    HByGUZDrE2ghTpNQ

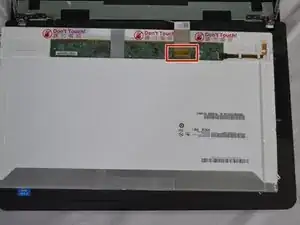

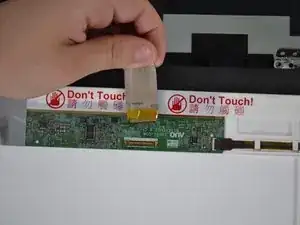

    • Remove the orange tape covering the display connector.

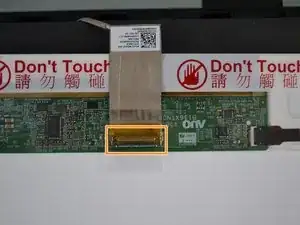

    • Disconnect the display's ribbon cable by lifting up the latch and flipping it over 180 degrees.

Abschluss

To reassemble your device, follow these instructions in reverse order.
