Lenovo Thinkpad E540 Hard Drive Replacement

Geschrieben von: Timothy Sumner
  • Kommentare: 2
Lenovo Thinkpad E540 Hard Drive Replacement

Schwierigkeitsgrad

Easy

Schritte

7

Zeitaufwand

5 - 10 Minuten

Einleitung

Follow this guide to replace the hard drive on your Lenovo ThinkPad E540 laptop.

  1. Evmt1fQyhGGdWmfb
    Evmt1fQyhGGdWmfb
    DMANpbSJVTKEjgdQ

    • Push the battery release switches away from each other.

  2. 2dNQoAkYEOKy43pf

    • Remove the battery.

  3. 5MiQUG1KTBQcZb1j

    • Remove the three 1.2mm Phillips #00 screws from the bottom panel.

    For me a Phillips #1 was the first bit with a tight fit (testet PH #00, #0, #1).

    Till -

  4. p25JHtwVxrRPsQuu

    • Use a plastic opening tool to pry off the bottom panel.

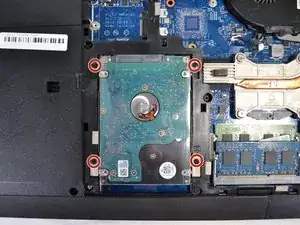

  5. plTFGJFeoELZgEFg

    • Remove the four 1.2mm Phillips #0 screws from the hard drive.

  6. ETE4PPTO56oIMZmC

    • Pull up on the hard drive to allow for removal.

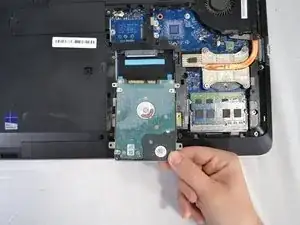

  7. ZsUvUAwHT4isqjdX

    • Disconnect the hard drive and pull out to remove.

Abschluss

To reassemble your device, follow these instructions in reverse order.

Tinte & Feder

Timothy Sumner

Mitglied seit: 14/02/18

1010 Reputation

Ein Kommentar

Thanks for this invaluable and easy guide.

Is it possible to replace the hdd with an ssd for this model? If so, which ssd would fit this laptop’s hdd socket?

Many thanks in advance.

SKP -
