Lenovo Thinkpad E540 Keyboard Replacement

Geschrieben von: Timothy Sumner
  • Kommentare: 4
Lenovo Thinkpad E540 Keyboard Replacement

Schwierigkeitsgrad

Moderate

Schritte

6

Zeitaufwand

5 - 15 Minuten

Einleitung

A guide on how to replace the individual keys on a Lenovo ThinkPad E540 laptop.

  1. Evmt1fQyhGGdWmfb
    Evmt1fQyhGGdWmfb
    DMANpbSJVTKEjgdQ

    • Push the battery release switches away from each other.

  2. 2dNQoAkYEOKy43pf

    • Remove the battery.

  3. 6qCnZRZsLyl2hgWO

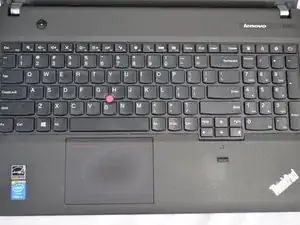

    • Push the keyboard forward towards the display to create a gap above the trackpad.

  4. FAhccsrmwhTDJCJP

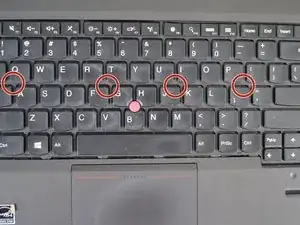

    • Remove the four 1mm Phillips #00 screws found hidden underneath the keys.

  5. whbOfx5jRfoWkGNx

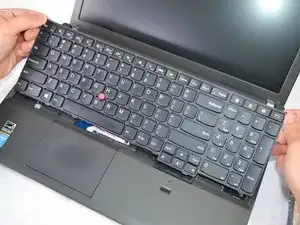

    • Tilt the keyboard forward from the top and lift gently.

    • Dont pull too far because there is a cable attached to the back.

  6. BfYLlTM1qpnsUdTi
    BfYLlTM1qpnsUdTi
    GPcG2TtoTSXAX3oY

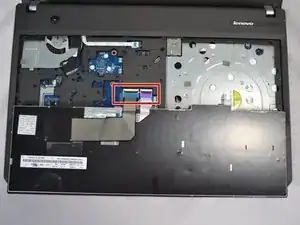

    • Use a spudger to lift the black latch on the ZIF connectors.

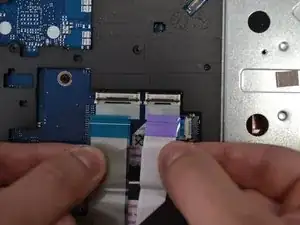

    • Remove the blue and purple ribbon cables from the ZIF connectors.

Abschluss

To reassemble your device, follow these instructions in reverse order.

Tinte & Feder

Timothy Sumner

Mitglied seit: 14/02/18

1010 Reputation

4 Kommentare

Thank you for posting this guide. I was able to comfortably replace my keyboard on a Lenovo E540 Thinkpad after I spilled a full glass of water on it. I was able to get a replacement keyboard via AliExpress for $25.84USD -- I initially considered buying a replacement from eBay but the keyboard prices were half of the laptop's current value, which is a bit silly.

Thank you Timothy Sumner, you’re a legend! :)

Zeeshan Muhammad -

These instructions are miserably wrong for the model E540 20C6-008SUS. The keyboard is completely covered by a plastic grid that fills the large gaps between the keys. The keyboard hold-down screws are hidden by this grid. YOUR OWN PHOTO CLEARLY SHOWS THIS ! Furthermore, the keyboard can not be pushed “forward towards the display to create a gap above the trackpad “ simply because the 4 screws are holding it solidly in place. This plastic grid must be carefully pried up and out to expose the keyboard screws enough to be able to get a screwdriver in position over the screw heads.

Hewey Dewey -

With my edge 540 (submodel unknown) I was able to reach the screws by pushing the screw driver under the plastic grid. It did however slightly scuff up my F key

Dick van Zalinge -

You forgot the latch underneath the main battery.

Moose Technologies -
