Lenovo Thinkpad E540 WiFi Card Replacement

Geschrieben von: Timothy Sumner
  • Kommentare: 3
Lenovo Thinkpad E540 WiFi Card Replacement

Schwierigkeitsgrad

Easy

Schritte

6

Zeitaufwand

5 - 10 Minuten

Einleitung

Are you experiencing difficulty connecting to the internet? Try replacing your WiFi card. This guide can help.

  1. Evmt1fQyhGGdWmfb
    Evmt1fQyhGGdWmfb
    DMANpbSJVTKEjgdQ

    • Push the battery release switches away from each other.

  2. 2dNQoAkYEOKy43pf

    • Remove the battery.

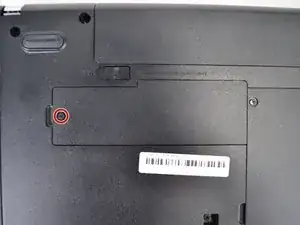

  3. OnXq23ARSlL1BNie

    • Remove the single 1mm Phillips #0 screw holding the small plastic panel in place.

    For me a Phillips #1 was the first bit with a tight fit (testet PH #00, #0, #1).

    Till -

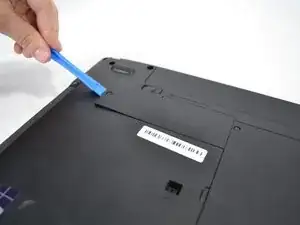

  4. jCN5n6eJrQIBb6ld

    • Use a plastic opening tool to remove panel.

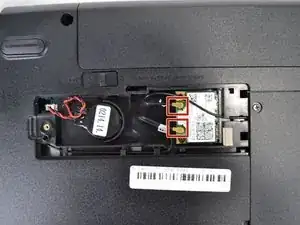

  5. bIHNsEZCTvbmXNqp
    bIHNsEZCTvbmXNqp

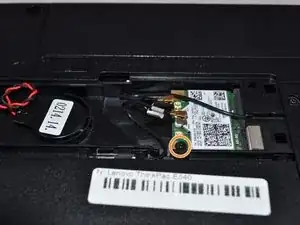

    KPlusXGwWYJukCK4

    • Disconnect the two antenna cables from the wifi card.

    • Remove the single 1mm Phillips #0 screw from the wifi card.

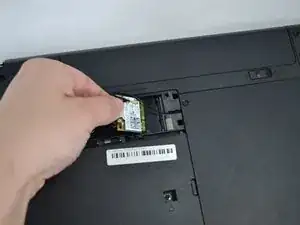

  6. SbWEunHnVIuyA4JW

    • Remove the wifi card by sliding it out.

Abschluss

To reassemble your device, follow these instructions in reverse order.

Tinte & Feder

Timothy Sumner

Mitglied seit: 14/02/18

1010 Reputation

2 Kommentare

Pictures show battery is still connected to laptop.

Monte Christo -

There appear to be several different wifi cards available, with different PN numbers. Is it necessary to replace with the exact same PN number? Can these wifi cards be upgraded?

Thomas -
