Lenovo Thinkpad Edge E40 RAM Replacement

Schwierigkeitsgrad

Easy

Schritte

5

Zeitaufwand

5 - 15 Minuten

Einleitung

  1. 2eDdPXRLdiAjjyk6

    • Flip your laptop over.

    • Unplug all cables from the computer. If you're just swapping the battery, you can leave the power cord plugged in.

  2. GBFqkNmdkxnvKcXR

    • Pull the locking tab on the battery towards the unlock position.

    • Pull the battery out of the socket.

  3. fyBGbbX1WXIyYJF2

    • Loosen the following five screws:

    • 5 Phillips #0 screws

    • 1 recessed Phillips #0 screw

    • These screws do not come out all the way, and need to be un-tightened a lot more than you might think.

  4. R5vbjfqdJiOcepD5

    • Pull up on the front cover from the left and right sides.

    • Do not force the cover off the laptop. If it does not want to come out, undo the screws a bit more.

  5. oCL6xxPtMHb4MiEo
    oCL6xxPtMHb4MiEo
    WRdmBMCJDTADD6uT

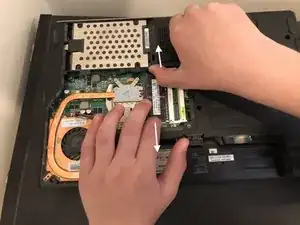

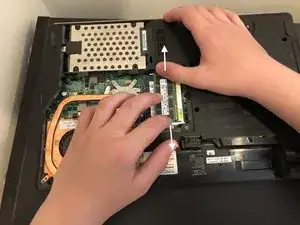

    • Pull the two tabs on the sides of the RAM.

    • Repeat on the second stick.

    • Do not touch the gold contacts on the RAM, because that could easily damage the RAM.

Abschluss

To reassemble your device, follow these instructions in reverse order.
