Einleitung

  1. FhIjtder4IJGtgs3
    • First, flip the laptop over as shown in the photo.

    • Make sure device is fully powered down before removing battery.

  2. yLqLQIJIr54BOZ3A
    • Below the battery are two small tabs. These function as a lock for the battery.

    • Push the tabs towards each other to release the battery.

  3. D1gbmE2Cs2AcMv3u
    • Remove the battery from the device.

  4. qy1ZVDaX32ORvNPg
    • Using a Phillips screwdriver, remove the four screws around the edges of the rectangular panel.

    • It is recommend that you fully remove the screws and place them in a secure location.

    • Make sure to use the appropriate sized screwdriver. The wrong size can cause damage to the screws or screwdriver.

  5. fstxwlvwbPoyiEhS
    fstxwlvwbPoyiEhS
    2SBBYpTegMEqulWw
    • Once all the screws are removed, gently slide the metal scalp around the edge of the panel to pry it open.

    • Slowly lift the left edge side of the panel with your fingers. Once the left side is up, continue lifting the right edge of the panel.

  6. s4GjYAGMcsh1KS4u
    • Remove the back panel.

    • The back of the laptop will be exposed once the panel is removed.

    • Many of these small components are easily damaged--do not touch anything unless instructed to.

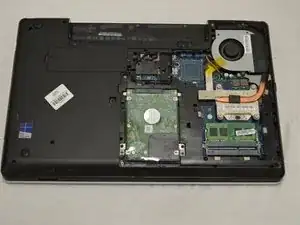

  7. jYOyUkmSAyL1n6jD
    jYOyUkmSAyL1n6jD
    BGqJq2RFVntMIuEs

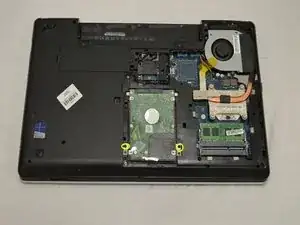

    • After back panel is removed, you can remove the two screws at the bottom of the hard drive using the Phillips #000 screwdriver.

  8. 2iVGrUXwFjG6OApO

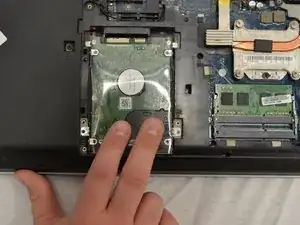

    • After screws are removed, slide the hard drive down to disconnect from motherboard and remove it.

  9. GYyj2TsmUUCFKvZb

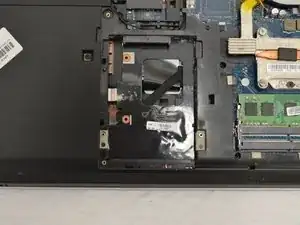

    • Now you have successfully removed the Hard drive.

Abschluss

To reassemble your device, follow these instructions in reverse order.
