Einleitung
In order to access and replace the laptops components, the backplate must be removed. For this guide, you will need a prying tool and a Phillips #1 screwdriver. This process is not difficult but is required for most of this laptops repairs.
Werkzeuge
-
-
Make sure to power down and turn off your device before proceeding with the repair.
-

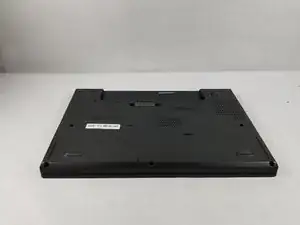

Flip your laptop over so that the backside is facing you.
-
-
-

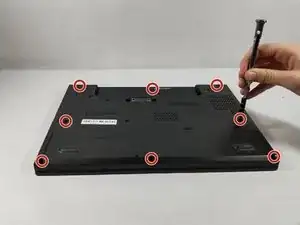

Using a Phillips #1 screwdriver, remove the eight screws securing the backplate.
-
Don’t try to force screws which won't come out. They are held in place by a stopper on the reverse side. This will not prevent you from removing the backplate.
-
-
-

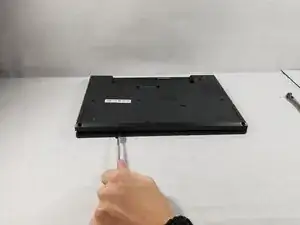

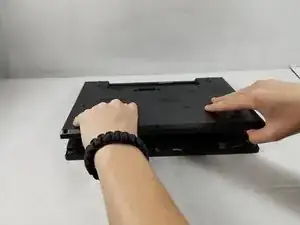

Using the metal spudger, wedge it in the seam where the backplate meets the front plate and run the tool along the seam to separate the backplate.
-

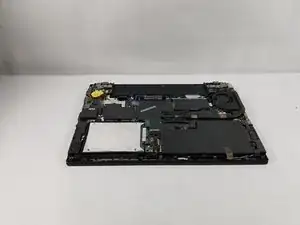

To reassemble your device, follow these instructions in reverse order.
You should also disable the internal battery in the BIOS first too.
