Lenovo Thinkpad T450s Hard Drive Replacement

Geschrieben von: Hayden Hausman
  • Kommentare: 2
Lenovo Thinkpad T450s Hard Drive Replacement

Schwierigkeitsgrad

Moderate

Schritte

7

Zeitaufwand

10 Minuten

Einleitung

If when using your device you notice that programs keep crashing or you run into frequent error messages then it might be time to replace your Hard Drive. In this guide you will finds step by step instructions on how to do so.

  1. N12QED2VZyyJLHCp
    N12QED2VZyyJLHCp
    ulgl5imNIyhxkJuX

    • Turn off device before starting

    • Flip the laptop upside down so you have access to the battery.

  2. L5ruUkKnHhTZjUUY

    • Slide lock button 1 to the unlock position and gently slide away from your body.

  3. aaVRiLamEyYnmyN5
    aaVRiLamEyYnmyN5
    HEmuR1IUTO1UYbuS

    • Slide lock button 2 to the unlock position and continue gently sliding until the battery is removed.

  4. jCrhgV5BCIAqu5ZN
    jCrhgV5BCIAqu5ZN
    ycuaxXWt2rpy1Y1f
    yLtT3dIJ5TKfycCM

    • Flip the device over and lay it down with the underside facing upwards.

    • Unscrew all 8 screws. While they should not come out completely, in some cases, the plastic retaining washers may come off of one or more of the screws, allowing them to come out completely. - should this happen, look for a loose, tiny black plastic washer once the case is open. It's possible, in some cases, to reattach the retaining washer.

  5. HPbXs5FHJ3p3qRXH
    HPbXs5FHJ3p3qRXH
    qZH1OuYwZXVqenMR

    • Pry the bottom from the computer until it pops out.

    • In some cases, the vented side of the case may cling to the heat sink; appears to be adhesive. Take care when separating.

    You don’t unscrew 8th screw a bit to the left from center of base where the battery sits?

    Thank you.

    Robert -

  6. pwDXxfEUNSKLibDp

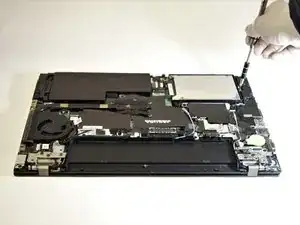

    • Unscrew the single screw that holds the hard drive in place.

  7. 1ecOyExdJ1PMjTyq
    1ecOyExdJ1PMjTyq
    QDVJLJiqOIxYiKLc

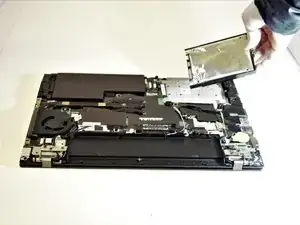

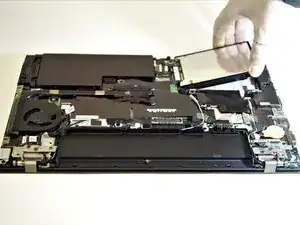

    • Gently pull the hard drive to the right side and out of the socket that holds it in place.

    • Gently remove the plastic housing and foil shield. You might need these for the replacement drive.

Abschluss

To reassemble your device, follow these instructions in reverse order.

Tinte & Feder

Hayden Hausman

Mitglied seit: 17/01/19

598 Reputation

Ein Kommentar

I think the built-in battery should be temporarily disabled from the BIOS before opening up the T450s:

Before replacing any FRU, ensure that you have disabled the built-in battery by doing the following:

1. Disconnect the ac power adapter and all cables from the computer.

2. Restart the computer. When the ThinkPad logo is displayed, press F1 to start the ThinkPad Setup program.

3. Go to Config ➙ Power ➙ Disable built-in battery. [Right arrow to “Power”, down arrow to “Disable built-in battery”]

4. Press Enter. A Setup Confirmation window is displayed.

5. Select Yes in the Setup Confirmation window. The built-in battery is disabled and the computer turns off automatically. Wait three to five minutes to let the computer cool.

If you’ve done it right, pressing the power button will not turn on the laptop now. (Also, remember to take out the SIM card if you have one.) When you’re done, plug it into the AC power supply to re-enable the built-in battery.

(via the T450s service manual)
