Einleitung
This guide will show you how to replace the motherboard in a Lenovo Thinkpad T450s. Ample lighting and storage for small parts recommended.
-
-
Flip the laptop over so that the bottom is facing up.
-
Unlock the battery by sliding the keys outwards. When unlocked, push the battery forwards to remove.
-
-
-

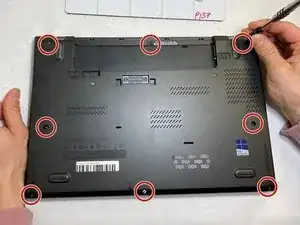

Unscrew all 3.7 mm Phillips #0 screws from the back of the laptop. Half of them will remain attached to the cover.
-
Lift off the back cover.
-
-
-

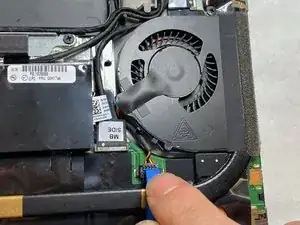

Use a plastic opening tool or a nylon spudger to push the fan's bundled cable connector free.
-

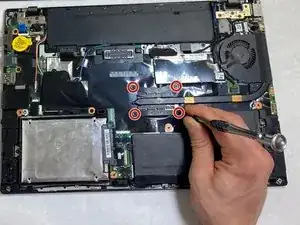

Remove the fan and heat sink assembly from the motherboard.
-
-
-

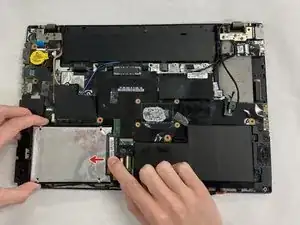

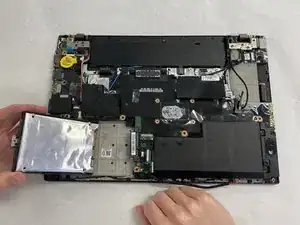

Remove the hard drive from the motherboard's by gently pulling it out and up at the same time.
-
-
-

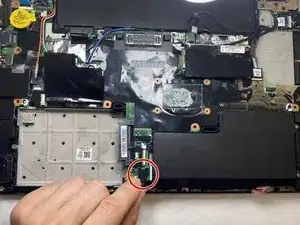

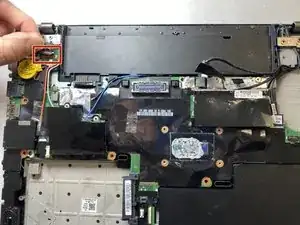

Unplug the cable that attaches the polymer battery to the motherboard by pulling it out carefully.
-
-
-

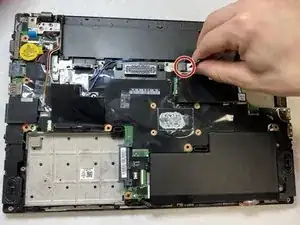

Remove the ribbon cable attached to the the battery case carefully by pulling the cable up and out.
-
-
-

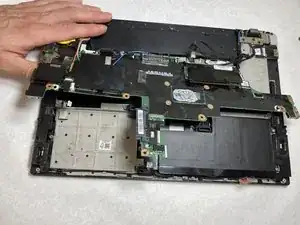

Remove the motherboard from the case. If the motherboard does not come off the case or feels stuck, make sure that you have removed all the cables prior
-
To reassemble your device, follow these instructions in reverse order.
