Lenovo Thinkpad T450s Screen Display Replacement

Geschrieben von: Hayden Hausman
  • Kommentare: 3
Lenovo Thinkpad T450s Screen Display Replacement

Schwierigkeitsgrad

Moderate

Schritte

5

Zeitaufwand

10 Minuten

Einleitung

If you are having display issues, you may find that you need to replace the screen. You can utilizes this guide to give you step by step instructions on how to replace the screen on your device.

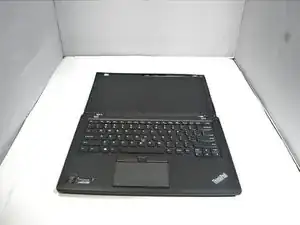

  1. KAUTGcwRCUuWiX4s

    • Open the device so that it is laying flat

    • Turn off device before starting

  2. O32KoGDpCCKW3uUw
    O32KoGDpCCKW3uUw
    MhvYgYWFy5AssIQJ

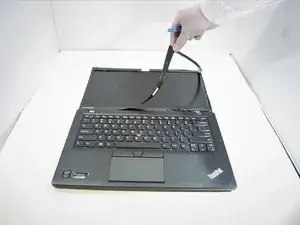

    hRSVtvepHqQ3MpBS

    • Pry the bottom right corner of the screen’s border and gently peel off the adhesive screen cover

    • You will find a sticky adhesive under the screen border. Be gentle when pulling it off and take your time to insure that you do not damage it.

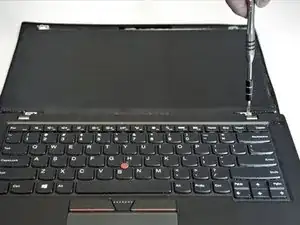

  3. Yh1QRtnrUJ3N5ieQ

    • Unscrew the screws from each corner of the screen

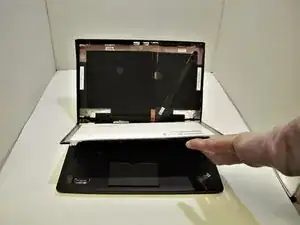

  4. pDq6CVL3Np6jKoGZ

    • Slowly lean the computer forward so that the screen gently falls into your hand

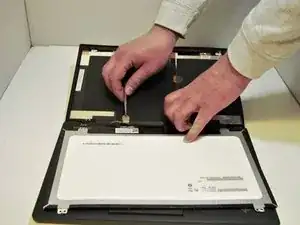

  5. UpfBFMxk2YGZ2rUD
    UpfBFMxk2YGZ2rUD

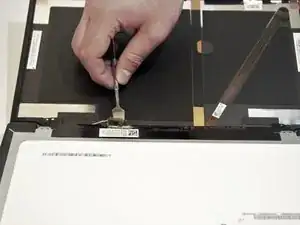

    lAikCoKmTwQJOSmD

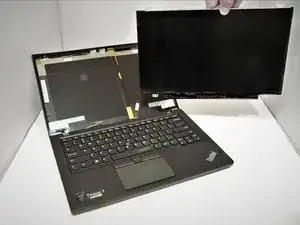

    MrF6KlSeIkcBX6RV

    • Unplug the cord that connects the screen to the rest of the computer

    • Carefully use a metal prying tool to disconnect the two metal prong ends underneath the tape.

Abschluss

To reassemble your device, follow these instructions in reverse order.

Tinte & Feder

Hayden Hausman

Mitglied seit: 17/01/19

598 Reputation

3 Kommentare

there is a step where you remove a simple harness which requires a spudger to de-clip it from the main frame of the laptop, but I gotta say that this walkthrough REALLY was the big difference maker for me in feeling like I could do this job. THANK YOU!!!!!

Geoff Kennedy -

Correct you are... it important to point that because you can damage it with too much presure trying to get the screen out. Cause I was like, hold up! My screen didnt just flop out like his after removing the four screws that held the screen in place. Luckily, while applying lite pressure trying to get the screen out, the plastic frame popped apart, and I was like okay! Ole boy didnt mention this. So yeah. Please remove that plastic frame before you remove the screen.

Uno!

Alvin Thomas -

Just confirming the missing step: it happens after the unscrewing. Thanks.

Ben Moran -
