Lenovo Thinkpad T450s Trackpad Replacement

Geschrieben von: Nathan Morgan
  • Kommentare: 8
Lenovo Thinkpad T450s Trackpad Replacement

Schwierigkeitsgrad

Moderate

Schritte

11

Zeitaufwand

30 Minuten

Einleitung

Overtime, the trackpad is a component that is likely to fail. If the mouse isn’t properly tracking movements or if the mouse isn’t moving at all, your trackpad may need to be replaced. If you have noticed issues while using your trackpad or you simply want to replace it, this guide will lay out how to remove and replace it step by step.

  1. so6jGP6v1kMEv3Pv

    • Remove the battery by pulling on the two sliding buttons next to the battery.

  2. EnXj3qSCu5LLQDTt

    • Using the Phillips #0 screwdriver, remove the seven 5mm screws from the back cover and remove the back cover.

  3. 2FAOErMkjZirMDi3
    2FAOErMkjZirMDi3
    FFCQqehuNU4mASEM

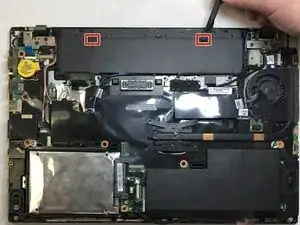

    • Remove the two rubber stoppers from where the battery previously was.

    I couldn’t get the rubber plugs out with them disintegrating and don’t understand the value in removing them. I was able to complete the swap successfully without removing them.

    Jay Baum -

  4. EXKvPAky4Ep4BUPD
    EXKvPAky4Ep4BUPD
    dnrAbVpMiZlrneWF
    tXvTTXbEGcWigJSU

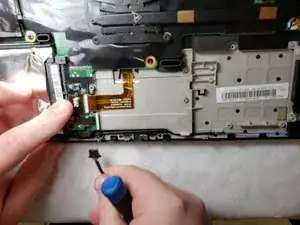

    • Using the Phillips #0 screwdriver, remove the three 5mm screws around the battery.

    • Unplug and remove the battery.

  5. xGvfgDDVivTI1yEI
    xGvfgDDVivTI1yEI
    ckqiGDYXa3GhNNnc
    aVOnJAVMfamEJ21W

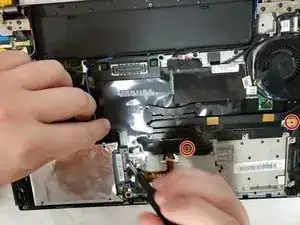

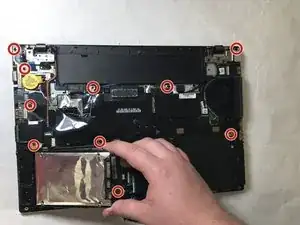

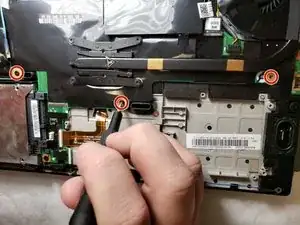

    • Remove the ten 5mm screws holding down the motherboard using the Phillips #0 screwdriver.

    Not quite that many screws. The two at the top aren’t on the motherboard, so leave them in place. Two on the sides (one below the fan, one opposite, just above the hard drive), are case screws that were removed in step 2.

    Jay Baum -

  6. FMj3bHsEAjY3MuMy

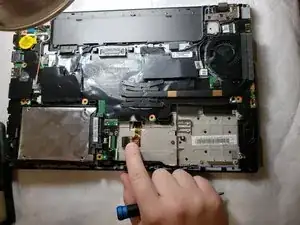

    • Remove the flat flex cable that connects the touchpad to the laptop.

  7. vOpcB2Bg1AjGntKs
    vOpcB2Bg1AjGntKs
    wKadGDV5mknvQZNG

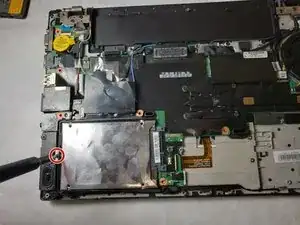

    • Use the Phillips #0 screwdriver to remove the single screw holding the hard drive.

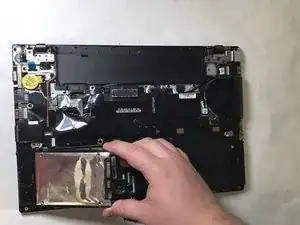

    • Remove the hard drive from the device.

  8. nJRu6Uul6wVIqhNK

    • Using the Phillips #0 screwdriver, remove the two 5mm screws that connects the toughpad to the computer.

  9. D2qUauSAQLYRVVgG

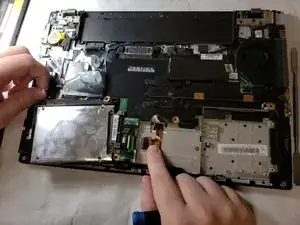

    • Remove the cable in the left hand of this picture that connects the motherboard to hard drive.

    This connects the motherboard to the *Touchpad*, not the hard drive. But yes, disconnect it.

    Jay Baum -

    Step 9a, remove the motherboard. I couldn’t get it all the way out, but I was able to lift it enough to expose the screws in the next step. Be careful doing this, though, as you will be bending the motherboard a little and don’t want it to crack. I don’t think I missed any screws, but there seemed to be some tape and wires that would have needed to be disconnected to get the motherboard the rest of the way out.

    Jay Baum -

  10. MAn1sfwGNNKHIZoM

    • Using the Phillips #0 screwdriver, remove the the two 5mm screws in this image and then remove the glue flex cable being held.

    Wrong two screws. Remove the two silver screws just left of the circled post (right of the hard drive well, in a hole punched through the black plastic). As mentioned above, I couldn’t remove the motherboard, but I was able to lift it enough to expose the screws and attack them at an angle.

    Also, you may not need to remove the ribbon cable. I didn’t buy a new one and reused the old one without removing it. Disconnect it from the touchpad by pulling the black ribbon clamp down, toward the ribbon. This is similar to the connection to the motherboard at the other end of the cable.

    Jay Baum -

  11. uCjUHPVXmWB4RPb4

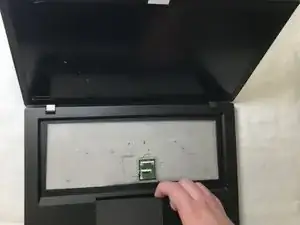

    • Flip the laptop and remove the touchpad, it will pop right out.

Abschluss

To reassemble your device, follow these instructions in reverse order.

Tinte & Feder

Nathan Morgan

Mitglied seit: 11/11/19

439 Reputation

3 Kommentare

Hello,

I would like to ask you one thing - do you recall if the TouchPad can be adjusted (position wise) before srewing down? I have this problem where the right side on the TouchPad is too close to the palmrest (between spacebar and the TrackPoint buttons), and when I click the right physical button it collides with it, providing not so great using experience. So I was wondering it is posiible to losen the screws and move it back a little.

Is it possible? Thanks in advance for answear.

Adrian Wiechnik -

Do I have to reinstall drivers after this? I replaced the touchpad but now two fingers scrolling is not working. Any ideas?

Manuel Amaro -

Do I have to remove the keyboard to replace the touchpad for thinkpad t450?

It does not seem necessary when following the instructions above!

TheTruthWillSetYouFree -
