Lenovo Thinkpad Tablet 1838 Camera Replacement

Geschrieben von: Juan Rojo
  • Kommentare: 0
Lenovo Thinkpad Tablet 1838 Camera Replacement

Schwierigkeitsgrad

Easy

Schritte

5

Zeitaufwand

5 - 10 Minuten

Einleitung

Follow this guide to successfully replace the ribbon cable and camera for the Lenovo ThinkPad Tablet 1838.

  1. Ov6EQhBRbNpXHXVO

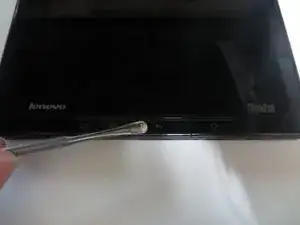

    • To access the camera, remove the button covers by prying them off.

  2. rSj5hteFdLdfEBpw

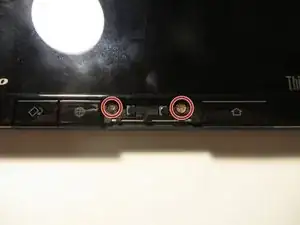

    • After removing the buttons, remove the two screws marked.

  3. lQWpRZvaxVEWvTjf

    • Carefully pry off the outer perimeter of the tablet using a plastic opening tool.

  4. RceYPvffM5LfPugf
    RceYPvffM5LfPugf
    IhAkVoPuWaHEPhnW

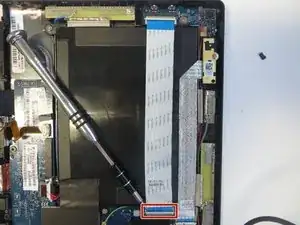

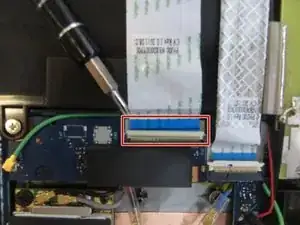

    • Lift the tab located on the back and slide it out to remove the ribbon cable.

    • Only the back side of the cable has been removed—the other can remain connected.

  5. bVnDQPdaQ2xSkmyN
    bVnDQPdaQ2xSkmyN
    hwLf64hbNlxrUixI
    dB4sDWS3aUov6C5n

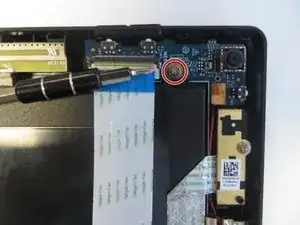

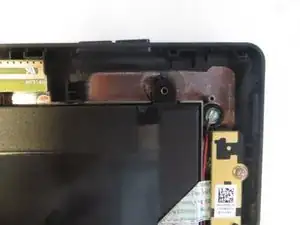

    • Remove the marked screw and lift out the entire camera assembly.

Abschluss

To reassemble your device, follow these instructions in reverse order.
