Einleitung

If your Lenovo Thinkpad X1 Carbon 4th Generation is experiencing black screens or going blank randomly, use this guide to replace the screen (also known as the display).

The screen uses a ribbon cable to send the information to the motherboard. A loose ribbon cable connection will cause the same issues like a broken screen.

Before using this guide, inspect the ribbon cable connection for a loose or non-existent connection, which has the possibility of making the screen dysfunctional. Be sure to fully reassemble the computer before testing the screen.

Before beginning, make sure to power off your computer completely and disconnect from any external power source.

  1. EWEGftIys6buLGvr
    EWEGftIys6buLGvr
    kGOQlRdHl6esB6xb

    • Unscrew the nine captive screws on the bottom cover of the laptop using a Phillips #1 screwdriver.

    • The screws do not fully come out of the back cover, so there is no need for screw management.

    • There are a few small clips around the edge that you may need to pry at to free them. An opening pick may be helpful for this process.

  2. SWxqHmFIlAVCASY6

    • Lift the back cover up and off of the computer.

  3. qMANISWhPZgOc4mA
    qMANISWhPZgOc4mA
    rVvQ6fijV4pZ1VJq

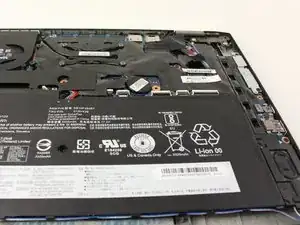

    • Peel back the plastic protective cover above the main battery section to expose the coin-cell's red and black wires.

  4. LVXarCD3aYUtnfGk
    LVXarCD3aYUtnfGk
    AGXGiT5WyZpHltQv

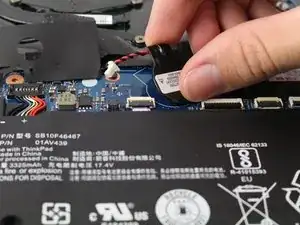

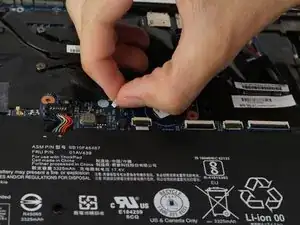

    • Gently unplug the coin-cell wires from the connector by pulling horizontally away from the connector.

    • Lift the coin cell out from the computer.

  5. NBmYc4JWFrrEorei
    NBmYc4JWFrrEorei
    QjJ4k1OJXvmiR2cQ
    GvZiyLeulcPDbWDj

    • Carefully unplug the speaker connector by pulling it towards you.

  6. EvtTvPNvvTRJ1NPq
    EvtTvPNvvTRJ1NPq
    tfXD6fm4sBVdQSbK

    • Remove the two 5 mm screws on each speaker with a Phillips #1 screwdriver.

  7. TYlgL1Jbx4tYDXlD
    TYlgL1Jbx4tYDXlD
    aOp5ybrrMBM3y1gY

    • Unweave the blue and white wires from underneath the plastic tabs connected to the battery.

  8. BSDrNH2qUATJOR5e

    • Lift each speaker up and out from the computer.

  9. J4DFjdMHXLlbK4Dv
    J4DFjdMHXLlbK4Dv
    kUGKoE2XFUq6burY
    1oHNIS5Gpfyi2mLU

    • Carefully lift the far end of the battery connector with an opening tool facing towards you.

    • Remove the connector by pushing it forward and lifting.

  10. qX3GFvnej1dMS2DR
    qX3GFvnej1dMS2DR
    xehDmPqMOA5E4MFO

    • Remove the central 5 mm screw with a Phillips #1 screwdriver.

  11. dECPUAZYMM1BhPhl

    • Lift the battery up and out of the computer.

  12. 2JngypvAbveOKTYd
    2JngypvAbveOKTYd
    JPnSRuATYFDwdnTp

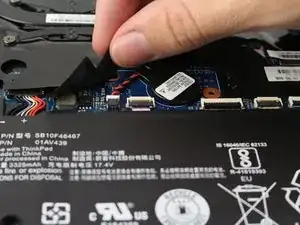

    • Peel off the black protective film to the left of the fan.

  13. SAnnfiNJTKc1NEPr
    SAnnfiNJTKc1NEPr
    ed5yJJ2fQ6YB3weK
    RHxZpoTCmLnymHHc

    • Do not remove the four screws closest to the fan. They do not affect the fan assembly.

    • Disconnect the antenna wires on green the wireless LAN card to the left of the fan.

  14. BhLKaFwCLseGagQ2
    BhLKaFwCLseGagQ2
    Yj1cLhyUZwHRReB3
    16LLYPxQqHMW21W6

    • Lift up the hinge connector that is attached to the fan's ribbon cable.

    • Carefully disconnect the cable by pulling outwards from the ribbon connector.

  15. UROJ5xWANaYbr5H4
    UROJ5xWANaYbr5H4
    fygP1XkiWPBqsGWb
    PYcNrYMtPiFMZjbJ

    • Loosen the screws on the 'x' configuration of metal.

    • These screws are held on to the metal 'x', so don't worry about them falling out.

  16. suKyonZHKNBW2DKN

    • Lift the fan upwards from the board.

  17. YyAG3tAnyFtjKwDa

    • It's best practice to replace the old thermal paste under the 'x' configuration of metal. (Guides on how to replace thermal paste can be found here.)

  18. Vtjgn3IMCmXeDdvy
    Vtjgn3IMCmXeDdvy
    dYSdWoYYWTEWHetx

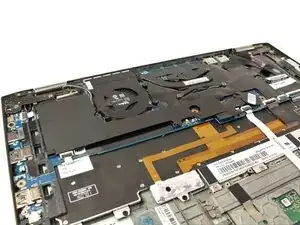

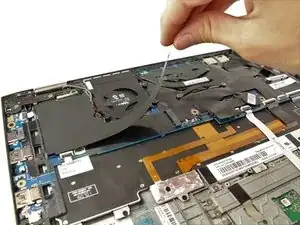

    • Remove the protective film to the left of the fan assembly.

  19. 5G2nGrhjgiwoD1IB
    5G2nGrhjgiwoD1IB
    QoHtWhCdFLUkooST
    aUWcZ2FV5lrw4aHp

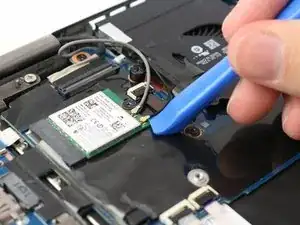

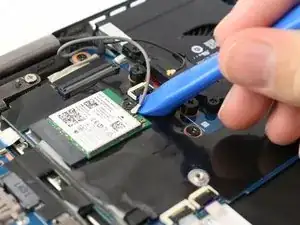

    • Carefully disconnect the gray and black antenna connectors on the green wireless LAN card by lifting under the antennas with an opening tool.

  20. qL4wCGesCBjBxGo4

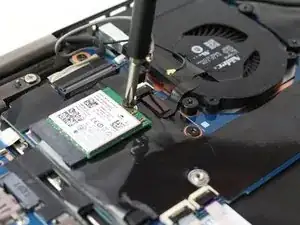

    • Remove the 2.5 mm screw holding the card in place with a Phillips #1 screwdriver.

  21. MLmmluPEZ1y3OdRG
    MLmmluPEZ1y3OdRG
    PFnQB2SNHqS2lVOr

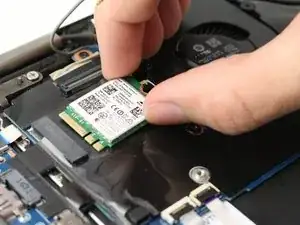

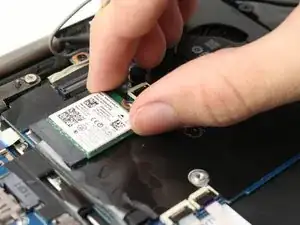

    • Carefully slide the wireless card out of the slot by pulling it to the right.

  22. dyAAKtaPxGK2t1jc

    • Using a Phillips #0 screwdriver, remove the two 5 mm screws securing the USB ports on the righthand side of the motherboard.

  23. 2GXXFWMuiA6XLWGv
    2GXXFWMuiA6XLWGv
    Sr5hyRsFtArOYm3C

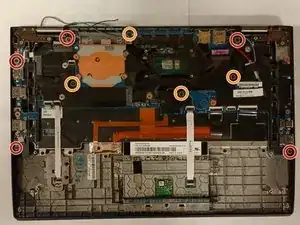

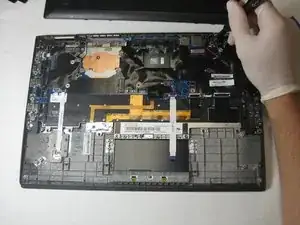

    • The white triangle symbol on the motherboard identifies the longer 5mm length screws.

    • Using a Phillips #0 screwdriver, remove the five 5mm screws.

    • The white square symbol on the motherboard identifies 2mm length screws.

    • Using a Phillips #0 screwdriver, remove the four 2mm screws.

  24. SO3KGOECMSuShrKW

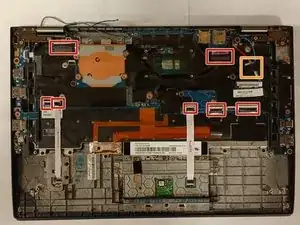

    • Remove the 7 ribbon cables connecting the motherboard to their respective components by flipping up the locking black tabs with a spudger and pulling the cables from their connectors.

    • Remove the red and blue wires attached to the motherboard.

  25. m1ybjZcXLT46k5IH
    m1ybjZcXLT46k5IH
    DqHXoZMoR1EfmLUN

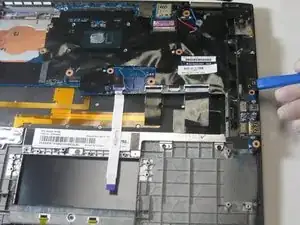

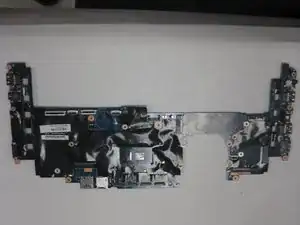

    • Using the plastic opening tool, gently lift up on the motherboard.

    • If resistance is felt double check to make sure all the screws and ribbon cables are out.

    • Lift the motherboard out from the computer.

  26. Wpdnx4sUcPSfWC3I
    Wpdnx4sUcPSfWC3I
    4hkwLl6hNqwKbON6

    • Notice the location of the screws, as the top outside corner of each side does not get a screw.

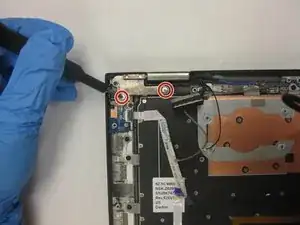

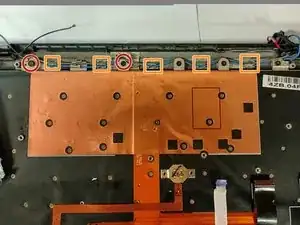

    • Using a Phillips #0 screwdriver, remove the four 5 mm silver screws from the display hinges.

  27. tk2CRXBipLiLImnN
    tk2CRXBipLiLImnN
    jdCApyMrBoKMpZqN
    k5MBjoIOodDOylUI

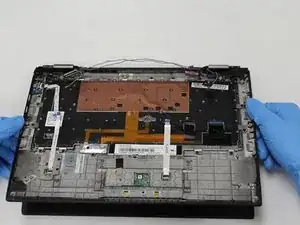

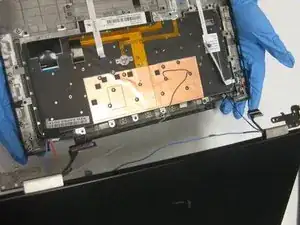

    • Using a Phillips #0 screwdriver, remove the two 2 mm screws securing the wires in place.

    • Gently remove the wires from their tight fit pinch clamps.

    • Gently wiggle the display brackets back and forth until the display is off.

  28. ZwYu4gMWFLKv5I4R
    ZwYu4gMWFLKv5I4R
    fAimpxTme3Cy5Fkk
    a2ZUUWESCimQwHLm

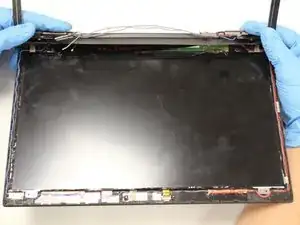

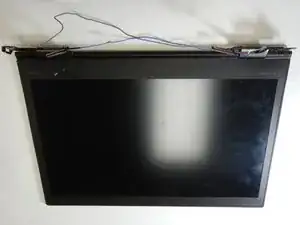

    • Insert the plastic opening tool into the side of the display in between the gaps, separating the bezel from the rest of the display.

    This is missing the step to remove the rubber pads covering the screws at the bottom of the front bezel and removing those 4mm screws.

    Gabe Hoffman -

  29. asexBNQrQGaPo5H5

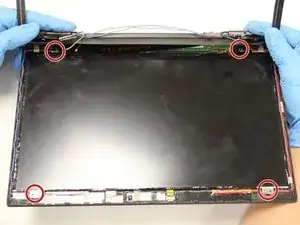

    • Using a Phillips #0 screwdriver, remove the four 2 mm screws securing the display to the cover.

  30. WTscLJlhyTFsHbIt
    WTscLJlhyTFsHbIt
    kgcOYU2XZTKhwyYC

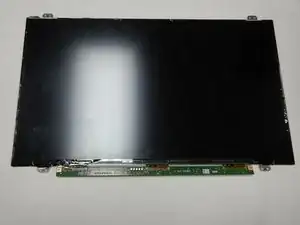

    • Lift up on the screen.

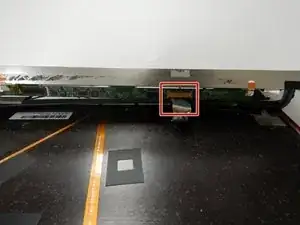

    • Disconnect the ribbon cable connecting the circuit board to the display.

    • Do not remove the Do Not Touch Tape.

Abschluss

To reassemble your device, follow these instructions in reverse order.
