Einleitung
Use this guide to remove the RAM (random access memory) from your device.
Ersatzteile
-
-
Remove the battery by sliding forward the switch here.
-
For more info on how to remove the battery, refer to battery replacement guide.
-
-
-

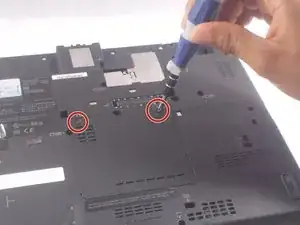

The RAM is the small square component on the back. Unscrew all screws using a diamond head screw.
-
There are only two screws to remove as circled here.
-
The screw head used here is a JIS J00 Driver.
-
-
-

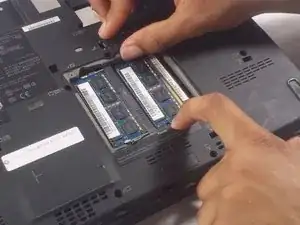

On the edges of the RAM components, push each switch to the side.
-
The RAM chip should pop up on its own once you push each side outwards.
-
-
-
The RAM chip should pop up on its own once the sides are pushed outwards.
-

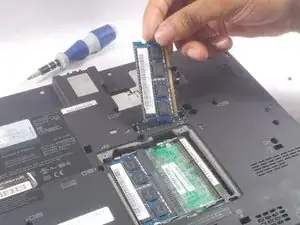

Gently pull on the RAM to remove.
-
Abschluss
To reassemble your device, follow these instructions in reverse order.
