Einleitung

I will replace the keyboard on this Thinkpad X220 in a few steps.

  1. PRaDTUYiH1KcqTKv
    PRaDTUYiH1KcqTKv
    uiihLdotExhjgMUj
    x2QIeROr2sv6YZqa

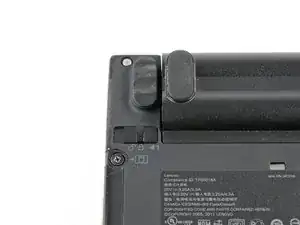

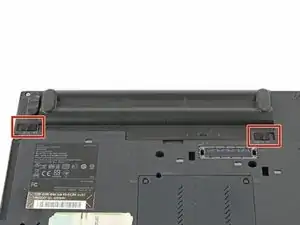

    • Locate the two switches that lock the battery.

    • Then push the left switch outward into the "unlocked" position.

    • This switch will remain in the unlocked position.

  2. iryFbMSjME1URQD1
    iryFbMSjME1URQD1
    OAVyMkioRVKwAawU

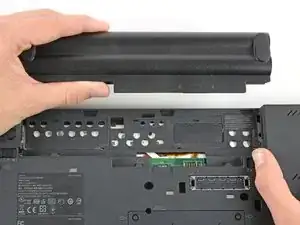

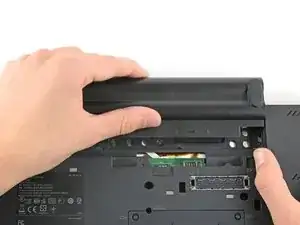

    • Now push and hold the right switch to the right while using the other hand to gently slide the battery upwards out of the laptop.

  3. kb6bayIIl2yM2E4F
    kb6bayIIl2yM2E4F
    MGw4yWWJAQjSSiyv

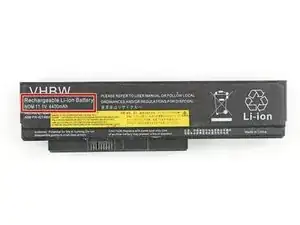

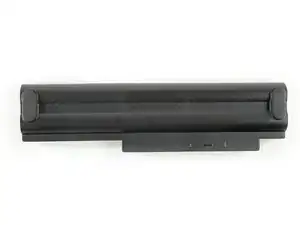

    • This is a rechargeable Li-Ion battery that has a capacity of 4400 mAh, if you have the 6 cell model.

    • The 4 or 9 cell model has different ratings.

    ist scheisse!

    luis.riedmann -

  4. ModoCXQWSppYURJO
    • Put the laptop upside down.

    • Unscrew the two keyboard retention screws.

  5. 2efmujQN3wNLqKCC
    2efmujQN3wNLqKCC
    3vQtEoWx244dLbcC

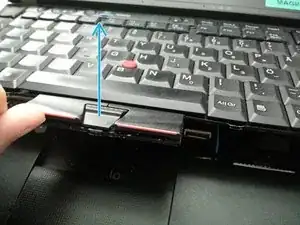

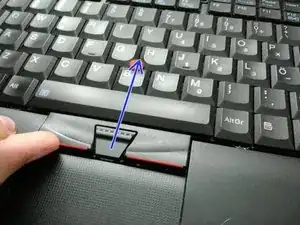

    • Put the laptop back on its feet, open the lid and push the keyboard from the TrackPoint click buttons.

    • After that, pull it from the laptop assembly.

  6. SJOtytQo4iCP5rch
    SJOtytQo4iCP5rch
    lrdfLoKpMxftP5gu

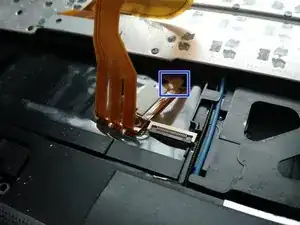

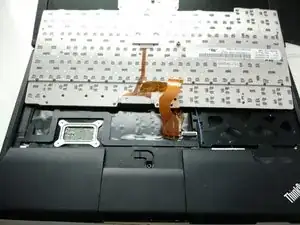

    • You should now have access to the keyboard's connector.

    • Pull it gently from the grabbing tip.

    Could you please give a clearer picture of how the keyboard connector tip looks like after removal? Thanks.

    Atul Parida -

  7. sAZq6lchhUtwbAIE

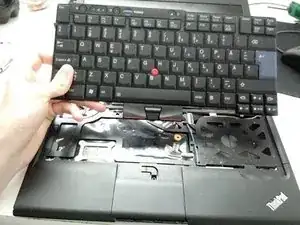

    • The keyboard is now totally unplugged from the laptop.

    • Here you go! Plug a new keyboard on the connector and follow the steps in the reverse order to finish your repair.
