Lenovo Thinkpad x230 Bezel Replacement

Geschrieben von: Lino Virgen
  • Kommentare: 1
Lenovo Thinkpad x230 Bezel Replacement

Schwierigkeitsgrad

Easy

Schritte

7

Zeitaufwand

5 Sekunden

Einleitung

Users will learn how to remove the bezel from a Lenovo Thinkpad x230.

  1. jlQGiXsUVJtgHKmn

    • Before you begin, be sure to turn off your laptop and unplug it from the outlet.

    Wouldn’t the risk of ESD damage be a bigger concern than electrical shock from a 20V/90W power supply? I mean, it would hurt, but it almost certainly wouldn’t kill you.

    Arie Copley-Radder -

  2. pKRvXJhRNQjxg2oN

    • Flip the computer upside down.

    • The red rectangle shows the location of the battery.

  3. LPIXklgibVLLklBe
    LPIXklgibVLLklBe
    6jjLxPOHM6Ua1NYI
    Vx2Bge3mWEahJ2Wl

    • Locate the two switches that lock the battery. Push the left-hand switch outward into the "unlocked" position.

  4. e3Ob5eT5le2tREy3
    e3Ob5eT5le2tREy3
    iH6RJSTUAMyapTlp
    DGXKD2qNGFpAxNwd

    • Now push and hold the right clip to the right while using your other hand to gently slide the battery away from the computer.

  5. a42U5pMJuMyKiXQM

    • Remove the plastic screw covers with an iFixit opening pick.

  6. qenHETybTM5R11yR
    qenHETybTM5R11yR
    3ocPlTxiGhTL5gyp

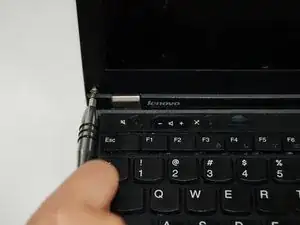

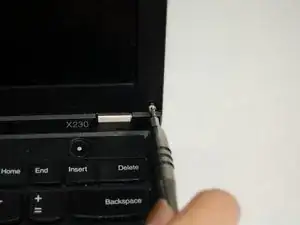

    • Remove the screws (0.4, 0.5 cm) from the bottom corners of the bezel using a Phillips #0 screwdriver.

  7. oFDJCmHHPVFiJRRY
    oFDJCmHHPVFiJRRY
    mPvIZfHkTM54M6Wh
    xNrmbXM1pkfSiGOd

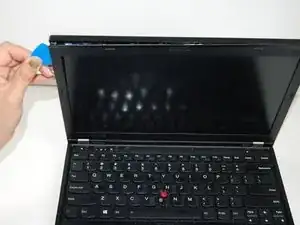

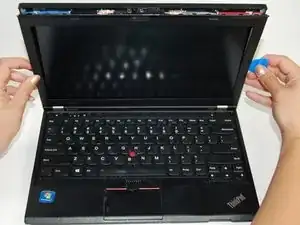

    • Carefully remove the plastic bezel cover using an iFixit opening pick.

Abschluss

To reassemble your device, follow these instructions in reverse order.
