Lenovo Thinkpad x230 Motherboard Replacement

Geschrieben von: Lino Virgen
  • Kommentare: 10
Lenovo Thinkpad x230 Motherboard Replacement

Schwierigkeitsgrad

Moderate

Schritte

26

Zeitaufwand

45 Minuten - 1 Stunde

Einleitung

To remove motherboard from this laptop follow the following steps carefully.

  1. jlQGiXsUVJtgHKmn

    • Before you begin, be sure to turn off your laptop and unplug it from the outlet.

    Wouldn’t the risk of ESD damage be a bigger concern than electrical shock from a 20V/90W power supply? I mean, it would hurt, but it almost certainly wouldn’t kill you.

    Arie Copley-Radder -

  2. pKRvXJhRNQjxg2oN

    • Flip the computer upside down.

    • The red rectangle shows the location of the battery.

  3. LPIXklgibVLLklBe
    LPIXklgibVLLklBe
    6jjLxPOHM6Ua1NYI
    Vx2Bge3mWEahJ2Wl

    • Locate the two switches that lock the battery. Push the left-hand switch outward into the "unlocked" position.

  4. e3Ob5eT5le2tREy3
    e3Ob5eT5le2tREy3
    iH6RJSTUAMyapTlp
    DGXKD2qNGFpAxNwd

    • Now push and hold the right clip to the right while using your other hand to gently slide the battery away from the computer.

  5. ZnQoAnbOBYyPbCo6

    • Locate the hard drive enclosure (marked by the red rectangle).

  6. xhpGUgeNGuGjvYJ5
    xhpGUgeNGuGjvYJ5
    25j1vpAtPvaBO4yY

    • Use a small Phillips screwdriver to unscrew the single screw that holds down the hard drive enclosure cover.

    • The screw is designed to remain within the plastic cover. Don't worry about extracting it completely.

    • Carefully remove the hard drive enclosure cover.

  7. PoQIeLeyBDJC5BGm
    PoQIeLeyBDJC5BGm
    BDddAZEcMxdXQAdh
    rQLrGo1lvpDNf5Eb

    • Gently pull the black pull tab out from above the hard drive. Continue pulling on the pull tab until the hard drive and the two plastic rails come out of the enclosure.

    • Pull on the tab firmly but slowly. The hard drive should come out of the enclosure effortlessly.

  8. MsPG1oPVtw1fxR4S
    MsPG1oPVtw1fxR4S
    Zx1J4lTmcdEHaRMy
    lOZePKi4OtSEVVtu

    • Remove the plastic rails from the old SSD/hard drive and place them on the new SSD/hard drive.

    One question: I wanted to replace my broken ssd with a new one. What do I do with the black plastic pull tab? I cannot really take it off and put it on the new drive. I'm afraid I wont be able to pull it out again if I don't have this on the new one. Or do I need to buy one? What is it called properly? Would be great to get some help on this!

    Rete -

  9. chGh33JZVHgTFQBc
    chGh33JZVHgTFQBc
    2PRtefYXpJndJNrJ
    uiUIScTrCbWFbRrL

    • There are 2 screws securing the keyboard. You can identify them by a small keyboard symbol (marked by an orange rectangle in the second picture).

    • Once you have located the two screws, remove them with a small Phillips screwdriver.

  10. bQsgmBIFiKWBHQ1r
    bQsgmBIFiKWBHQ1r
    hqsQNXJa4yt1Uwpx
    EnhWTnEjimE6eYP1

    • This step is not required.

    • Gently pull the strip out from the case.

    How do I reinsert this strip? When I insert the bottom clips first I can’t get the top ones in and vice versa. Also I don’t understand the mechanism of the top clips, why do they have the shape they do?

    Daan -

  11. ODgKv165qwj2C5hF
    ODgKv165qwj2C5hF
    LXNPkcsTUU6U4TXT

    • Use a a plastic spudger (or a flat screwdriver) to push the keyboard towards the screen. This will pop the bottom of the keyboard out of the casing.

  12. pDGpCpt3yxkoQaav
    pDGpCpt3yxkoQaav
    FYUDjeT6TUxosPq4

    • Carefully lift the keyboard so that you can access its connector.

  13. VPmKX5P2VekaACmB
    VPmKX5P2VekaACmB
    YhNQ1niZAc1JIAZO

    • Carefully unplug the connector by pulling.

    Don't pull on the orange band, as shown in the picture. For me it immediately ripped, even with only minimal force applied, thus ruining the wire.

    Alex Stahl -

  14. s5VWhJ3MGrKPQlLX

    • You are done - the keyboard is not connected to the laptop any more and can be replaced.

  15. MNZZHXhluSDBfCBi
    MNZZHXhluSDBfCBi
    sBu3XEPDvJhBN2qv
    jtbELHPGMedEaoUe

    • Remove five 5.7mm screws from the bottom.

  16. 54qCIYQHwcjd2W65
    54qCIYQHwcjd2W65
    MsCDXyUIMtfKBcXs

    • Unscrew two 5.7mm screws from the top of the bottom of the laptop.

  17. b1I4A5cVJjLmNcoF
    b1I4A5cVJjLmNcoF
    GrwG1vx21mdVjkWG

    • Pull the palm rest off the laptop board.

  18. AAINHBxSib61kFTM
    AAINHBxSib61kFTM
    FgTDpjmak6mQRguT

    • Unlock the white seal and disconnect the blue cable.

  19. XNFCiQUd6JbrL4vs
    XNFCiQUd6JbrL4vs
    ZkohNYn5QDSOYEbm
    AWNgkcEYbQ2bmBcj

    • Carefully disconnect blue and red cables and remove them from plastic case.

  20. oyaXwR5uHTHQdgKR
    oyaXwR5uHTHQdgKR
    fnVPVcytCwSHJxHk

    • Unlock white seal and diconnect blue cable from upper corner.

  21. oQBM5F3bWRhOlqAD
    oQBM5F3bWRhOlqAD
    Jc51jGOWOSJov1jP

    • Remove two 4.1mm screws from the black frame.

  22. YeKXZ1fnNLEZMRSG
    YeKXZ1fnNLEZMRSG
    HV5FiypDZDAGEtec
    NJDAACM3FOlqCMVb

    • Carefully pull off black frame from laptop board.

  23. NEx5JPQOFtYhJiIV

    • Carefully lift the screen module straight up to detach from board.

  24. SOT2tFr55Fptmhmt
    SOT2tFr55Fptmhmt
    bFNHX6k5OyadO5UN

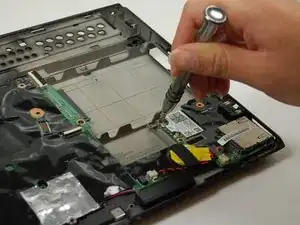

    • Remove a total of twenty-three 4.1mm screws from around the black plastic in the board.

  25. upQOxUHXlg3tJwZp

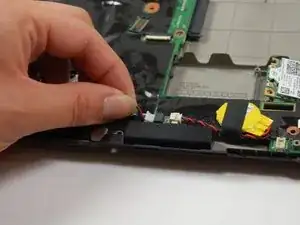

    • Disconnect black and red wires from bottom right corner.

  26. 1taCjYP6DX56JIxJ
    1taCjYP6DX56JIxJ
    4TFeuyneNGF4i5sE

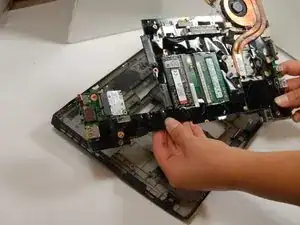

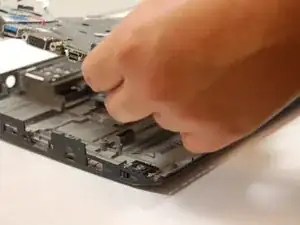

    • Carefully detach the motherboard (black plastic) from the laptop.

Abschluss

To reassemble your device, follow these instructions in reverse order.

Tinte & Feder

Lino Virgen

Mitglied seit: 10/10/16

947 Reputation

6 Kommentare

is the cpu replaceable on one of these, or its soldered to the mobo? I want some laptop from the X- series wich will be able to handle an i7 (best if x230 as it is the newest i can afford)

Marcin -

The X230 CPU is soldered to the board. i7 not really worth it because the performance difference is about +5% and battery life is poor compared to the i5 X230.

Marshall Richards -

i am using lenovo x230, when i press the power button not show screen POST Bios (Blank Screen) but the power button and the flash light on. What is my x230 problem ? htttp://www.designstrusted.com

hanif.fuqoha -

Great walk-through.

I used this for my x220, which was identical apart from three minor differences.

Many thanks.

chris.r -

Really clear document, better to use than Youtube videos.

Koulutus5 Terasoft -

many thanks for your contribution to us all

Mark G -
