Einleitung
This guide will help you replace the hard drive of your device. You'll need to spend some time unscrewing a numerous amount of schools from the device.
Werkzeuge
-
-
Flip the device so the back is facing you.
-
Using the Phillips #0 screwdriver, unscrew the fourteen screws from the device.
-
-
-
Use the blue Opening Tool to pry-open the back cover.
-
Slide it around the perimeter of the PC freeing the back cover.
-
Remove the back cover from the device.
-
-
-

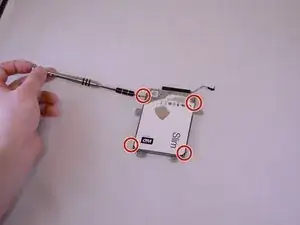

Use the Phillips #0 screwdriver to unscrew the four screws on the sides of the hard drive frame.
-

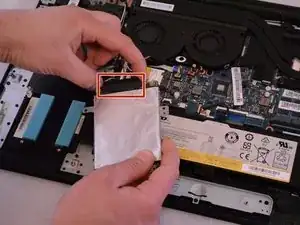

Remove the hard drive from the frame.
-
Abschluss
To reassemble your device, follow these instructions in reverse order.
