Lenovo U31-70 Hard drive/SSD Replacement

Schwierigkeitsgrad

Easy

Schritte

6

Zeitaufwand

8 Minuten

Einleitung

How to replace the Hard Drive or SSD. Same for Lenovo U41-70.

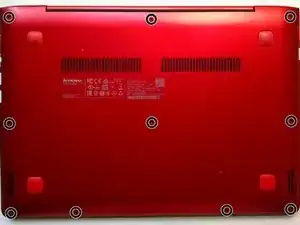

  1. XLYdI2IRiPqcuuLo
    XLYdI2IRiPqcuuLo
    DhNrvl1HKdRdgNRh

    • Phillips Screw Driver

    • 10 Screws to hold Backplate

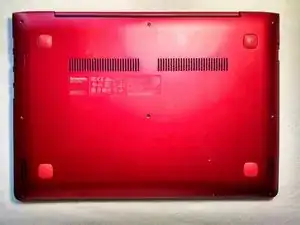

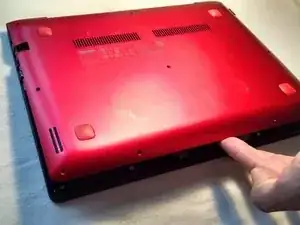

  2. EDtxVRYZdyQVVFTN
    EDtxVRYZdyQVVFTN
    IpQLh1Ckfn16Qxtw

    • Lift up Backplate from side closest to you

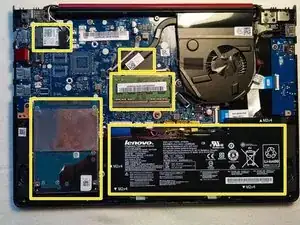

  3. h2iCYPMO4iArfQcD
    h2iCYPMO4iArfQcD
    xuqMwfkKSoWKCqoA

    • From top to bottom

    • Wifi Card

    • CPU

    • RAM

    • Hard Drive

    • Battery

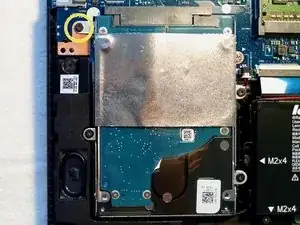

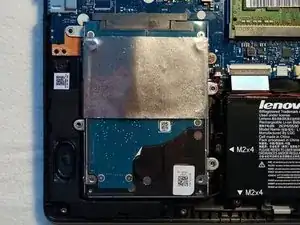

  4. Psc225xCvyXgOIks
    Psc225xCvyXgOIks
    CbIS4hwa4STcGNHe

    • Remove 4 Hard Drive Screws

    • Top left Screw might have a Warranty-Seal

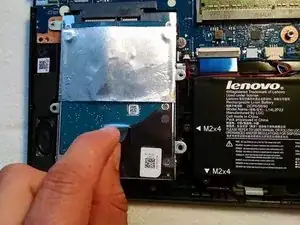

  5. q4JpFUDHOMFVe4Bm

    • Lift flap and pull down and up

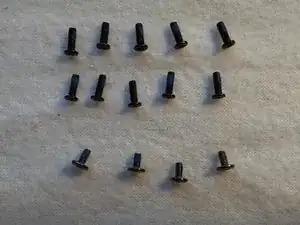

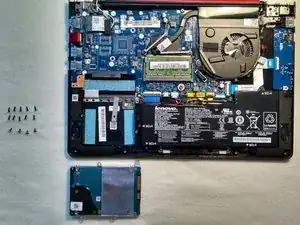

  6. 2nlAXb5PmHIx2Aes
    2nlAXb5PmHIx2Aes
    vhKE2JDaZZsuH1AO

    • Remove Mounting Bracket from Hard Drive

Abschluss

To reassemble your device, follow these instructions in reverse order.
