Lenovo Y410P Cooling Fan Replacement

Geschrieben von: Eric Chen
  • Kommentare: 1
Lenovo Y410P Cooling Fan Replacement

Schwierigkeitsgrad

Moderate

Schritte

11

Zeitaufwand

30 Minuten

Einleitung

  1. OhBbrmiZWv1GUZDy
    OhBbrmiZWv1GUZDy
    3YoNQmvBeFnPICQn

    • Remove eight M2.5 x 8mm Phillips head screws, using a Phillips #0 screwdriver, in the specified locations.

    • Lift the bottom cover off and set it aside.

  2. KmKOTgqucBG2CoHE
    KmKOTgqucBG2CoHE
    VIjfhLIlSkaX2RBo

    • Remove the two M2.5x4mm screws using a Phillips #0 screwdriver.

    • Slide the hard drive out of the casing.

    • Be careful when handling the hard drive; rough impacts may cause data loss.

  3. gC2mBJmntQ2peI1V
    gC2mBJmntQ2peI1V
    QGy1Gois2FxWhGdb
    SQsDT2KBoETZxw1I

    • With the laptop's bottom facing up, pull the optical drive release lever back and pull the optical drive out.

    • Unscrew the three M2x3mm Phillips head screws shown.

    • At the front edge of the laptop, empty the SD card holder by pressing on the card. This will allow for further disassembly in later steps.

  4. nUOQHQroMAsVBEV5
    nUOQHQroMAsVBEV5
    X1fFZvtosTvYRHM4

    • Remove the two M2.5 x 6mm screws using a Phillips #00 screwdriver.

    • Disconnect the two WiFi antenna cables.

    • Disconnect the sound connector.

  5. foyMH5iTTXF1SYpY

    • Open the laptop hinge. Tip the laptop onto its side, and use the back end of the screwdriver to push the keyboard out from the optical drive area.

    • Turn the laptop right side up and pry the keyboard up slowly, until it is clear of the case.

    • Be careful of the ribbon cable when removing the keyboard. The ribbon is still attached.

    • Detach the ribbon cables by opening the specified latches.

  6. Np2nfryN4NnDporB
    Np2nfryN4NnDporB
    ROEHlEvRJEolGMTS
    2CNg3CtArelyxOfP

    • Detach the ribbon cables by opening the specified latches.

    • Turn the laptop upside down and remove the M2.5x8mm screw with Phillips #0 screwdriver.

    • Turn the laptop on its side and pry the bottom from the top.

    • Only partially remove the palm rest; there is still a ribbon cable attached underneath it.

    • Remove the ribbon cable by opening its respective latch.

  7. R2sPbSPRAXe1iGv2
    R2sPbSPRAXe1iGv2
    hXRjL5O3Id1o55XP
    vaH1XnokPsreMAn2

    • Remove the specified cable on top of the motherboard.

    • Flip the laptop over, and remove the specified cables.

    • Remove the two M2.5x4mm screws with a Phillips #0 screwdriver

    • Remove the motherboard with hands.

    My y410p can't start, overheat in some are in motherboard

    Fauzy Sadland -

  8. eR1HDyQBFAvkLDAX
    eR1HDyQBFAvkLDAX
    YagZFFrD2qW2C4Jo

    • Unscrew (adequately loosen) the six heatsink screws in the order written on the heatsink. Use a Phillips #0 screwdriver.

    • These six screws are built into the heatsink and will not detach from it.

    • Unplug the fan cable from the motherboard.

  9. UGM3iBKoIRGssyhK

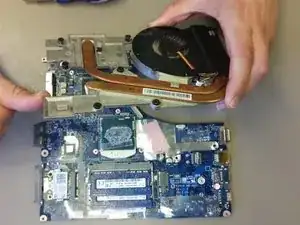

    • Gently remove the heatsink with your hand

    • There may be some resistance due to dried up thermal paste, simply pry the heatsink from the board.

  10. PTjQxriYwUJV2QGG
    PTjQxriYwUJV2QGG
    kIVqD5PDJHcV4BUA

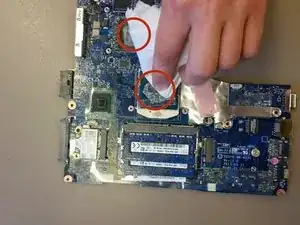

    • Find an anti-microbial wipe and gently wipe the old thermal paste from the CPU and GPU

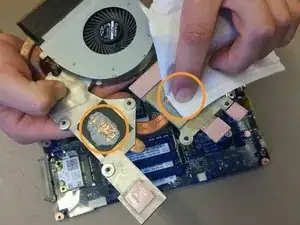

    • Now wipe the old thermal paste from the underside of the heatsink

    • Be careful not to mess up any of the pink thermal pads, these are important for other chips

  11. QF4TXOiJnrlmVEFm

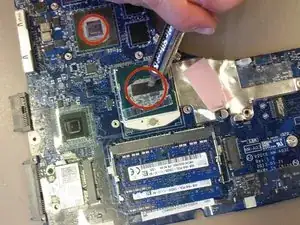

    • Apply new thermal paste to the CPU and GPU

    • Only apply a small bead approximately the size of a pea

Abschluss

To reassemble your device, follow these instructions in reverse order.
