Lenovo Y50 Touch Speakers Replacement

Geschrieben von: Andrew Tran
  • Kommentare: 1
Lenovo Y50 Touch Speakers Replacement

Schwierigkeitsgrad

Moderate

Schritte

14

Zeitaufwand

15 - 30 Minuten

Einleitung

Sound is an integral part of a laptop user's experience, especially for videos, music, and gaming. The Lenovo Y50-70 Touch is equipped with two side speakers and a bass speaker on the underside of the laptop. When there are sound problems, but all the sound drivers are running properly, replace the speakers to regain your full user experience.

  1. qEQ1lpaFaCGGs5EJ
    qEQ1lpaFaCGGs5EJ
    GYafKgk6lucwbcQD

    • Remove all twelve 6 mm screws from the back of the laptop using a Phillips #1 screwdriver.

    • Apply a lot of pressure to prevent the screws from stripping.

    • Make sure to turn off the computer first!

  2. ZxxlLVPuGCks3hI4
    ZxxlLVPuGCks3hI4
    BYLyJjlICPAOxARB

    • Gently pull the back cover off the laptop. It should come off easily.

  3. fWGQTk1cflNrnCNn
    fWGQTk1cflNrnCNn
    rbWCJrNVhrHRAt4g

    • Remove the three 3.5 mm screws from the fan with a Philips #1 screwdriver.

  4. 2gIfG1LdyMsxhWaV
    2gIfG1LdyMsxhWaV
    HIbSb6H2TdlDOE2S
    mqEJqWPvRVcvjyvs

    • Pull the wire tabs up one at a time to separate them from the motherboard.

    • Do not pull too hard on the wire tabs. It may damage the connection between the wires and motherboard.

  5. f4lUjXQe6qPDrUcy
    f4lUjXQe6qPDrUcy
    v3VPCu5T4ty6XYkF
    DJTILdKL4QTYkCpy

    • Remove the black and white antenna cables from the wireless card.

    • Do not pull too hard on the antenna cables, as it might damage the connection to the wireless card.

    Is the black and white wire the one connected to the screen?

    Emi Hua -

  6. SrQJQXOSOK3y3GMo
    SrQJQXOSOK3y3GMo
    gNvkY4ZRoIFylrUY
    PSglPECydFLkLqaX

    • Lift up the fan slightly.

    • Gather the antenna cables(black and white) and speaker wires (red, black, blue, and white). Carefully move them away from the fan.

  7. XNm2yYL1FCyFH3kN
    XNm2yYL1FCyFH3kN
    XmPhw1wnNyKsHW52

    • Lift the fan off of the laptop.

  8. bMSmSuFJpEuSlxrC

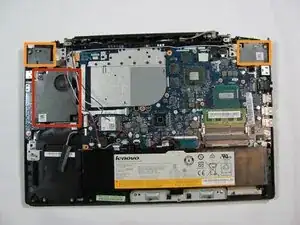

    • Locate the three speakers within the laptop.

    • The bass speaker is located near the fan's original position.

    • The side speakers are located at the upper left and right corners of the laptop.

  9. NhdBCcLMBHbdZOOA
    NhdBCcLMBHbdZOOA
    kRBENJK1UlIn5kGB
    IyBZ4QguYjOxVYii

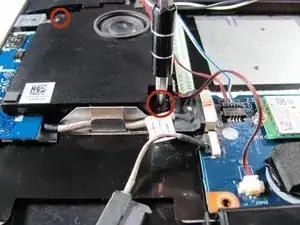

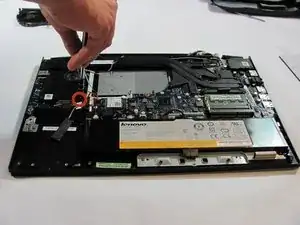

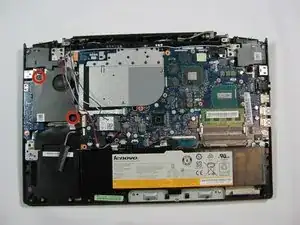

    • Using a Philips #1 screwdriver, remove the two 2.5 mm screws securing the bass speaker.

  10. vPTZlHgKmxymbALI
    vPTZlHgKmxymbALI

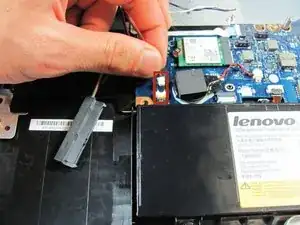

    NXIYnG2KUOuQVvZL

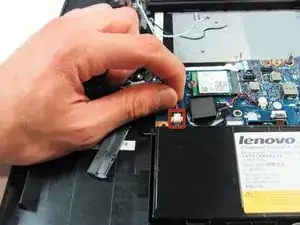

    • Unplug the bass speaker from the motherboard.

  11. ATM5Yk5sXYUrTqjw
    ATM5Yk5sXYUrTqjw
    A26Ctfa4fLiGtqVS
    hx3TBIgknN1kFVmu

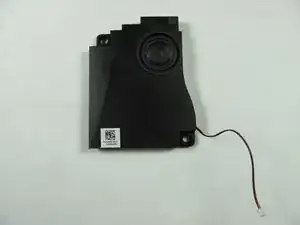

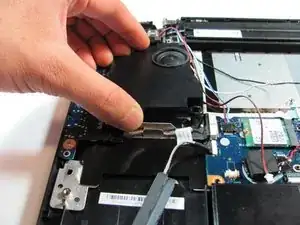

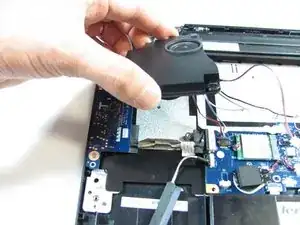

    • Remove the bass speaker from the laptop.

  12. NPMT2s1ucKZwTT4i
    NPMT2s1ucKZwTT4i
    NIMtNjfdOwD1XOGu
    mu2aVgySRHN2rXgO

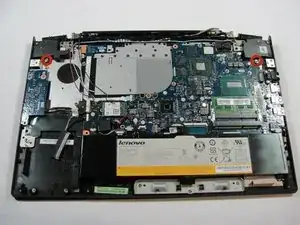

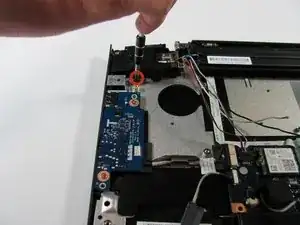

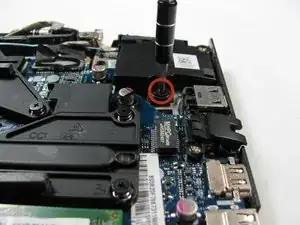

    • Using a Philips #1 screwdriver, Remove the 2.5 mm screw holding each side speaker to the laptop.

  13. hqmJtYWLFoVLLlXw
    hqmJtYWLFoVLLlXw
    IJhxEOvbFCyZllxH

    • Unplug the side speakers from the motherboard.

  14. LQoSgcbVOfcTUB1G
    LQoSgcbVOfcTUB1G
    iJTJRJsXeaNtqSle
    1oVT1GD4IbTVq4BZ

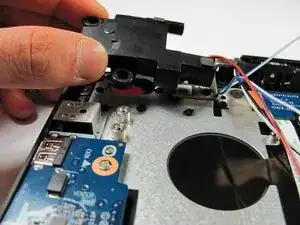

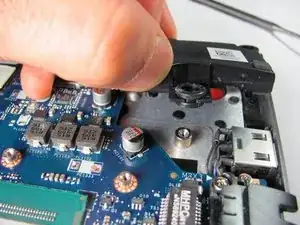

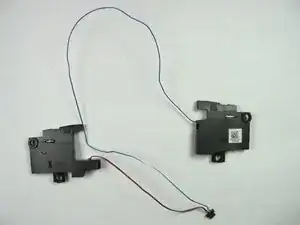

    • Remove the side speakers from the laptop.

    • The red and black wires connect to the right speaker, and the blue and white wires connect to to the left speaker.

    • The side speakers are independent from the bass speaker. It is possible to remove them without having to remove the bass speaker.

Abschluss

To reassemble your device, follow these instructions in reverse order.
