Einleitung

How to replace the battery of a Lenovo Y50-70 laptop. The images and information in this guide were taken from this computer's service manual.

  1. tiDckQ6msRyVDFKX

    • Remove the short (M2.0 × 5.0 mm) screws.

    • Remove the long (M2.0 × 5.0 mm) screws.

    • When re-installing: Install the 3 longer screws and then install the 9 shorter screws.

  2. at35Ev4N5h1gK5k6

    • Remove the base cover in the directions shown by arrows.

  3. M2e2Ce1RDqGZWarn

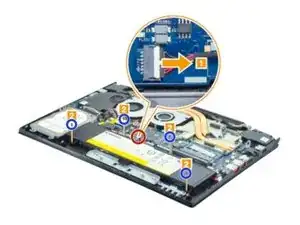

    • Unplug the battery connector in the direction shown by arrow.

    • Remove the M2.5 × 5.0 mm screws.

  4. BnQnNBstBDmiTXAC

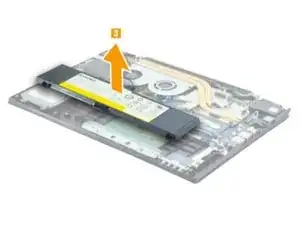

    • Remove the battery pack.

Abschluss

To replace the battery & reassemble your device, follow these instructions in reverse order.
