Lenovo Y50-70 Touch Motherboard Replacement

Geschrieben von: Tanner Tomlinson
  • Kommentare: 1
Lenovo Y50-70 Touch Motherboard Replacement

Schwierigkeitsgrad

Moderate

Schritte

14

Zeitaufwand

10 - 20 Minuten

Einleitung

In this guide, the reader will go through the necessary instructions needed to replace a non-functioning motherboard in the Lenovo Y50-70 Touch Laptop. This specific repair does not require any previous knowledge about computers and can be completed by a beginner using only a single Phillips #1 screwdriver and a small plastic prying tool.

When performing this repair, ensure you are in a static free environment so as not to provide an electrical shock to the computer and possibly further damage the device.

  1. q5UYgkWeg516cNRO
    q5UYgkWeg516cNRO
    wFP5Wa23VQbrQvOd
    xPtA6mZfvTeQ6xwm

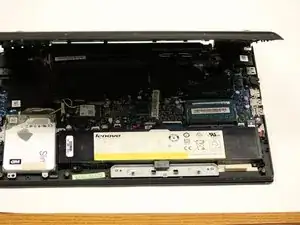

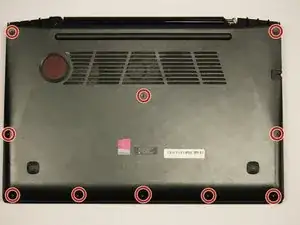

    • Use a Phillips #1 screwdriver to unscrew and remove the ten 6 mm screws on the back of the laptop.

    • Grab and pull off the back.

  2. TSrcZYOdrdL4Kfse
    TSrcZYOdrdL4Kfse
    wATemCxJMApLnNVo
    GNa5xFZK5wajXe51

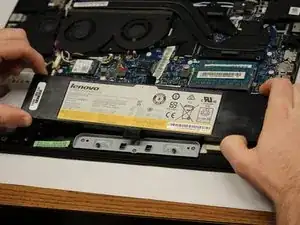

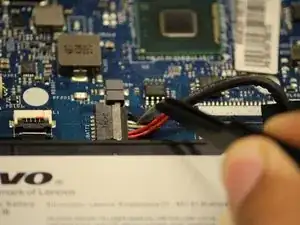

    • Use a Phillips #1 screwdriver to unscrew and remove the four 6 mm screws that secure the battery.

    • Grab the battery cable and gently pull it free from the cable connector.

    • Remove the battery.

  3. MSo6wGNSRQEbIJ2O
    MSo6wGNSRQEbIJ2O
    1QSwJCYluXXbrVZn
    1AJmBw2yWNJZ6Dye

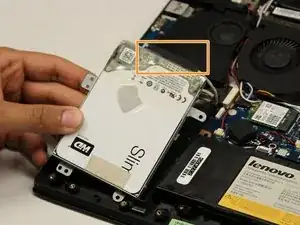

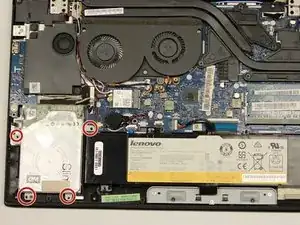

    • Use a Phillips #1 screwdriver to unscrew and remove the four 6 mm screws that secure the hard drive.

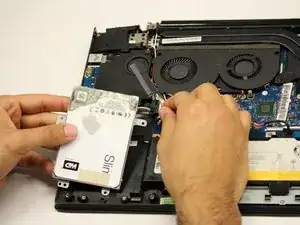

    • Grab the marked cable attached to the hard drive, and gently pull to unplug.

    • Remove the hard drive from the laptop.

  4. c2yDTgMOv36UPctN
    c2yDTgMOv36UPctN
    X2gVKKgm234Gvlit
    52FP6mffvGVZXQem

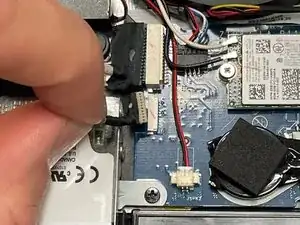

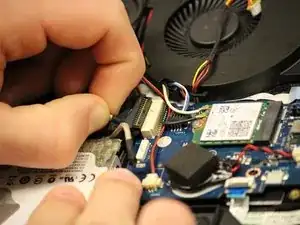

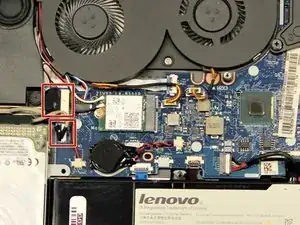

    • Grab marked cables and pull them out from their plug-in.

  5. qRdwvyES2e2VMLFh
    qRdwvyES2e2VMLFh
    RenfJLIBvPPUcB5h
    o5acvw1IC4AUSDCA

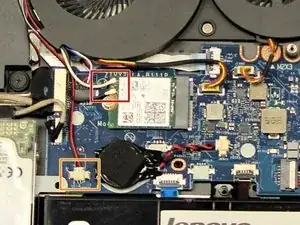

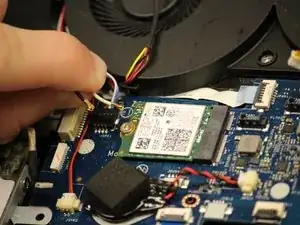

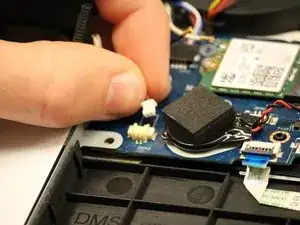

    • Grab the top set of marked cables and pull up to remove them.

    • Grab the lower marked cable and pull it out from their plug.

  6. VN1AplGU6vfFgxU2
    VN1AplGU6vfFgxU2
    6jIldlsyGYGWxmt1
    mVQXgQEZPUrWOPZr

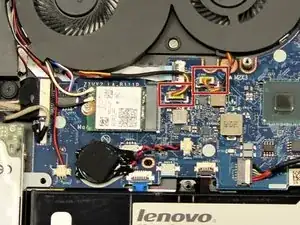

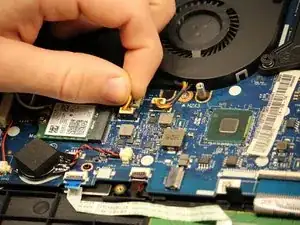

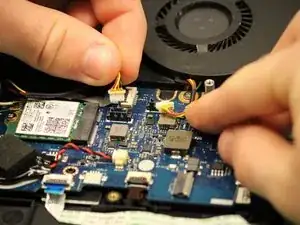

    • Grab marked cables and pull up to unplug.

  7. dVYjIUHFvPURRANr
    dVYjIUHFvPURRANr
    TFxY1RwMCCepse2e

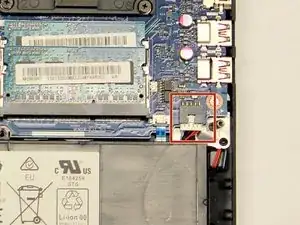

    • Grab marked cables and pull out to unplug.

  8. eHRjmJoYf4ZOe6fh
    eHRjmJoYf4ZOe6fh
    imbTqLGIsKWUNXQU
    WEsispOgvaqpxQvG

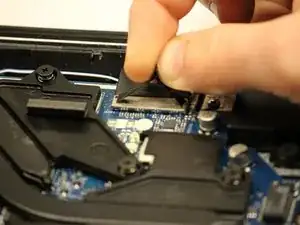

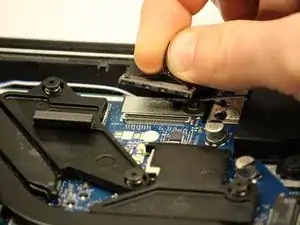

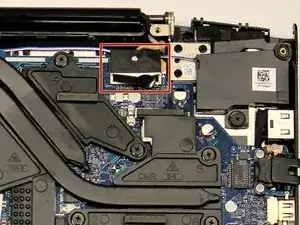

    • Grab the black tab on top of the cable and pull up to unplug.

  9. 2TtN6NXugfhkYiuH
    2TtN6NXugfhkYiuH
    YZviGKDXmsaCoi5f
    KCewtfSVopP5kpn6

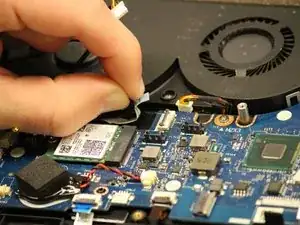

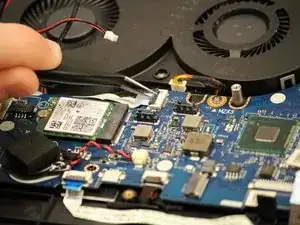

    • Lift the black tab on top of the marked cable.

    • Grab the colored tab on the cable and pull to remove the cable.

  10. eHO5Sw2uKoNZQc5y
    eHO5Sw2uKoNZQc5y
    AZHeqGayBYOMMvoV
    Z6mth5Ya4Ofxace5

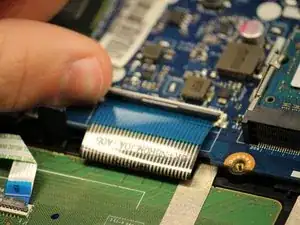

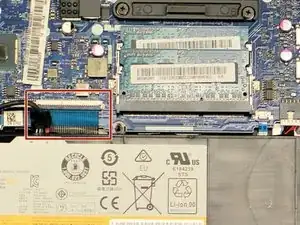

    • Lift the black tab on top of the marked cable.

    • Grab the colored tab on the cable and pull to remove the cable.

  11. JlYCShGbO1GMpWGd
    JlYCShGbO1GMpWGd
    VNuVqNAenSqusgYB
    UBj6vvIoBMvVdGFW

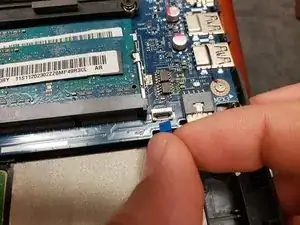

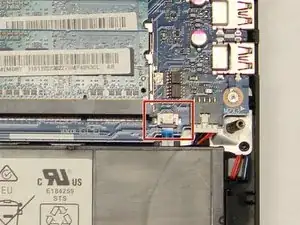

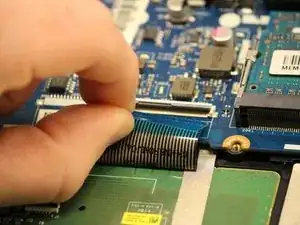

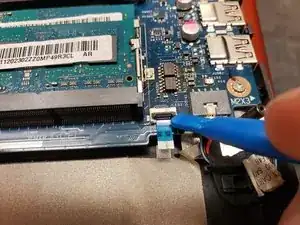

    • Lift the black tab on top of the marked cable.

    • Grab the colored tab on the cable and pull to remove the cable.

  12. lAcjvPqqqGAc155p
    lAcjvPqqqGAc155p
    J2cBs4HeXpryaVit
    JgNwyaLPVT3XtbEQ

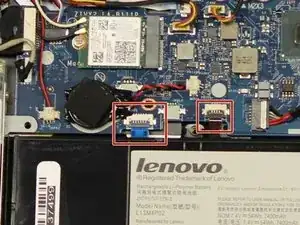

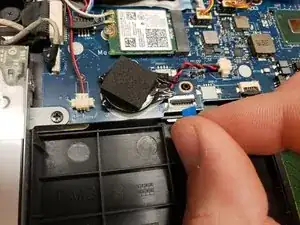

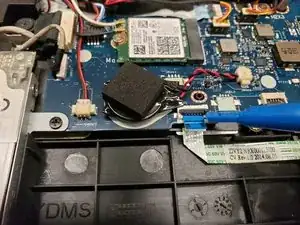

    • Lift the black tab on top of the marked cables.

    • Grab the colored tab on the cables and pull to remove the cables.

  13. KHbkO3xSUuQGBEXE
    KHbkO3xSUuQGBEXE
    b52PW3WStHCMFn6h
    c5whNqfEVefnViJR

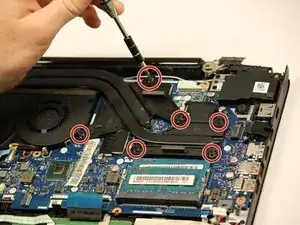

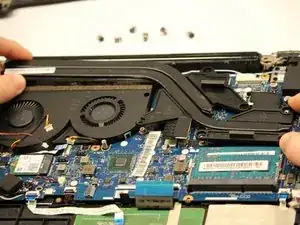

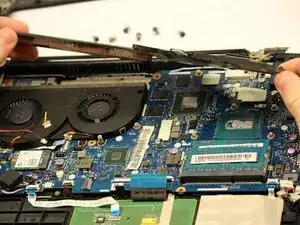

    • Use a Phillips #1 screwdriver to unscrew and remove the six 7 mm screws from the heat sink.

    • Grab and lift the heatsink off the motherboard.

  14. ayDJYYlvFVG1kApr
    ayDJYYlvFVG1kApr
    Immug6ZCUMvy1oSs
    wQvxY4f1Ffomxadi

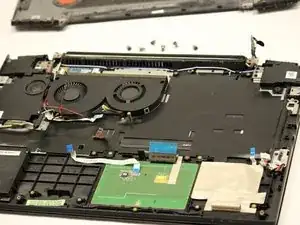

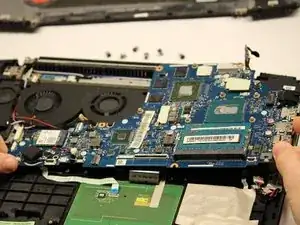

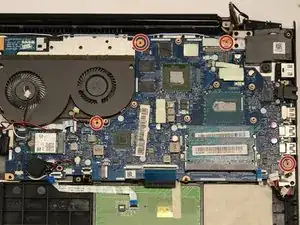

    • Use a Phillips #1 screwdriver to unscrew and remove the four 6 mm screws marked with red circles on the motherboard.

    • Grab and lift the motherboard up and out from the laptop.

Abschluss

To reassemble your device, follow these instructions in reverse order.
