In this guide, the reader will go through the necessary instructions needed to replace a non-functioning trackpad in the Lenovo Y50-70 Touch Laptop. This specific repair does not require any previous knowledge about computers and can be completed by a beginner using only a single Phillips #1 screwdriver and a small plastic prying tool.
When performing this repair, ensure you are in a static free environment so as not to provide an electrical shock to the computer and possibly further damage the device.
Werkzeuge
-
-

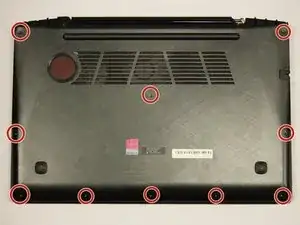

Use a Phillips #1 screwdriver to unscrew and remove the ten 6 mm screws on the back of the laptop.
-

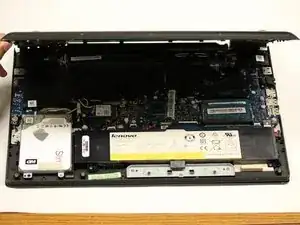

Grab and pull off the back.
-
-
-

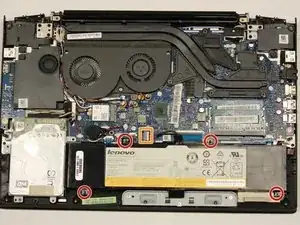

Use a Phillips #1 screwdriver to unscrew and remove the four 6 mm screws that secure the battery.
-

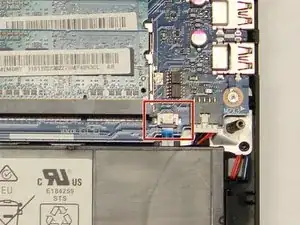

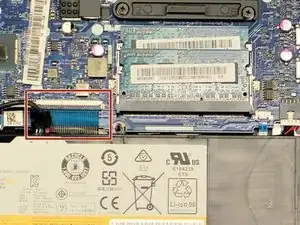

Grab the battery cable and gently pull it free from the cable connector.
-

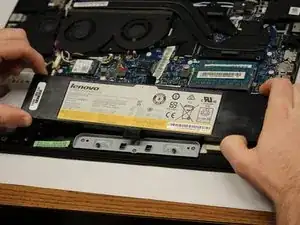

Remove the battery from the laptop.
-
-
-

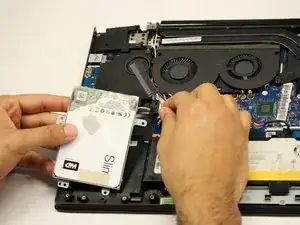

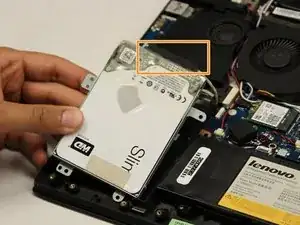

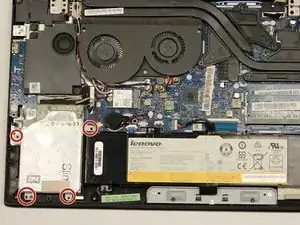

Use a Phillips #1 screwdriver to unscrew and remove the four 6 mm screws that secure the hard drive.
-
Grab the marked cable attached to the hard drive, and gently pull to unplug.
-
Remove the hard drive from the laptop.
-
-
-

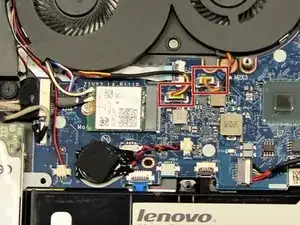

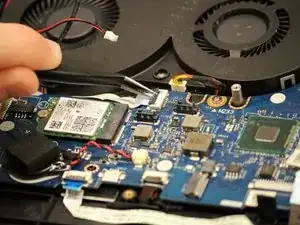

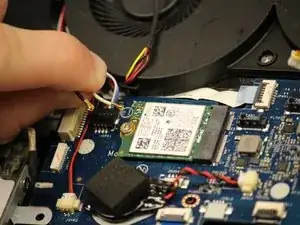

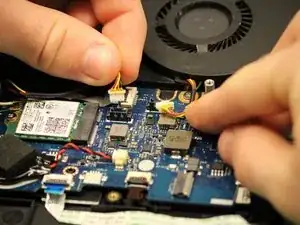

Grab the top set of marked cables and pull up to remove them.
-

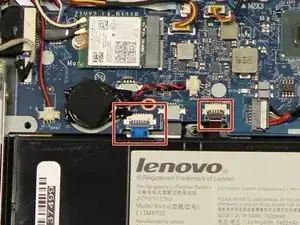

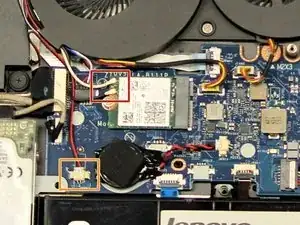

Grab the lower marked cable and pull it out from the plug.
-
-
-

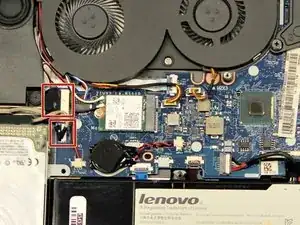

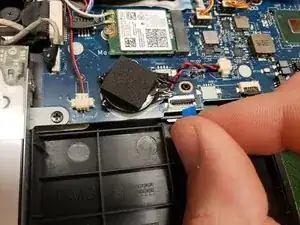

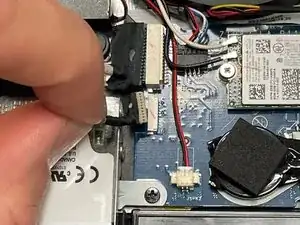

Lift the black tab on top of the marked cable.
-

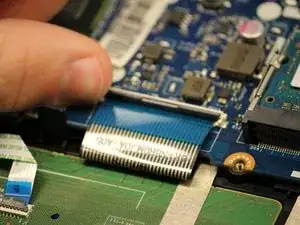

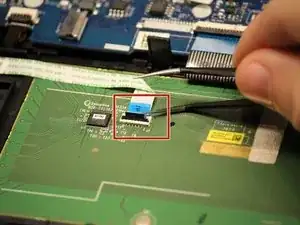

Grab the colored tab on the cable and pull to remove the cable.
-
-
-

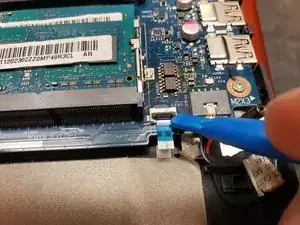

Lift the black tab on top of the marked cable.
-

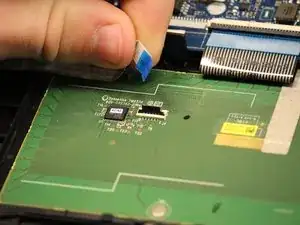

Grab the colored tab on the cable and pull to remove the cable.
-
-
-
Lift the black tab on top of the marked cable.
-

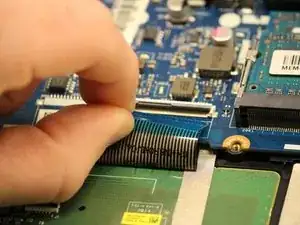

Grab the colored tab on the cable and pull to remove the cable.
-
-
-
Lift the black tab on top of the marked cables.
-
Grab the colored tab on the cables and pull to remove the cables.
-
-
-

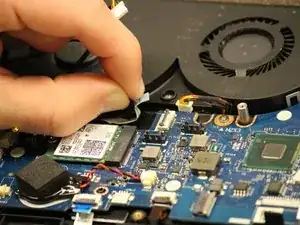

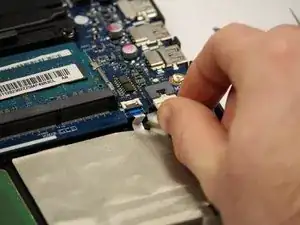

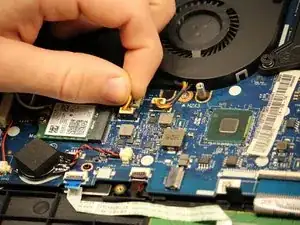

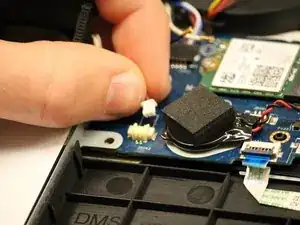

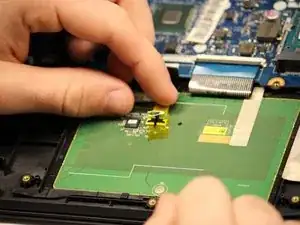

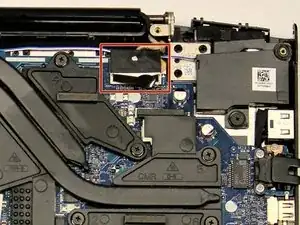

Carefully remove the yellow tape on top of the cable.
-

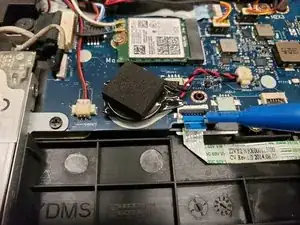

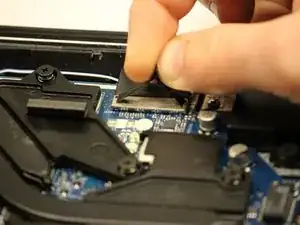

Lift the black tab on top of the marked cable.
-
Grab the colored tab on the cable and pull to remove the cable.
-
-
-

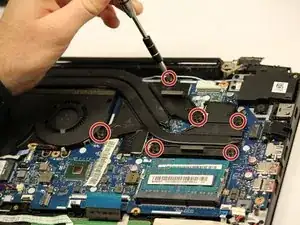

Use a Phillips #1 screwdriver to unscrew and remove the six 7 mm screws from the heat sink.
-

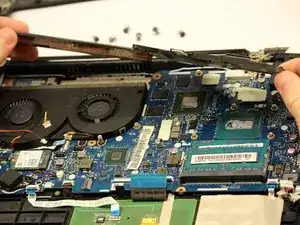

Grab and lift the heatsink off the motherboard.
-
-
-

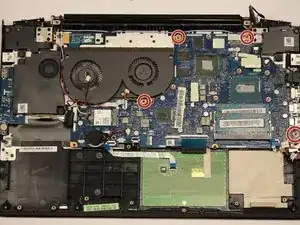

Use a Phillips #1 screwdriver to unscrew and remove the four 6 mm screws marked with red circles on the motherboard.
-

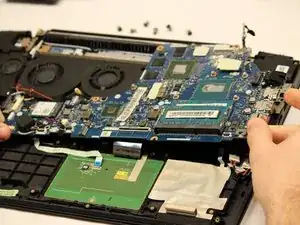

Grab and lift the motherboard up and out from the laptop.
-
-
-

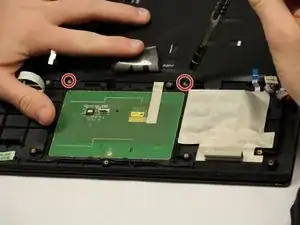

Use a Phillips #1 screwdriver to unscrew and remove the two 6 mm screws at the top of the trackpad.
-

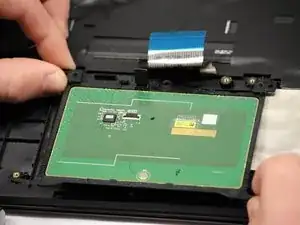

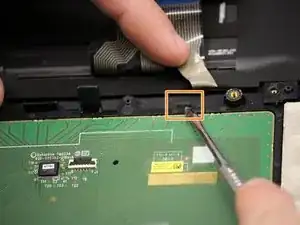

Push on the marked clips at the top of the trackpad.
-
Then, when undone from clips, lift the trackpad out from the laptop.
-
To reassemble your device, follow these instructions in reverse order.
