Einleitung

The part of the chassis that the LCD assembly hinges are fastened to are extremely weak and break very easily. This guide will show you how to disassemble everything on the unit except the LCD assembly for installation in a replacement chassis.

  1. fWYNtZCNAGtScJwo
    fWYNtZCNAGtScJwo

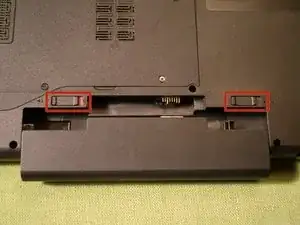

    pMcdIlRiBBFBWO4P

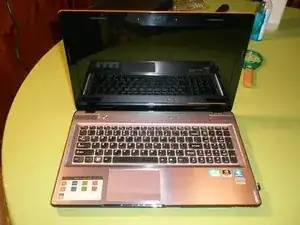

    • From the bottom of the unit: Slide the 2 latches to the outer edges and remove the battery.

  2. Rb2LvbE5XwBcOJHJ
    Rb2LvbE5XwBcOJHJ
    TafCovmwaVavS1LJ
    aZ5FZqkWXhyHG6Y6

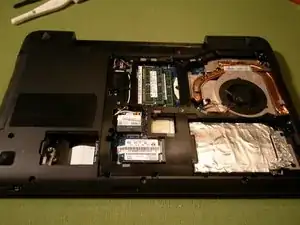

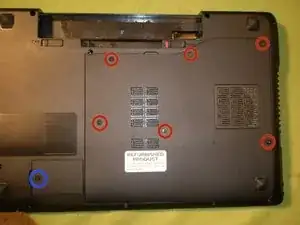

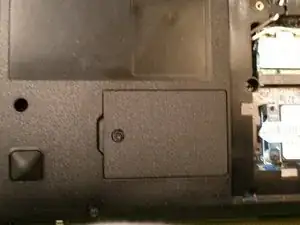

    • Completely loosen the 6 captive screws from the rear access panel, unsnap and remove the panel.

    • Completely loosen the 1 captive screw from the cable TV card cover, unsnap and remove the cover.

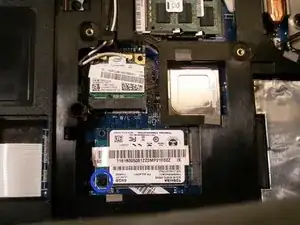

  3. JIpfAH5uaEYIn1Ak

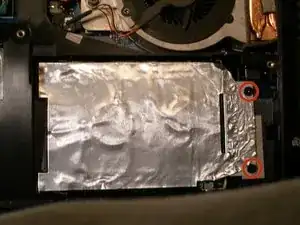

    JIpfAH5uaEYIn1Ak
    LDqQSvlKbsvSsaMT
    LbkhXsbxPHnxKWZp

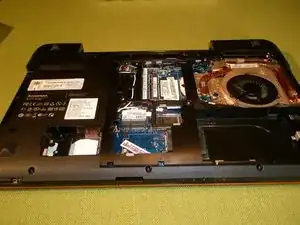

    • Remove the 2 retaining screws from the magnetic hard drive, slide the drive out of the socket and remove from the unit.

    • Remove the 1 retaining screw from the solid state hard drive, slide the drive out of the socket and remove from the unit.

  4. M4QDPPiboWGPVaWE
    M4QDPPiboWGPVaWE

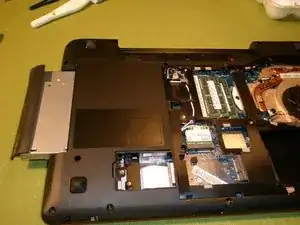

    yRVinJsGRfBPXWNi

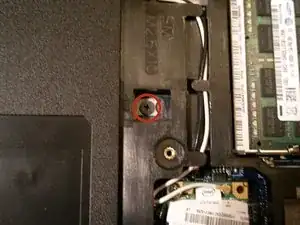

    • Remove the 1 retaining screw from the optical drive and slide it out of the unit.

  5. EkZvjnA5iUnFwDNP
    EkZvjnA5iUnFwDNP
    PrRDJgMQXREIHbQq

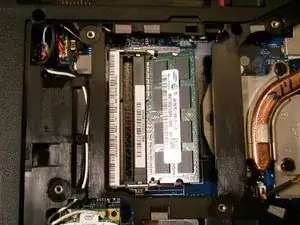

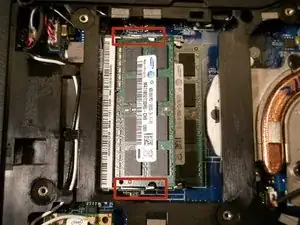

    • Push the retaining clips on both sides of the DIMM memory cards to release and remove them from the unit.

  6. oZyTMGXUHPicgnj6
    oZyTMGXUHPicgnj6
    TtFfk2bqWdFwLPZK

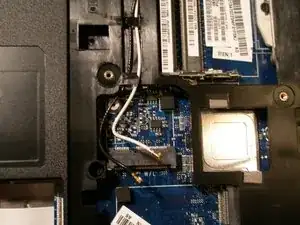

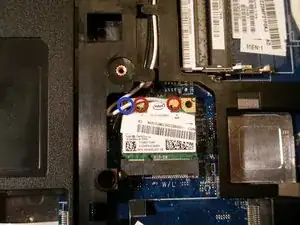

    • Gently pry upward on the 2 antenna wires with a plastic pry tool or guitar pick to unsnap them from the wireless LAN card.

    • Remove the 1 retaining screw from the wireless LAN card and remove it from the unit.

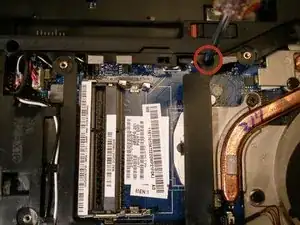

  7. CuSQEwDLKZ2T2vSP
    • Remove the single keyboard retaining screw. This screw and the screw that held the optical drive in place also attach to the back of the keyboard.

  8. SZ4idoREKgAXnAuB
    SZ4idoREKgAXnAuB
    6CBEyLlZ1u2poLDl
    IIlHfpZxYolTMPex

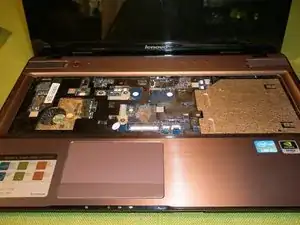

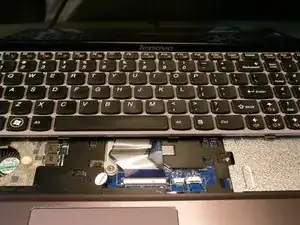

    • Using a plastic pry tool or guitar pick, carefully lift and unsnap the top of the keyboard starting from one of the top corners. Unsnap the sides of the keyboard and carefully move it forward to expose the attached ribbon cable.

    • Push the ribbon cable fastener forward to release the cable, then slide the cable from the socket and remove the keyboard from the unit.

  9. wrnIBajpVlPRQZQI

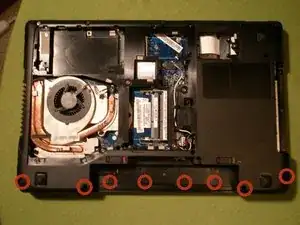

    • From the bottom of the unit: Remove the 8 retaining screws on the hinge side of the chassis.

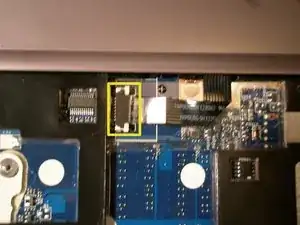

  10. Bh651nnEUmKkOeev
    Bh651nnEUmKkOeev
    AYEXt3uuatZL6GSR

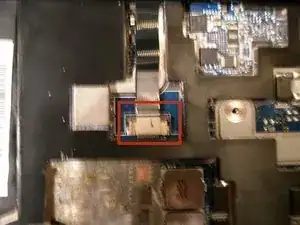

    • Move the ribbon cable fastener forward and disconnect the power button cable from the system board.

    • Move the ribbon cable fastener forward and disconnect the status LED cable from system board.

  11. DGASoOqmuxPDQBas
    DGASoOqmuxPDQBas

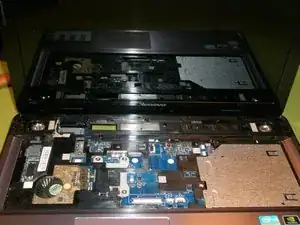

    ZEPAUwEUXVxHxcxX

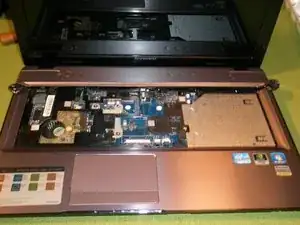

    • Using a plastic pry tool or guitar pick, carefully unsnap and lift the power button/status LED cover and remove it.

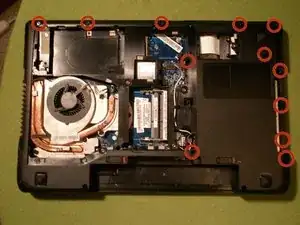

  12. RSZHMHvVLQ1IseSL
    • Remove the remaining 12 retaining screws from the bottom of the chassis.

  13. V1MVkLUAVdqpugcv
    V1MVkLUAVdqpugcv

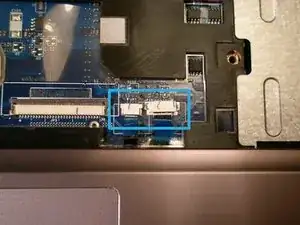

    UHuKhvbYAW6lDMuj
    CXhUiaxJCNANXDXI

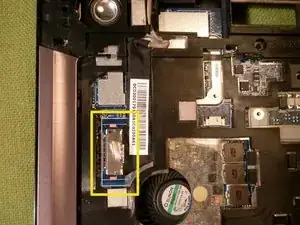

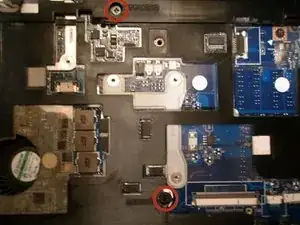

    • Remove the 2 retaining screws from the top bezel (located where the keyboard used to be).

    • Detach the touchpad and touch inductive panel cables from the system board (there are no fasteners on these cables, just pull them free from the sockets).

    • Detach the LVDS cable from the system board by gently lifting the tape and pulling to the right to unplug the cable.

    On my example, the retaining screw nearest the keyboard connector was hidden by a Lenovo sticker.

    Philip Le Riche -

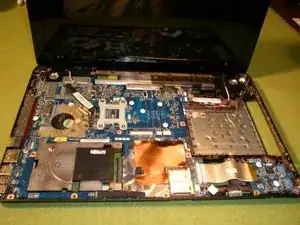

  14. MqdbmVuBJHlmpPjW
    MqdbmVuBJHlmpPjW
    EwAbwTXVCHNUmjFH

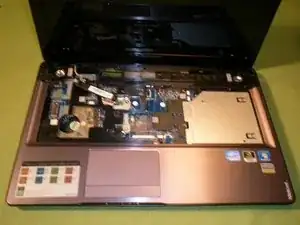

    • Using a plastic pry tool or guitar pick, carefully unsnap the top bezel and remove it.

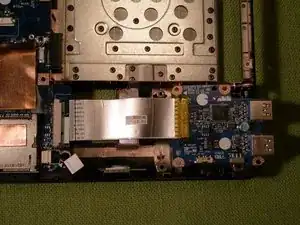

  15. 2DcIFyrMDfsvYHcV
    2DcIFyrMDfsvYHcV
    UBK2KeTYBduNtuTd
    cTXTfwPkCqmHenwP

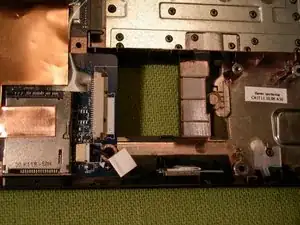

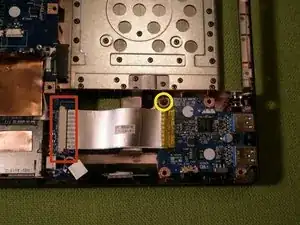

    • Move the ribbon cable fastener forward and disconnect the USB board cable from the system board.

    • Remove the single retaining screw and lift the USB board from the chassis to remove it.

    hope somebody replies to my question. Is there a way to put a usb 3 pcb board in a lapotop that came with usb 2? is the same laptop as this one, only it came with usb 2 on dvd side. thank you

    Mihai Surugiu -

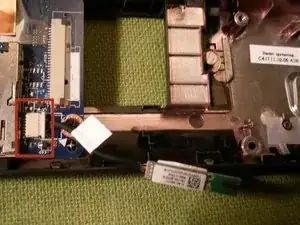

  16. rxGxGJM1gTAWDX5b
    • Unplug the Bluetooth cable from the system board and lift the module from the chassis to remove it.

  17. pWNSghWjwZ2DtynH

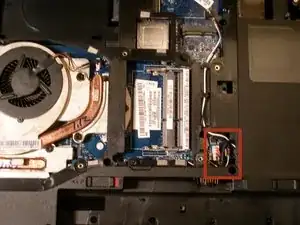

    • From the bottom of the unit: Unplug the DC power and Speaker cables from the system board.

  18. RjVHjEeYNyeWDk4i
    RjVHjEeYNyeWDk4i
    xSi4QpldB124PQYi
    QZlJZBuDVJUokawJ

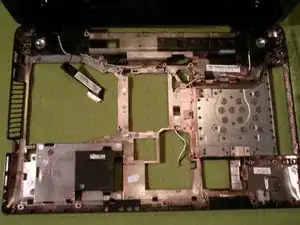

    • From the top of the unit: Remove the 3 retaining screws on the Motherboard.

    • Loosen the screw on the left LCD hinge and carefully lift the Motherboard from the chassis.

  19. 5sYBMFuGgvN1uVCA
    • From the bottom of the unit, release the antennae cables from the guides.

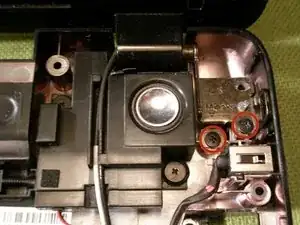

  20. IxKsAJfMfkGhJW5X
    IxKsAJfMfkGhJW5X
    JOPVEG2InHBvawPT

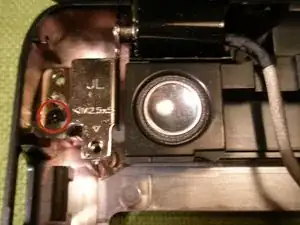

    • Remove the 3 remaining screws on the LCD hinges and carefully lift the LCD unit from the chassis.

  21. u6HGKHBGUnuXZvdX

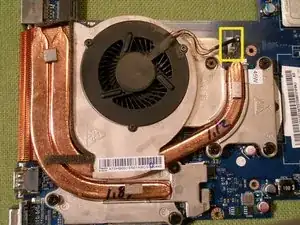

    u6HGKHBGUnuXZvdX

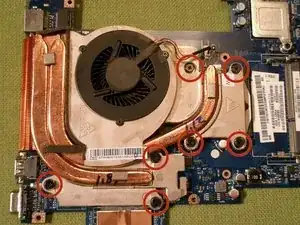

    GGhbHjooeZVmirZR
    Ya1vuYUFdZrJHiTV
    • Unplug the fan cable from the Motherboard.

    • Remove the 7 retaining screws and springs on the Heatsink assembly in the order stamped on the Heatsink and lift the assembly free from the system board.

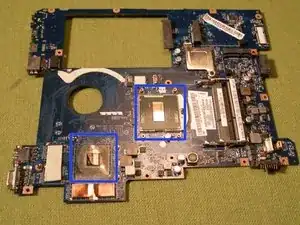

    • Clean the old thermal compound from the CPU and the GPU. Apply a thin film of a quality thermal paste such as "Arctic Silver" when reassembling the unit. Leave all thermal pads in place for reassembly.

  22. OldVjfVaFcUpEVxJ
    OldVjfVaFcUpEVxJ
    H6ImIKktDnxcNiFZ
    e6XY66kCr2XhmDYJ

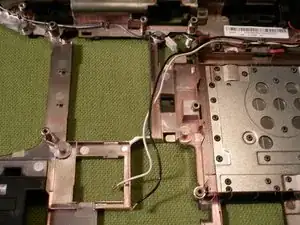

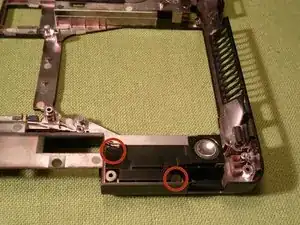

    • Remove the 4 retaining screws from the speakers, release the speaker cables from the guides and carefully lift the speakers from the chassis to remove them.

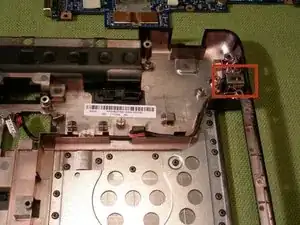

  23. ZYAMEhLRuybwusyI
    ZYAMEhLRuybwusyI
    ThBDBEIwaL4e3D5O

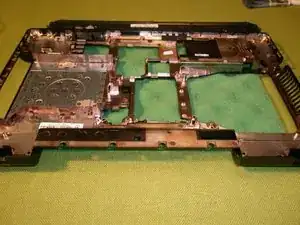

    • Release the DC Power cable from the guides and carefully lift the DC connector from the chassis to remove it.

Abschluss

To reassemble your device, follow these instructions in reverse order.
