Lenovo Yoga 11e Chromebook Battery Replacement

Geschrieben von: Corey Meyer
  • Kommentare: 1
Lenovo Yoga 11e Chromebook Battery Replacement

Schwierigkeitsgrad

Easy

Schritte

3

Zeitaufwand

10 - 15 Minuten

Einleitung

  1. 1GtxGjuxYd6Kf1Zk

    • There will be 7 Philips head screws on the bottom which will need to be removed to gain access to the battery

    • NOTE: You may void your warranty completing this replacement

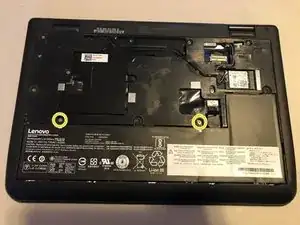

  2. 1rD5jigJeF4AUHVk

    • There will be 2 other Philips screws under the cover there should also be two arrows pointing at each screw that needs to be removed.

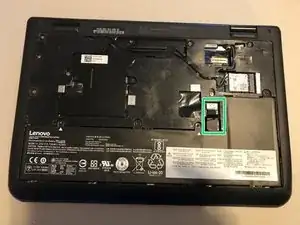

  3. JmZ6DubUrxhyxYjW
    JmZ6DubUrxhyxYjW

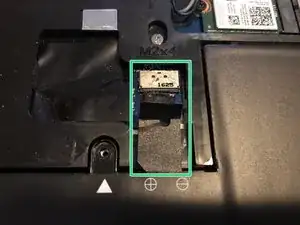

    tHvZPjoMbbKijwo2

    • Pull up the battery slightly by the tab and pull back

    • Remove the connector from the motherboard and pull the battery up and away from the board

    • Make sure not to pull all the way back as the battery is still connected to the motherboard

    • The computer may not boot when you try to turn it on, plug it into its power supply and it should boot.

    the battery connector does not "pull up". you pull the connector straight back toward you. lift up, and youll snap the board connector, like it did

    Jay Allan -

Abschluss

Congratulations! You hopefully have successfully completed this guide! To reassemble your device follow the steps backwards.
