Einleitung

  1. 5G1HxIIZMWtVcKap
    • There will be 7 Philips head screws on the bottom which will need to be removed to gain access to the battery

    • NOTE: You may void your warranty completing this replacement

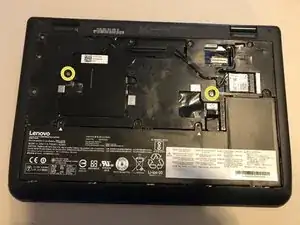

  2. InNLHHTE54m2SW3e
    • There are two screws that will need to be removed to access the keyboard.

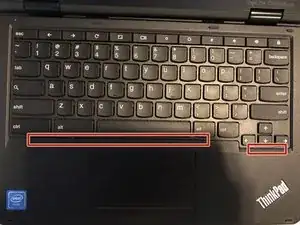

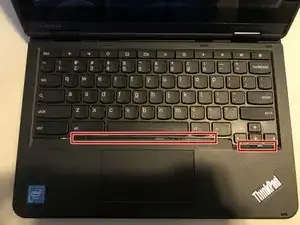

  3. qG6E4M5xWSNksTNV
    qG6E4M5xWSNksTNV
    rU2BtIqGJDebfRxr
    • Next, flip the laptop over and open it up. The keyboard can be easily removed by pushing it back from the front. I suggest using a jimmy tool to slip into the tiny gap to push it back.

    • Look closely at the two images you'll notice a slight gap at the bottom if you did this step correctly

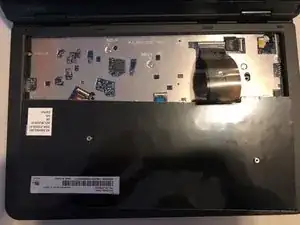

  4. 6DbDb6vdXcQjkLEU
    • Pull slightly up from the keyboard but NOT all the way, the ribbon cable is still connected to the motherboard

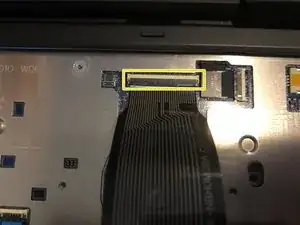

  5. rMuEMvagWnqiLpRY
    rMuEMvagWnqiLpRY
    5IWETVNUCqqkSJ62
    VHlAB1eXng1RDg3T
    • Use a plastic pry tool to lift up the plastic clip holding down the ribbon cable. Be very gentle with it so it doesn't break

Abschluss

Congratulations you’ve successfully removed the keyboard! To reassemble your device, follow these instructions in reverse order.
