Lenovo Yoga 2 11" 20428 Bluetooth Module Replacement

Geschrieben von: Joshua Thomas Tyler

Kommentare: 0

Lenovo Yoga 2 11" 20428 Bluetooth Module Replacement

Schwierigkeitsgrad

Moderate

Schritte

Zeitaufwand

5 Minuten

Einleitung

If your Bluetooth module is not working correctly, it may need to be replaced. This guide shows the step-by-step process of removing and/or replacing the blue tooth module in a Lenovo Yoga 2 11'“ 20248. You will need a Phillips head screw driver that corresponds to the screw size listed in the guide.

Werkzeuge

Schritt 1

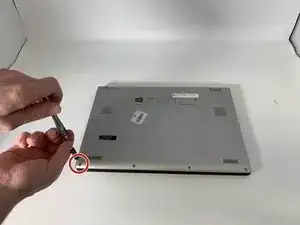

Flip the computer over so the bottom is facing up.
Remove the ten 6mm screws with a T5 Torx security screwdriver.

Schritt 2

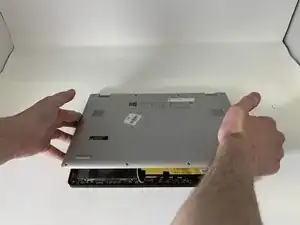

Carefully remove the back panel by gently prying the panel from the front to the back.
Take care not to pull any wires or crack the outer shell.

Schritt 3

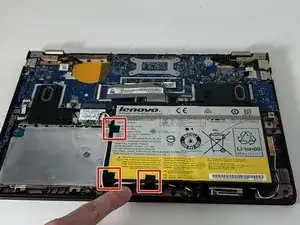

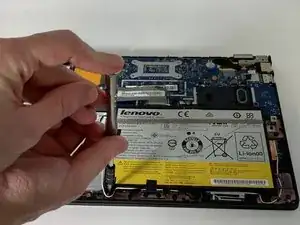

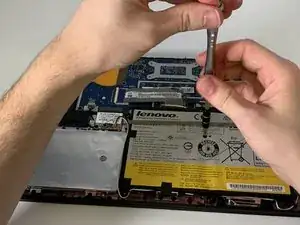

Remove the six 3.3 mm Phillips #000 screws around the perimeter of the battery.
Remove the single 6.75 mm Phillips #000 screw from the center of the battery.

Schritt 4

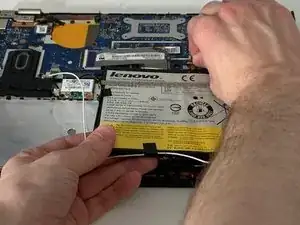

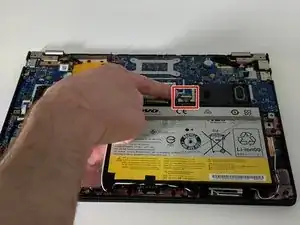

Remove the pieces of tape securing the Bluetooth/Wi-Fi antenna.

Schritt 5

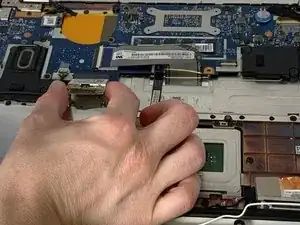

Grip the base of the connector with your fingers or pliers, and gently pull the connector straight back towards you to remove it.
If possible, do not to pull the connector out by the wires, as this can damage the connector.
