Lenovo Yoga 2 11" 20428 Display Replacement

Geschrieben von: Devin McCuen
  • Kommentare: 0
Lenovo Yoga 2 11" 20428 Display Replacement

Schwierigkeitsgrad

Moderate

Schritte

10

Zeitaufwand

15 Minuten

Einleitung

A display replacement may be required if your Lenovo Yoga 2 11" 20428 has a cracked or faulty screen. If your display has screen burn in, or any other forms of discoloration, replacing the display is a good fix.

Before beginning, turn off your device and disconnect it from any external power source.

It is important to lightly remove screws since not doing so may result in the threads being worn down. Remove all circuit boards carefully and keep away from water.

Step 6 requires you to unplug from the circuit board. Do so carefully as damaging the teeth may result in extra repair or replacement of the part

Step 7 requires you to pry the circuit board from the display cover. Do so carefully as damaging the teeth may result in extra repair or replacement of the part.

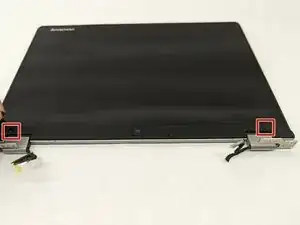

  1. WteGllOLWGAVMTje
    WteGllOLWGAVMTje
    Ow5Cf1TLiGso1NIv

    • Remove the plastic square covers on the hinge cover.

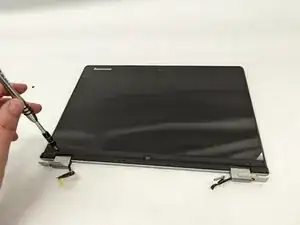

  2. 1hiyfHLADidYSjkk
    1hiyfHLADidYSjkk
    NXteWZBgtPaHPKCA

    • Remove the two 3.8 mm screws from the hinge cover.

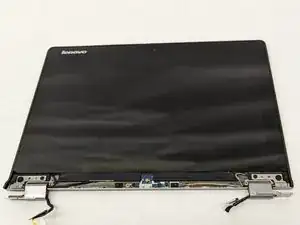

  3. SEcfdGhgNOJ2geVU
    SEcfdGhgNOJ2geVU
    UKJ4ylQF46TNQPDw

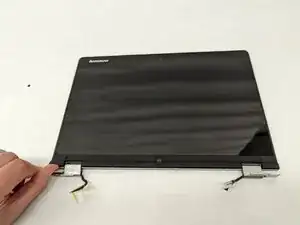

    • Remove the hinge cover.

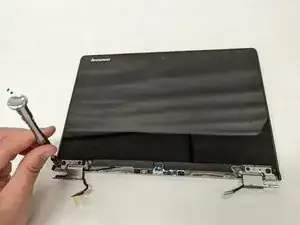

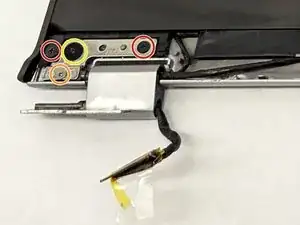

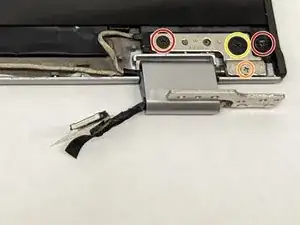

  4. THE21ZamLS3fmOnt
    THE21ZamLS3fmOnt
    GDRMCDHRAaLcQElk
    E1ekOtToplFcsmXt

    • Remove the 2.8mm screws.

    • Remove the 5mm screws.

    • Remove the 2.4mm screws.

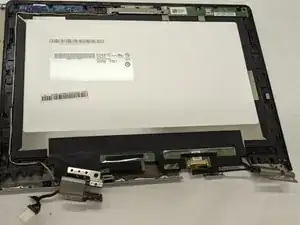

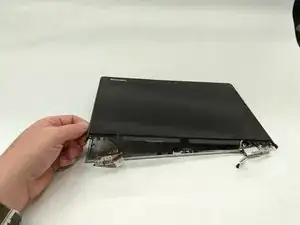

  5. xfBhGTTgf23xoygV
    xfBhGTTgf23xoygV
    nWEJ5SAkTE31fMEc

    • Remove the front cover of the display

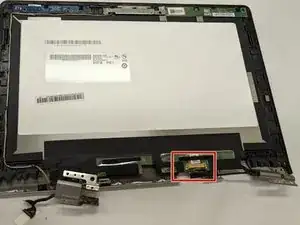

  6. Iocf1qgJlS6cpC5I

    • Unplug the button sensor board.

    • Do not damage the teeth. Damaging the teeth of the sensor board may require you to replace the part.

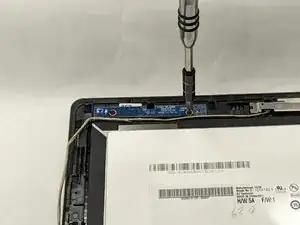

  7. eLK45AtYNPAElNYW
    eLK45AtYNPAElNYW
    ppMYBBtJgjxiXcVo

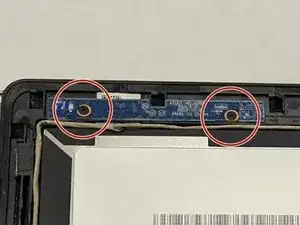

    • Remove the 2.1 mm screws from the brightness sensor board.

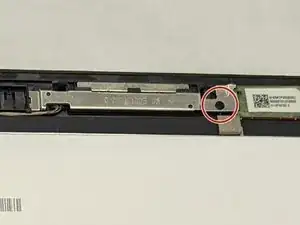

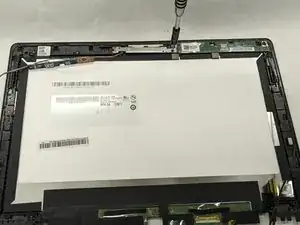

  8. r6lVSU4LhacTnNJN
    r6lVSU4LhacTnNJN
    5YFo51bhGxqrCSC4

    • Remove the 3.3 mm screw on the camera.

    • Removal of the camera will result in the connecting wire to be disconnected as well

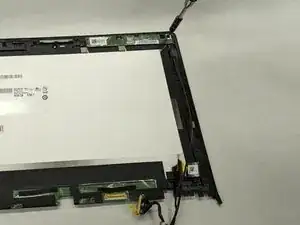

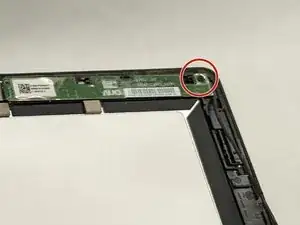

  9. Cl2aUxvX5CTkpsPN
    Cl2aUxvX5CTkpsPN
    MfYtPw3tE1m2o1eH

    • Remove the 3.3 mm screw on the touch control board.

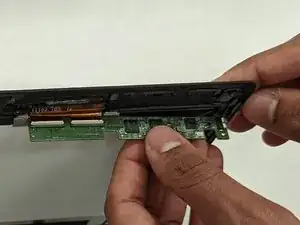

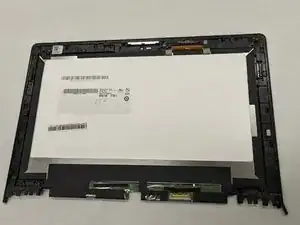

  10. AARdNRRuMEj33RQw
    AARdNRRuMEj33RQw
    XRhrkdbYsy4MAF2x

    • Remove the touch control board

    • Do not damage the teeth. Damaging the teeth may call for replacement of the part.

    • Removal of the touch control board will result in the connecting wires to be removed as well

Abschluss

To reassemble your device, follow these instructions in reverse order.
