Lenovo Yoga 2 11" 20428 Keyboard Replacement

Flip the computer over so the bottom is facing up.

Remove the ten 6mm screws with a T5 Torx security screwdriver.

Carefully remove the back panel by gently prying the panel from the front to the back.

Remove the six 3.3 mm Phillips #000 screws around the perimeter of the battery.

Remove the single 6.75 mm Phillips #000 screw from the center of the battery.

Remove the pieces of tape securing the Bluetooth/Wi-Fi antenna.

Grip the base of the connector with your fingers or pliers, and gently pull the connector straight back towards you to remove it.

Carefully remove the battery from the laptop.

Unscrew the four 1.7 mm Phillips #000 screws.

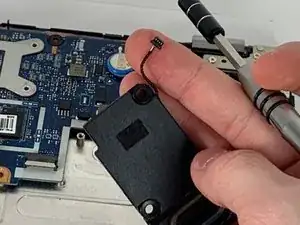

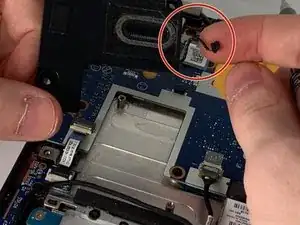

Detach the speaker wire and remove the speaker.

Remove the four 3.3 mm Phillips #000 screws securing the hard drive to the panel.

Lift the hard drive up, turn it over, and remove the connection.

Remove the two 3.3 mm Phillips #000 screws.

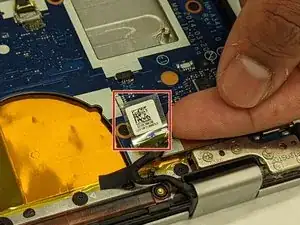

Grab and gently remove the Bluetooth module.

Using your finger nail or a thin pry tool, unlock and remove the cables.

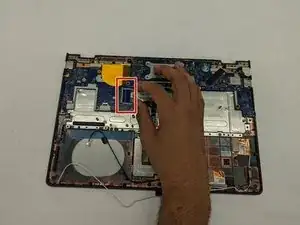

Lift the tape and pull the cable connector back to remove it from the motherboard.

Remove the eight 3.8mm screws with a Phillips #000 screwdriver.

Using your fingernail or a thin pry tool, lift the white bar on the cable to release it.

Pull the cable out.

Using a fingernail or a thin pry tool, lift the white bar on the cables.

Pull the cable out of the connector.

Lift the wide cable in the center to reveal the port for the small cable underneath.

Using a fingernail or a thin pry tool, lift the white bar to release the cable.

Remove the cable from the connector.

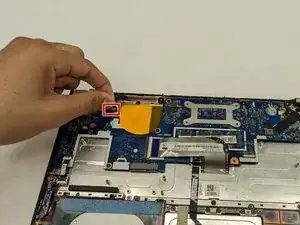

Lift the tape up to separate from the motherboard.

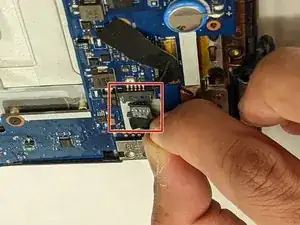

Using a fingernail or a thin pry tool, lift the connector upwards to separate from the motherboard.

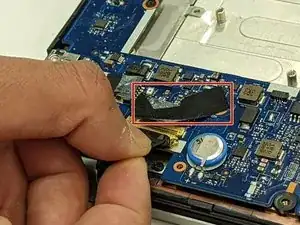

Remove the black tape covering the connector.

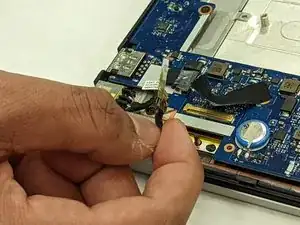

Pull straight backwards to remove from the motherboard.

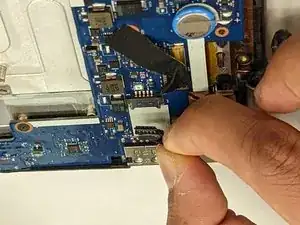

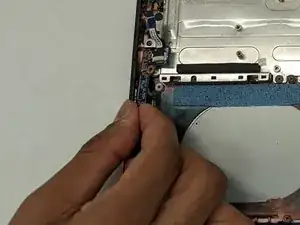

Pull the cable straight backwards to remove it.

Pull the cable straight backwards to remove it.

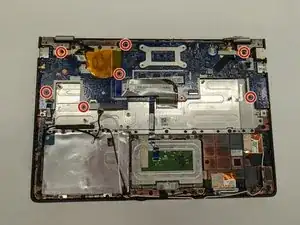

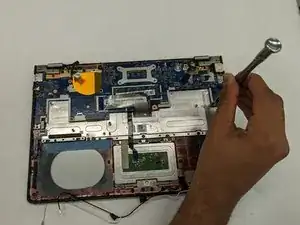

Remove the seven 3.6mm screws using a Phillips #000 screwdriver.

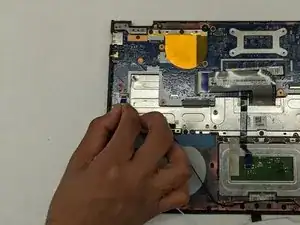

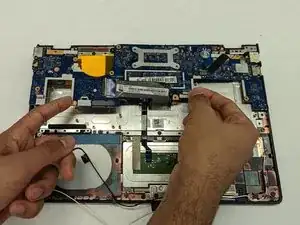

Lift and pull backwards to remove the motherboard.

Unscrew and remove the 3.3 mm Phillips #000 screw that secures the daughterboard.

Remove the daughterboard.

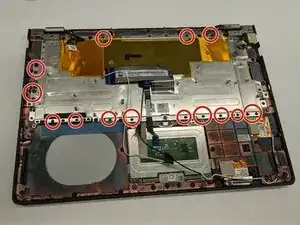

Take off the black clips.

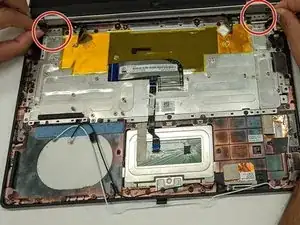

Lift up the two metal piece that are coming from the display.

Lift up the metal piece.

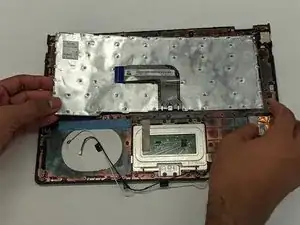

Lift up the keyboard part.
