Lenovo Yoga 2 11" 20428 TouchPad Replacement

Geschrieben von: Joshua Thomas Tyler
  • Kommentare: 1
Lenovo Yoga 2 11" 20428 TouchPad Replacement

Schwierigkeitsgrad

Moderate

Schritte

11

Zeitaufwand

6 Minuten

Einleitung

This guide will show to how to properly remove and replace the touchpad of a Lenovo Yoga 2 11 “ with the serial number 20428.

  1. BlDRfGUIjGyAHOcJ
    BlDRfGUIjGyAHOcJ
    foZnqDbv2fPHYSj4
    LKPMAu2Epcj6JaII

    • Flip the computer over so the bottom is facing up.

    • Remove the ten 6mm screws with a T5 Torx security screwdriver.

  2. 3PMAoQikg6muTIX2

    • Carefully remove the back panel by gently prying the panel from the front to the back.

    • Take care not to pull any wires or crack the outer shell.

  3. cgltnQ1sTNTXSZEc
    cgltnQ1sTNTXSZEc
    gVpBLJrsoxpATkUZ
    5Y52eeDG3oFEkCvw

    • Remove the six 3.3 mm Phillips #000 screws around the perimeter of the battery.

    • Remove the single 6.75 mm Phillips #000 screw from the center of the battery.

  4. XhIjHc5Ucr6ODVOX

    • Remove the pieces of tape securing the Bluetooth/Wi-Fi antenna.

  5. aPUPqDXyldQOuaXB
    aPUPqDXyldQOuaXB
    wV1WuIEK16GluaOT

    • Grip the base of the connector with your fingers or pliers, and gently pull the connector straight back towards you to remove it.

    • If possible, do not to pull the connector out by the wires, as this can damage the connector.

  6. UpByrgi6XbBP42EQ
    UpByrgi6XbBP42EQ
    OpRNsmcUY3mZm3Br

    • Carefully remove the battery from the laptop.

    • Take care not to pull out the Bluetooth antenna while removing the battery.

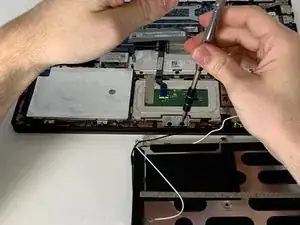

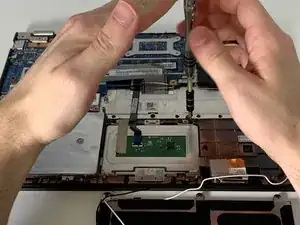

  7. Qw3qfetIs5Gbmevl
    Qw3qfetIs5Gbmevl
    JtGKHyyj6nGIqckR
    qh5HBWJklMcNJJrG

    • Remove seven 2mm Phillips head #00 screws.

  8. Ak1PBakmREgBsP2O

    • The eighth screw at the top left is covered by a piece of silver tape. Gently peel the tape back and remove the screw.

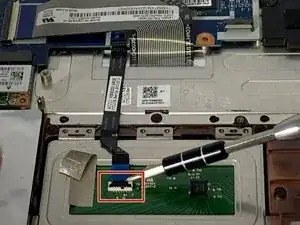

  9. iFm3ICeSKrxaODux

    • There is a small black tab holding the cable for the touchpad in place. Flip this tab up using a nylon spudger to unlock the connector.

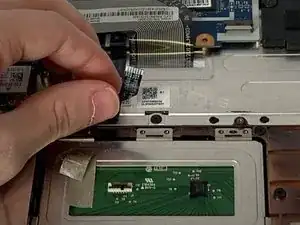

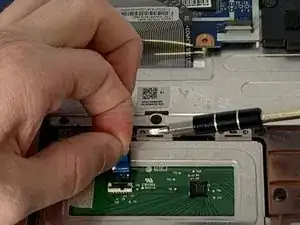

  10. eXe4bWhBqhlZukHB
    eXe4bWhBqhlZukHB
    JwJA1KY4VjmuQOvU

    • There is a blue plastic tab connected to the cable. Use this to gently pull the cable directly back and out of the connection point on the touchpad. If the black tab has been unlocked this should slide out without resistance.

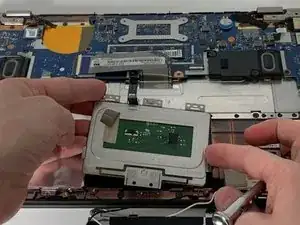

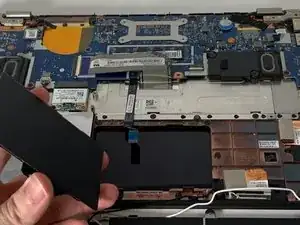

  11. aoETrNBHHAgqjcoK
    aoETrNBHHAgqjcoK
    RCnBhPSdBweqHEZp

    • Carefully lift the touchpad up and out of the laptop. If it gets caught you may gently wiggle it as you lift to safely remove it.

    • Be careful not to pull on the touchpad if it gets stuck as this may damage the laptop and/or the touchpad.

Abschluss

To reassemble your device, follow these instructions in reverse order.

Tinte & Feder

Joshua Thomas Tyler

Mitglied seit: 18/03/19

681 Reputation

Ein Kommentar

Correction to the tools needed. The screws for the bottom panel are T5 Torx, not T4 Torx. T4 will strip the screws.
