Lenovo Yoga 2 11" Battery Replacement

Geschrieben von: Abbey Hickmann
  • Kommentare: 5
Lenovo Yoga 2 11" Battery Replacement

Schwierigkeitsgrad

Easy

Schritte

6

Zeitaufwand

10 Minuten

Einleitung

As time passes, a battery loses its capability to hold a single charge. This guide will aide users in removing the back panel to reach and replace the faulty battery. Remember to turn the laptop off prior to the repair.

  1. vOCrqSFVNUFafXR4

    • With a T5 Torx screwdriver, remove ten 6.35 mm screws from the back of the laptop.

  2. MdCCCR5lEwTUlMSn

    • Carefully separate back panel from laptop.

  3. ljX34MHKt2nlcEMo

    • Once you have completed the prerequisite guide, locate the battery of the laptop. Remember to disconnect the battery.

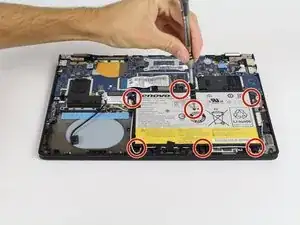

  4. IFPffpk2NFliuQTA

    • Using a #00 Philips Precision Screwdriver, remove the seven 3.175mm screws that hold the battery in place (six on the outside, one in the middle).

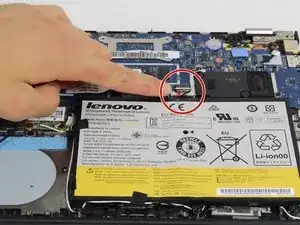

  5. bCFgtyxrTjWHAabD
    bCFgtyxrTjWHAabD

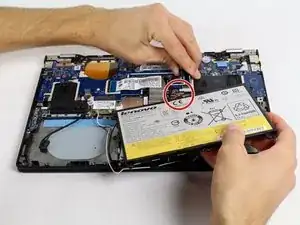

    cZYIFc2FYSEUQreP

    • There will be a clip that connects the battery to the rest of the laptop. Unclasp this clip by inserting tweezers into the connection to completely free the battery.

    The wire removal is mentioned in step 6, but not shown or discussed. The black antenna wire was taped in 3 spots

    Peter Lawrence -

    Removing the clip is very difficult !!

    arnoldoo -

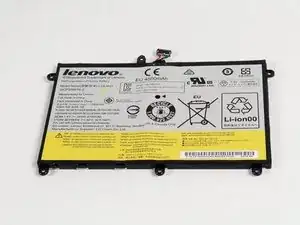

  6. L621xl1aMnbWSqWp

    • Once all of the wires are detached, carefully remove the battery and replace.

Abschluss

To reassemble your device, follow these instructions in reverse order.
