Einleitung
This guide explains to how safely locate and remove the battery from your Lenovo Yoga 2 13". It provides a list of the tools required, as well as the easiest way to remove the battery without causing damage.
For your safety, discharge your battery below 25% before disassembling your device. This reduces the risk of a dangerous thermal event if the battery is accidentally damaged during the repair. If your battery is swollen, take appropriate precautions.
Ersatzteile
-
-

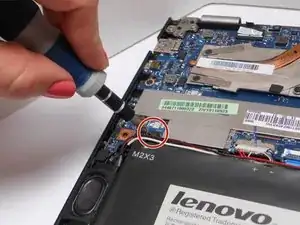

To remove the battery, use a Phillips head screwdriver to unscrew three 3.175 mm screws. One will be in the center of the battery (covered by a Lenovo sticker) and the other two are in the corners.
-
-
-

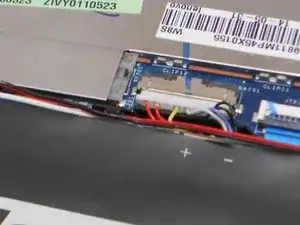

Disconnect the battery from the laptop by pulling the power connector towards the battery.
-
-
-

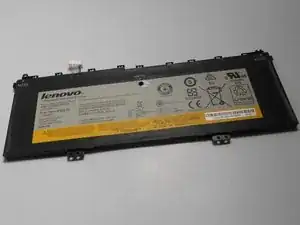

Once all wires are unattached to the rest of the computer, remove the battery from the laptop and replace.
-
To reassemble your device, follow these instructions in reverse order.
