Lenovo Yoga 2 13" Fan Replacement

Geschrieben von: Nichelle
  • Kommentare: 3
Lenovo Yoga 2 13" Fan Replacement

Schwierigkeitsgrad

Easy

Schritte

5

Zeitaufwand

10 Minuten

Einleitung

This guide will explain how to safely remove the fan from your Lenovo Yoga 2 13". It will provide a list of the tools needed as well as the easiest way to remove the fan.

  1. XD4wtJjM5hsBLPmW

    • Be sure to power off and unplug your device before you begin your repair.

    • With a T5 Torx screwdriver, remove eleven 6.35 mm screws from the back of the laptop.

  2. DxXLBCHOrBGW3ip3

    • Carefully separate back panel from the laptop.

  3. WEpoGs622ElRUSPr

    • Locate the fan near the top of the laptop.

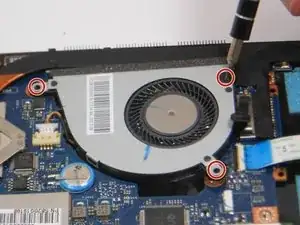

  4. fuhYofPKAC4LhndD

    • Carefully unscrew three 2.381mm screws using a Phillips head screwdriver.

  5. aLR1QyHTpWCQLaBJ

    • The fan is attatched to four wires and a white clip. Carefully slide the clip out of the yellow port to completely remove the fan.

Abschluss

To reassemble your device, follow these instructions in reverse order.
