Lenovo Yoga 2 13" Hinge Bracket Fix

Geschrieben von: Sven Meier
  • Kommentare: 17
Lenovo Yoga 2 13" Hinge Bracket Fix

Schwierigkeitsgrad

Moderate

Schritte

8

Zeitaufwand

10 - 25 Minuten

Einleitung

We have to open the back panel to be able to loosen the hinges, and then remove the display to completely remove them.

  1. XD4wtJjM5hsBLPmW

    • Be sure to power off and unplug your device before you begin your repair.

    • With a T5 Torx screwdriver, remove eleven 6.35 mm screws from the back of the laptop.

  2. DxXLBCHOrBGW3ip3

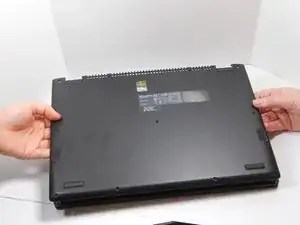

    • Carefully separate back panel from the laptop.

  3. VFFRaloV2jRxZG4p
    VFFRaloV2jRxZG4p
    nSEG1MEscE16tFTW
    iePnS6p1nephnh1c

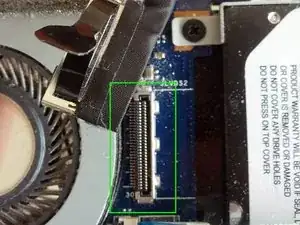

    • The video connector can be pulled out with the attached noose. Pull gently possibly supported by lifting the connector with a screwdriver.

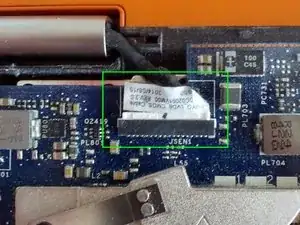

    • The other connector can be pushed out on the sides with the help of a screwdriver.

  4. BX6cT4iPUA4k13l6
    BX6cT4iPUA4k13l6
    mYnYsUJ1TZYm6vJm

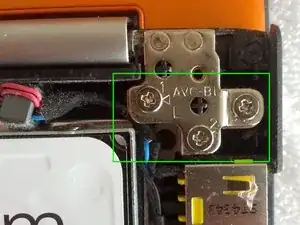

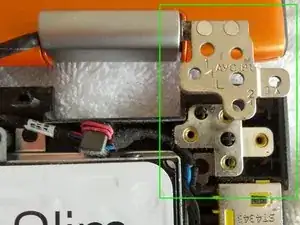

    • Unscrew three screws to detach the hinge from the body.

  5. ieQdDKQSLAEOmGKM
    ieQdDKQSLAEOmGKM
    32WIbKMMxfN4OsCP
    lsGEWHri2Xc6wLtM

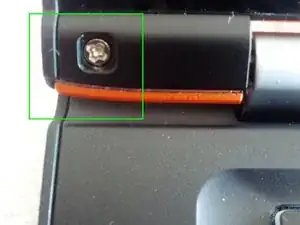

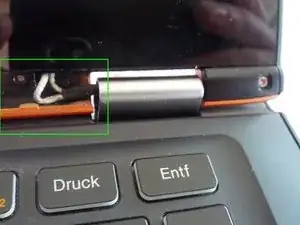

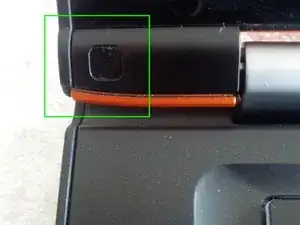

    • Peel out a small plastic cover, pull out center cover and unscrew left and right cover below the display.

  6. TYJkV6qFJjgV6Bm2
    TYJkV6qFJjgV6Bm2
    6Q5iLCFmoAkWMhMe
    nkHttkN1dkeLj3Pc

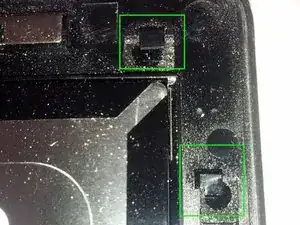

    • Once the two screws are loosened, the whole display can be shifted up - don't just pull it away.

    • On reassembly, put the display and cover together slightly shifted, and then gently slide the display back into position.

  7. cirOPWLtuCZbO2XE
    cirOPWLtuCZbO2XE
    kIPxYIsRoR1vHgyM
    Y3TARdEkV3oy4KAG

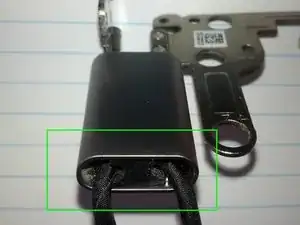

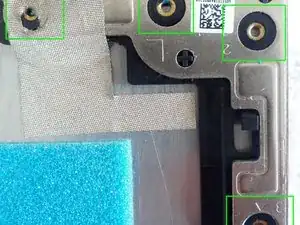

    • The hinge is attached to the lid with four screws.

    • A cable runs through each hinge, you can just pull out the small rubbery holder.

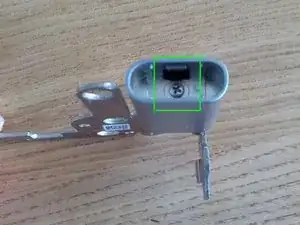

    • Loosen the screw below it to open the hinge.

  8. fQPaSRipcSoN2Pnf

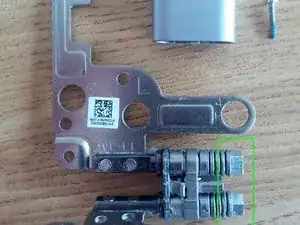

    • The stiffness of the hinge can be adjusted by loosening the small nuts. One eighth of a turn might be enough - you will have to repeat adjusting them until the hinge has the right stiffness.

    I wish I knew this before letting the hinge breaking the case! I can't seem to be able to publish a photo here, but here's how it looks like if your hinge is so stiff that it breaks part of the keyboard: https://ibb.co/M6LpQpS

    I had to add some PTFE lubricant on the hinges in addition to loosening the hinge nuts, or I wasn't even able to move the hinges with my bare hands.

    Stéphane L -

Abschluss

To reassemble your device, follow these instructions in reverse order.
