Lenovo Yoga 2 Pro Wireless Card Replacement

Geschrieben von: Thomas Simko
  • Kommentare: 3
Lenovo Yoga 2 Pro Wireless Card Replacement

Schwierigkeitsgrad

Easy

Schritte

5

Zeitaufwand

5 Minuten

Einleitung

The wireless module allows your computer to connect to the internet via WiFi.

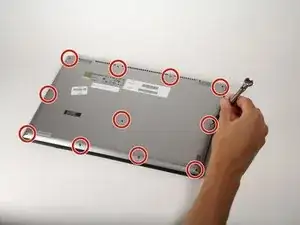

  1. xjANPYodNrNfb1lk

    • Please ensure that the laptop is turned off before beginning.

    • Using a T5 Torx screwdriver, remove the eleven 1/4" screws from the back of the laptop.

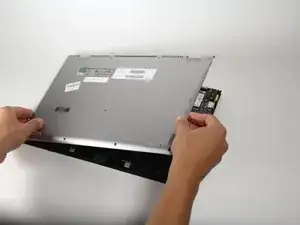

  2. yytBWOYVey5E3vYk

    • Gently lift off the back cover.

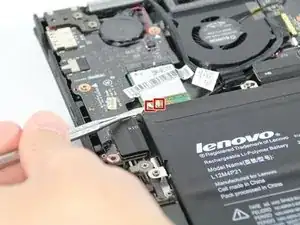

  3. rHWwlceDRdJJUcMO

    • Locate the wireless module above the battery in the top left corner of the computer.

    • Using a spudger, disconnect the two metal connectors by popping the metal piece up from the wireless module.

    As noted in the techdad guide to the same operation, remember that the black wire goes on the 'MAIN' connector and the white one goes the 'AUX' connector. Or just take a picture before any disassembly.

    brokkr -

  4. dCZ3lCDS3MtdXjFr

    • Remove the one 1/16” screw using a Phillips #00 screwdriver.

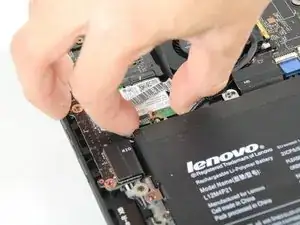

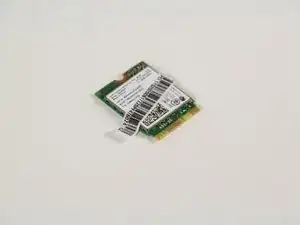

  5. DLQHhirWjRxp5r1L
    DLQHhirWjRxp5r1L
    HMBuV5mP6fTpbiNX

    • Slide the wireless module towards the battery and lift out of the laptop.

Abschluss

To reassemble your device, follow these instructions in reverse order.

Tinte & Feder

Thomas Simko

Mitglied seit: 01/10/15

2444 Reputation

2 Kommentare

Great info on this

Frank Kristoffersen -

Be careful, there is a very restrictive Whitelist in the BIOS for potential replacements, unofficial support available via their forums;

(tl;dr - go with Intel AC 7260 - m.2 connection)

https://forums.lenovo.com/t5/Lenovo-Yoga...

Jamie Haustead -
