Einleitung

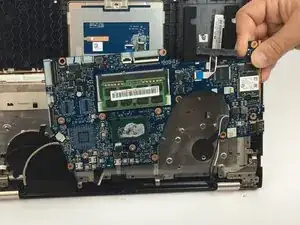

To replace the motherboard of the Lenovo Yoga 3 14, you need a PH0 screwdriver, a spudger, and tweezers. Some parts require you to use your hands to disconnect some components from the motherboard.
-
-
Insert the plastic opening tool into the long side of the case backing and slide it the entire length of the laptop.
-
Gently lift the backing off the laptop.
-
-
-
Gently lift the battery and use the plastic opening tool to remove the battery's connection to the laptop.
-
-
-
Remove the two 3mm screws using the PH#0 screwdriver head.
-
Unscrew the three 4mm screws using PH#1 (the larger screws do not come off the are attached to the housing unit of the cooling fan).
-
-
-

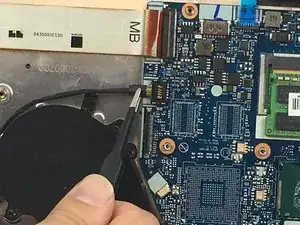

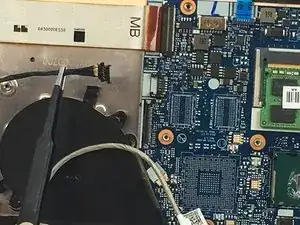

Use tweezers to disconnect the fan.
-

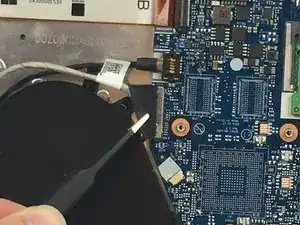

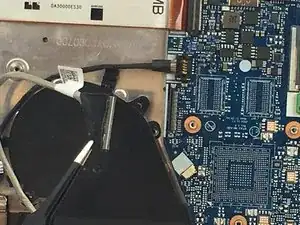

Unwrap the white and black wires from around the fan case.
-
-
-

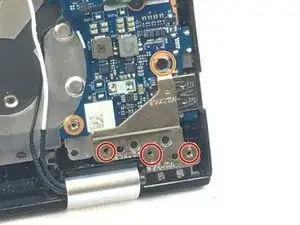

Unscrew the three 3mm screws from the bottom right hinge using a PH0 screwdriver.
-
Remove the one 4mm screw that connects the hinge to the motherboard.
-
-
-

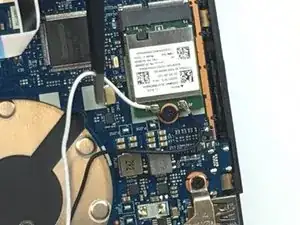

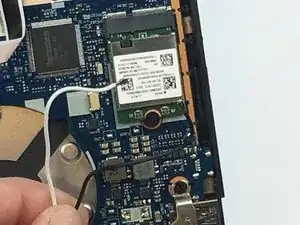

Using the tweezers, disconnect the white and black cables connecting the motherboard to the screen.
-
-
-

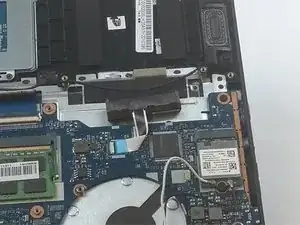

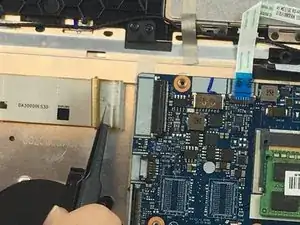

Lift the plastic clip connecting the USB port cable to the motherboard.
-
Gently use tweezers to remove the cable.
-
-
-

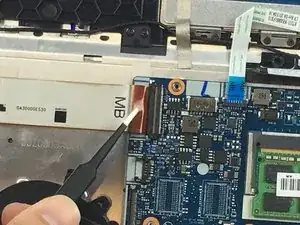

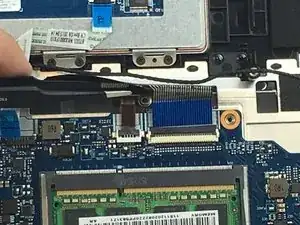

Using tweezers, undo the plastic clip holding the ribbon in place and gently pull the ribbon to remove it.
-
-
-

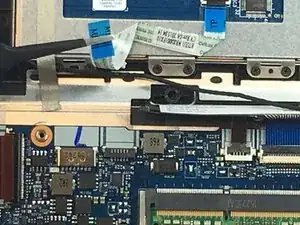

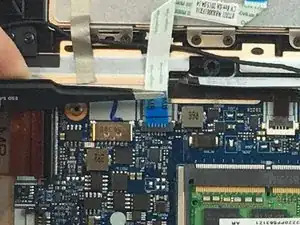

Gently lift the clip holding down the blue ribbon connection the touch pad to the motherboard. Use tweezers to disconnect the ribbon.
-
-
-

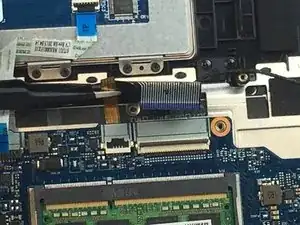

Undo the clips holding the blue and brown ribbon to the motherboard. Use tweezers to gently remove both ribbons.
-
-
-
Place one hand on the hard drive and gently gripping the black connector, pull it away from the hard drive to disconnect.
-
To reassemble your device, follow these instructions in reverse order.
7 Kommentare
One assumes new thermal paste is required when re-attach the van?
Do you mean the fan? If I remember correctly, there was no thermal paste attaching the fan to the motherboard or the surrounding components. It was just housed within the casing attached via screws as shown in the images.
Ryan,
Thank you for your reply.
Yes I mean the fan, sorry. Step 5 you remove the 3 screws for what I assume is the heat sink. I was asking about that as it looks like the the processor is under there and seems to have thermal paste on the top.
Chris,
I see what you mean. It's on that left side of the housing. It does appear there is thermal paste there.
I'm going to be honest with you. We did this in class with non-functional devices, as you could probably tell since we had no hard drive in ours. We did not have access to thermal paste nor was it necessary for us to reapply any since the laptop didn't work from the start. I'm sorry if we provide no guide on how to reapply the thermal paste and I wish you the best of luck in doing it! I am sure there are some other guides on here that include working with thermal paste, if you are not already familiar with it.
Ryan,
Thank you for your reply. All makes sense. Not used thermal paste for years, never had to remove a heat sink for ages.
I can work that out based on the originally paste. Shame it has to be removed though as I’m actually replacing the keyboard\palm rest. The machine is not overheating so I’d prefer to leave well alone if I don’t have to disturb it. Actually, looking at the pictures, it looks like I could just remove the fan screws and leave the heat sink in place,
Thank you for the guide though, good to see it in pictures.
Chris
