Einleitung

If you need to replace your RAM card for any reason, this guide will show the steps you need for replacement.

  1. u2F3gjgsGhQmKc3d
    • Remove the eleven 6mm T5 Torx screws from the back case.

  2. wSXYqHT5HFLwRP42
    wSXYqHT5HFLwRP42
    21Ogsq5AaUG2O1UZ
    yGYRq4pLQDPs13Hv
    • Insert the plastic opening tool into the long side of the case backing and slide it the entire length of the laptop.

    • Gently lift the backing off the laptop.

  3. 6cirM5JKOKYThNcF
    6cirM5JKOKYThNcF
    ixLZowYnDwN22WNW

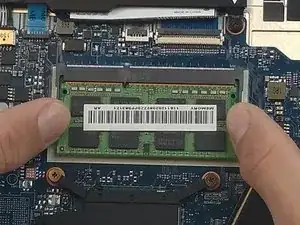

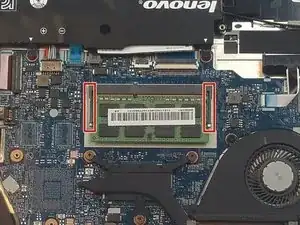

    • Using your thumbs, gently push the two clips away from the RAM.

  4. sfIbV2UKId2MsApO
    sfIbV2UKId2MsApO
    psSrFwYXogLBVBrM

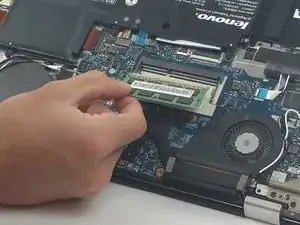

    • After the clips are moved, the RAM will simply pop up.

    • Gently remove the ram.

Abschluss

To reassemble your device, follow these instructions in reverse order.
