The tools needed to replace the USB Port in the Lenovo Yoga 3 Pro are T5 Torx screwdriver, PH0, and a spudger.

  1. u2F3gjgsGhQmKc3d
    • Remove the eleven 6mm T5 Torx screws from the back case.

  2. wSXYqHT5HFLwRP42
    wSXYqHT5HFLwRP42
    21Ogsq5AaUG2O1UZ
    yGYRq4pLQDPs13Hv
    • Insert the plastic opening tool into the long side of the case backing and slide it the entire length of the laptop.

    • Gently lift the backing off the laptop.

  3. BhVJjGA1lwMsNKLW
    • Remove the four 3mm PH#0 screws surrounding the battery.

  4. MQwkMKJXXlHDgssA
    MQwkMKJXXlHDgssA
    vFxtypmSkDByqaP2
    yEiUYUiJe12vU1CP
    • Gently lift the battery and use the plastic opening tool to remove the battery's connection to the laptop.

  5. 1kSLnfi2oUUVQZRN
    1kSLnfi2oUUVQZRN
    sajtFmEXeHEO6TO3

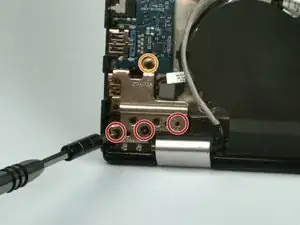

    • Take out the 3, 3mm screws from the left hinge using the PH0 head.

    • Remove the 1, 4mm screw that connects the hinge to the USB port.

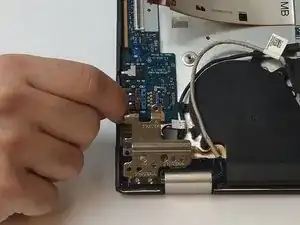

    • Carefully lift the hinge enough to separate it from the USB port.

  6. hfhOHyhRqRRnjYQu
    hfhOHyhRqRRnjYQu
    svhhEt51NNdknXQP

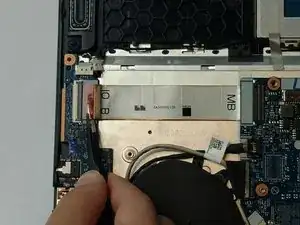

    • Using the tweezers, carefully lift the black clip and remove the electrical ribbon.

  7. piG2UKTwITbF4SJd
    • The USB port is held in place by plastic pegs. Gently lift up to remove the USB port from the laptop.

Abschluss

To reassemble your device, follow these instructions in reverse order.
