Lenovo Yoga 3 Pro SSD Replacement

Geschrieben von: Federico LopezCasildo Jr
  • Kommentare: 7
Lenovo Yoga 3 Pro SSD Replacement

Schwierigkeitsgrad

Easy

Schritte

8

Zeitaufwand

4 Minuten

Einleitung

Accessing and replacing the Solid State Drive (SSD) is useful if it has been damaged or if you wish to swap it out with another one for extra storage space. Exercise extreme caution while removing and handling the drive. Although the drive is fairly sturdy, even a small dent can permanently damage it.

Note: The Yoga 3 Pro requires a M.2 SATA drive. NVMe SSDs will not work for the device.

  1. L4UY2Ehcpga5T6FU

    • Before opening your laptop, make sure it is powered off.

    • Remove the ten 3.3 mm screws from the base cover using a T5 Torx screwdriver.

  2. FhZsNHb4GEEZ1old

    • Slide the plastic opening tool between the base cover and the frame to pry open the computer.

    • Slowly go around the entire perimeter of the computer until all edges are loose.

    • Make sure the plastic opening tool doesn't go too far into the device.

  3. 2ManvTSsWRrd1BvD

    • Remove the panel and place it in a safe location.

  4. Zu2hXZW5EjLqRLkC

    • Remove the six 3.5 mm screws surrounding the battery using a Phillips 00 screwdriver.

    Hi

    I have a Lenovo Yoga 3 pro - 1370

    I take off the SSD without remove the battery. Is this a problem?

    TKS

    Stanley

    Stanleyslaw Castro -

  5. SeLo6RSnCK6ciITI

    • Using either tweezers or your fingers, disconnect the black battery cable by pinching either side of the connector and pulling towards the battery.

  6. Mb2uUJk5vWNA46Mp

    • Carefully lift and remove the battery.

    If you have the right tools, this is really straightforward to do. Took me about 10 minutes. The instructions are very accurate.

    Kevin Lawless -

    Regarding the battery connector, the male plug is attached to the battery wiring (you will know what I mean when you look at it) and the female socket is attached to the logic board. There are small ridges on either side of the plug that can be grasped with fingernails to gently tease the plug out of the socket.

    Ron Westfall -

  7. rmZ2PPIYYnnBR4Dy

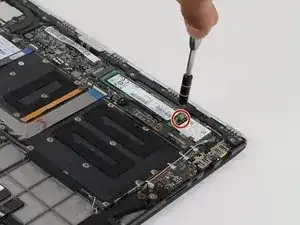

    • Remove the 1.5 mm screw using the Philips 00 screwdriver.

  8. 2JaPXd4TXibTuxph
    2JaPXd4TXibTuxph

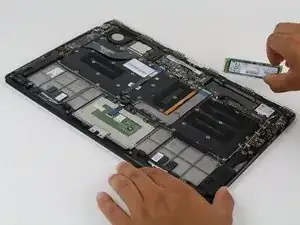

    JdlUbR6GVGOMIvTo

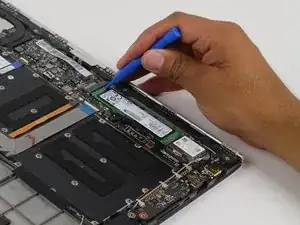

    • Use the plastic opening tool to remove the hard drive/SSD.

Abschluss

To reassemble your device, follow these instructions in reverse order.
